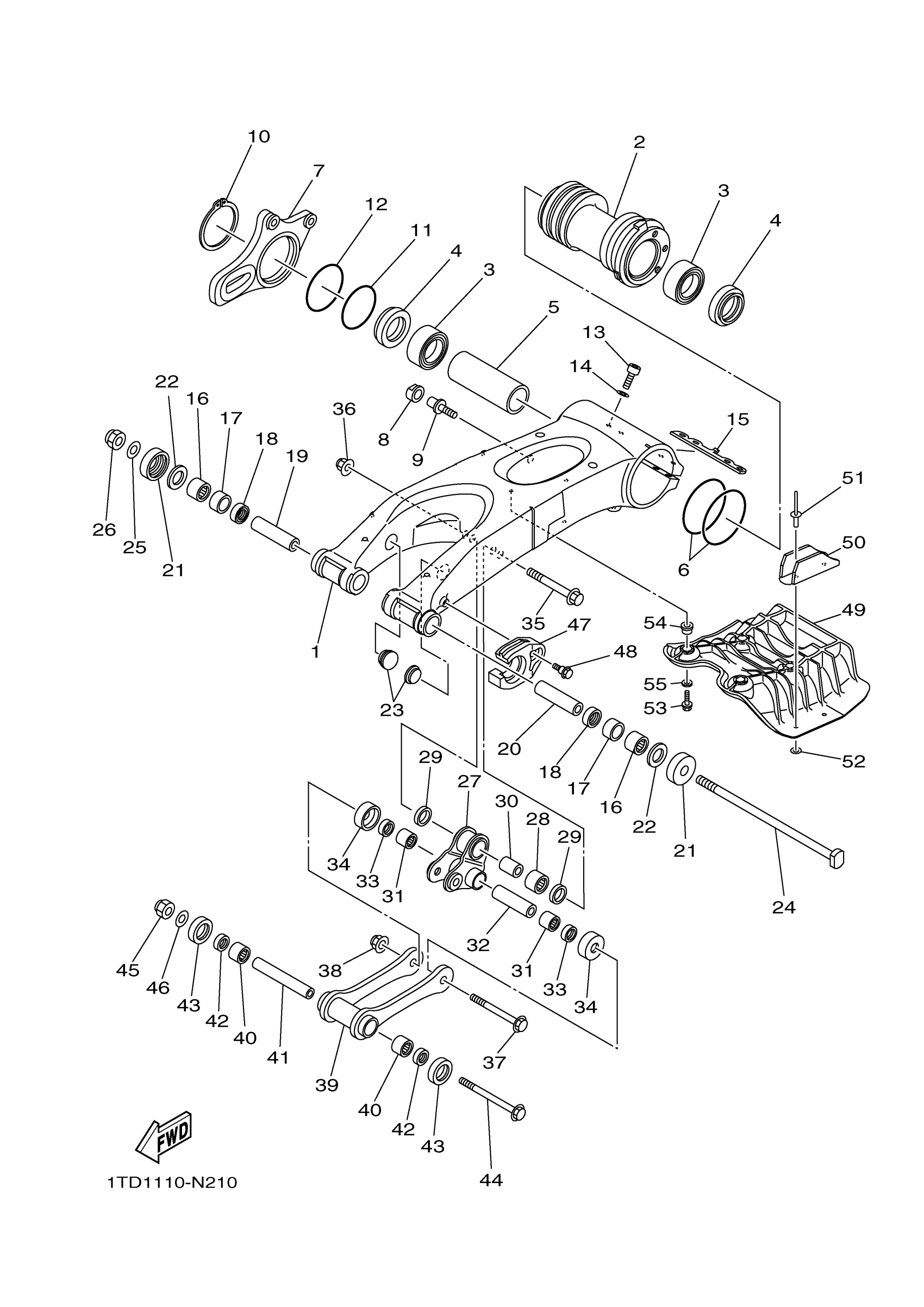

Yamaha YFZ45YSXKL (YFZ450R) BW2F 2019 REAR ARM Diagram
#
14
.. WASHER, PLATE
92990-08600-00
Unavailable
16
BEARING, CYLINDRICAL (23X)
93317-32231-00
Unavailable
17
BUSH, SOLID (23X)
90380-22111-00
Unavailable
18
OIL SEAL (23X)
93106-22019-00
Unavailable
19
COLLAR
90387-16027-00
Unavailable
20
BUSH 2
2XJ-22124-00-00
Unavailable
21
COVER, THRUST 2
4X7-22129-00-00
Unavailable
22
WASHER
3YF-22149-00-00
Unavailable
23
PLUG
90338-23004-00
Unavailable
24
SHAFT, PIVOT
18P-22141-00-00
Unavailable
25
WASHER, PLATE
90201-16018-00
Unavailable
26
NUT, SELF-LOCKING
90185-16002-00
Unavailable
27
ARM, RELAY
1TD-F217A-00-00
Unavailable
28
BEARING, CYLINDRICAL(4BF)
93315-32056-00
Unavailable
29
OIL SEAL
93109-20001-00
Unavailable
30
COLLAR
90387-12043-00
Unavailable
31
BEARING
93315-31758-00
Unavailable
32
COLLAR
90387-12041-00
Unavailable
33
OIL SEAL
93109-17071-00
Unavailable
34
COVER, THRUST 2
55K-22129-00-00
Unavailable
35
BOLT, FLANGE
90105-12064-00
Unavailable
36
NUT, SELF-LOCKING
95602-12200-00
Unavailable
37
BOLT, FLANGE
90105-12065-00
Unavailable
38
NUT, SELF-LOCKING
95602-12200-00
Unavailable
39
ROD, CONNECTING 1
1TD-F217F-00-00
Unavailable
40
BEARING
93315-31758-00
Unavailable
41
COLLAR
90387-12042-00
Unavailable
42
OIL SEAL
93109-17071-00
Unavailable
43
COVER, THRUST 2
55K-22129-00-00
Unavailable
44
BOLT, FLANGE
90105-12066-00
Unavailable
45
NUT, U
95612-12100-00
Unavailable
46
WASHER, PLATE
90201-12032-00
Unavailable
47
SEAL, GUARD
18P-22151-10-00
Unavailable
48
BOLT
90109-06172-00
Unavailable
49
GUARD 1
18P-22361-00-00
Unavailable
50
GUARD, CHAIN
5TG-22153-10-00
Unavailable
51
RIVET, BLIND(8CH)
90267-47187-00
Unavailable
52
WASHER, PLATE
90201-04027-00
Unavailable
53
BOLT, FLANGE
95817-06025-00
Unavailable
54
COLLAR
90387-06151-00
Unavailable
55
WASHER, PLATE
90201-06033-00
Unavailable
