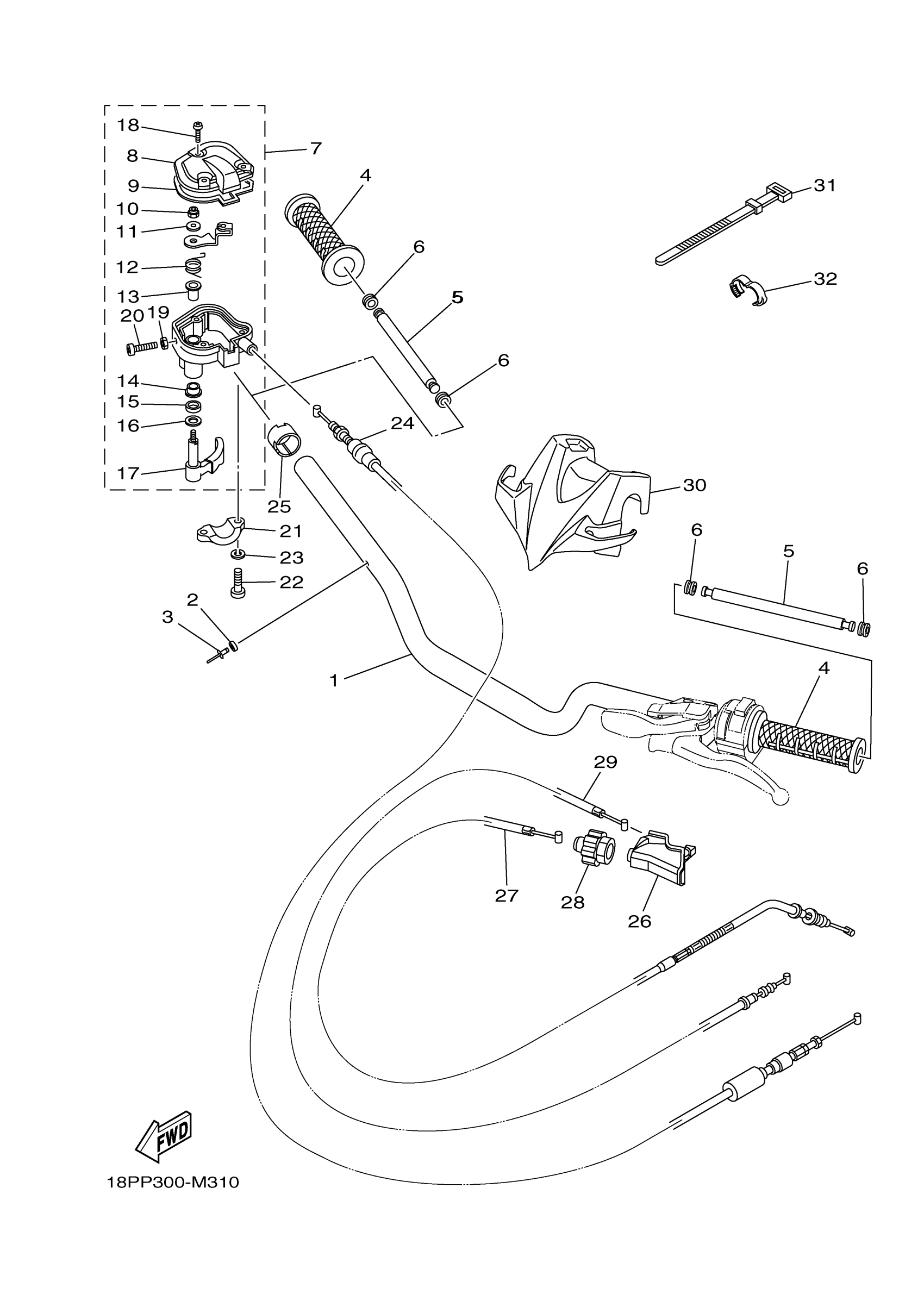

Yamaha YFZ45YSXJL (YFZ450R) BW27 2018 STEERING HANDLE CABLE Diagram

#

Description
Price

1

HANDLEBAR

5D3-26111-13-00

Unavailable

2

COLLAR

90387-02001-00

Unavailable

3

RIVET, BLIND

90267-24143-00

$8.49

4

GRIP

5FU-F6241-10-00

$17.49

5

WEIGHT

18P-2622H-00-00

$30.99

6

GROMMET

90480-11006-00

$4.41

7

THROTTLE LEVER ASS

1S3-26250-02-00

$128.99

8

CAP, GEAR

1S3-2628F-00-00

$17.49

9

GASKET

1S3-2628G-00-00

$10.99

10

NUT, U

95617-05100-00

$9.49

11

. WASHER, SPECIAL

53L-83909-00-00

Unavailable

12

SPRING

1NV-26304-00-00

$11.99

13

COLLAR

1NV-26259-01-00

$7.99

14

COLLAR

1NV-2625K-00-00

$6.99

15

OIL SEAL (9X15X4-256)

93104-09025-00

$7.49

16

WASHER

1NV-26129-00-00

Unavailable

17

LEVER, THROTTLE

1S3-2625G-01-00

Unavailable

18

SCREW(3HE)

90149-04278-00

Unavailable

19

NUT, HEXAGON SMALL

95317-05700-00

Unavailable

20

SCREW, PAN HEAD

98517-05020-00

Unavailable

21

HOLDER, LEVER LOWER 1

1S3-82913-00-00

Unavailable

22

SCREW, PAN HEAD

98517-05020-00

Unavailable

23

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

24

CABLE, THROTTLE 1

18P-26311-00-00

Unavailable

25

COLLAR

1UY-26259-00-00

Unavailable

26

COVER, HANDLE LEVER 1

5TG-26372-00-00

Unavailable

27

CABLE, CLUTCH

18P-26335-00-00

Unavailable

28

BOOT, CABLE

1C3-26342-50-00

Unavailable

29

WIRE, BRAKE 1

18P-26341-00-00

Unavailable

30

PROTECTOR, HANDLEBAR

18P-26124-02-00

Unavailable

31

BAND, SWITCH CORD

437-83936-01-00

Unavailable

32

CLAMP

90464-16001-00

Unavailable
