Description

Price

1

OIL PUMP ASSY

18P-13300-00-00

$162.27

2

ROTOR ASSY 2

5TA-13320-00-00

$39.26

3

PIN, DOWEL(1HX)

93603-16219-00

$4.89

4

CIRCLIP(1WG)

93440-10153-00

$1.95

5

PIN, DOWEL

99530-08012-00

$4.89

6

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$3.56

7

SHAFT, IDLE GEAR

2S2-13342-00-00

$19.47

8

SCREW

90149-06068-00

$3.13

9

GEAR, OIL PUMP IDLE

18P-13341-00-00

$41.49

10

CIRCLIP(10Y)

99009-12400-00

$2.87

11

WASHER PLATE 164185720000

90201-12166-00

$5.86

12

HOUSING, STRAINER

18P-13412-01-00

$24.95

13

STRAINER, OIL

18P-13411-00-00

$13.97

14

BOLT(J17)

91312-06035-00

$2.21

15

PIN, DOWEL(3VD)

99530-10114-00

$2.13

16

STRAINER 2

18P-13421-00-00

Unavailable

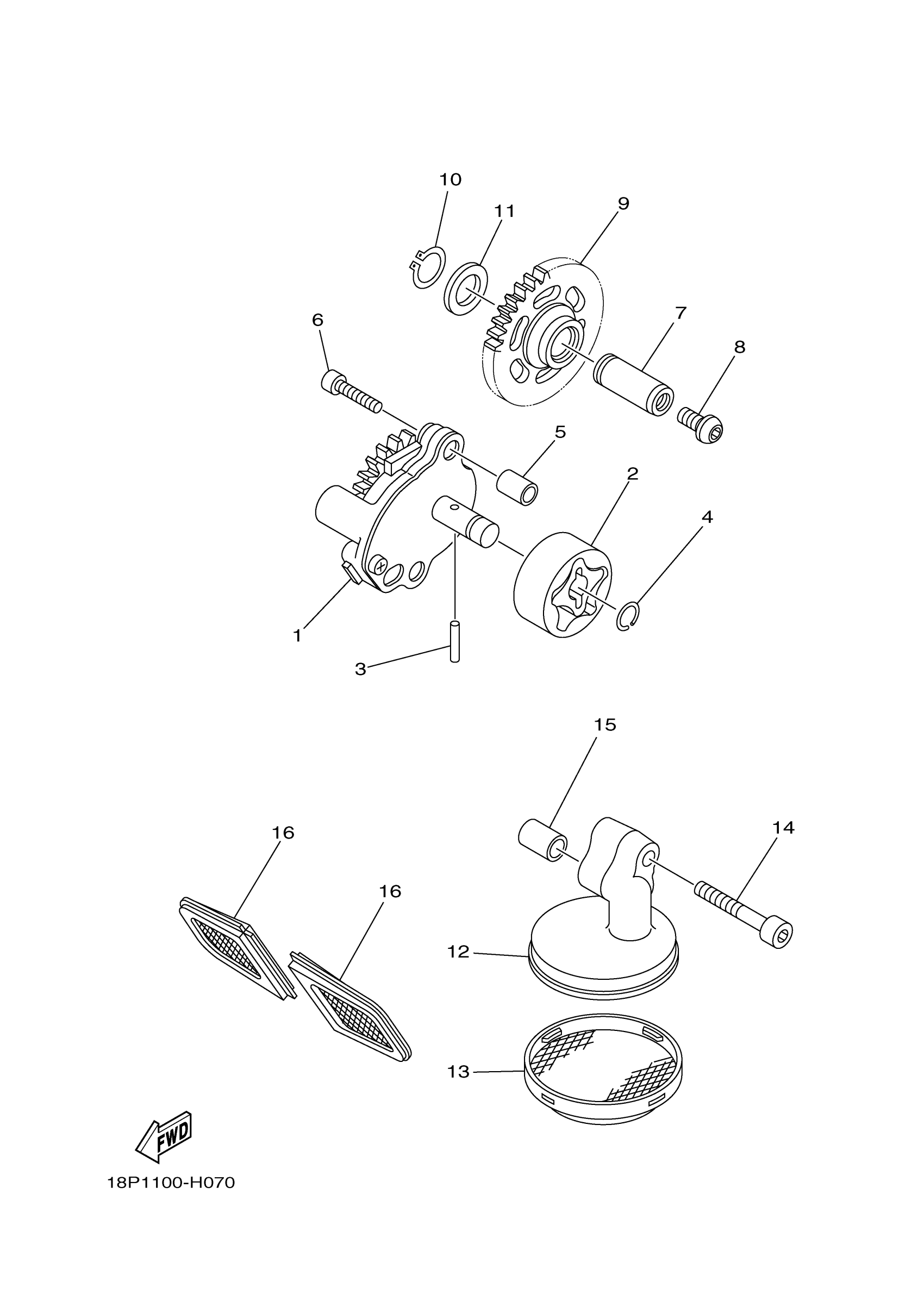

Yamaha YFZ45YSXHL (YFZ450) BW21 2017 OIL PUMP Diagram
