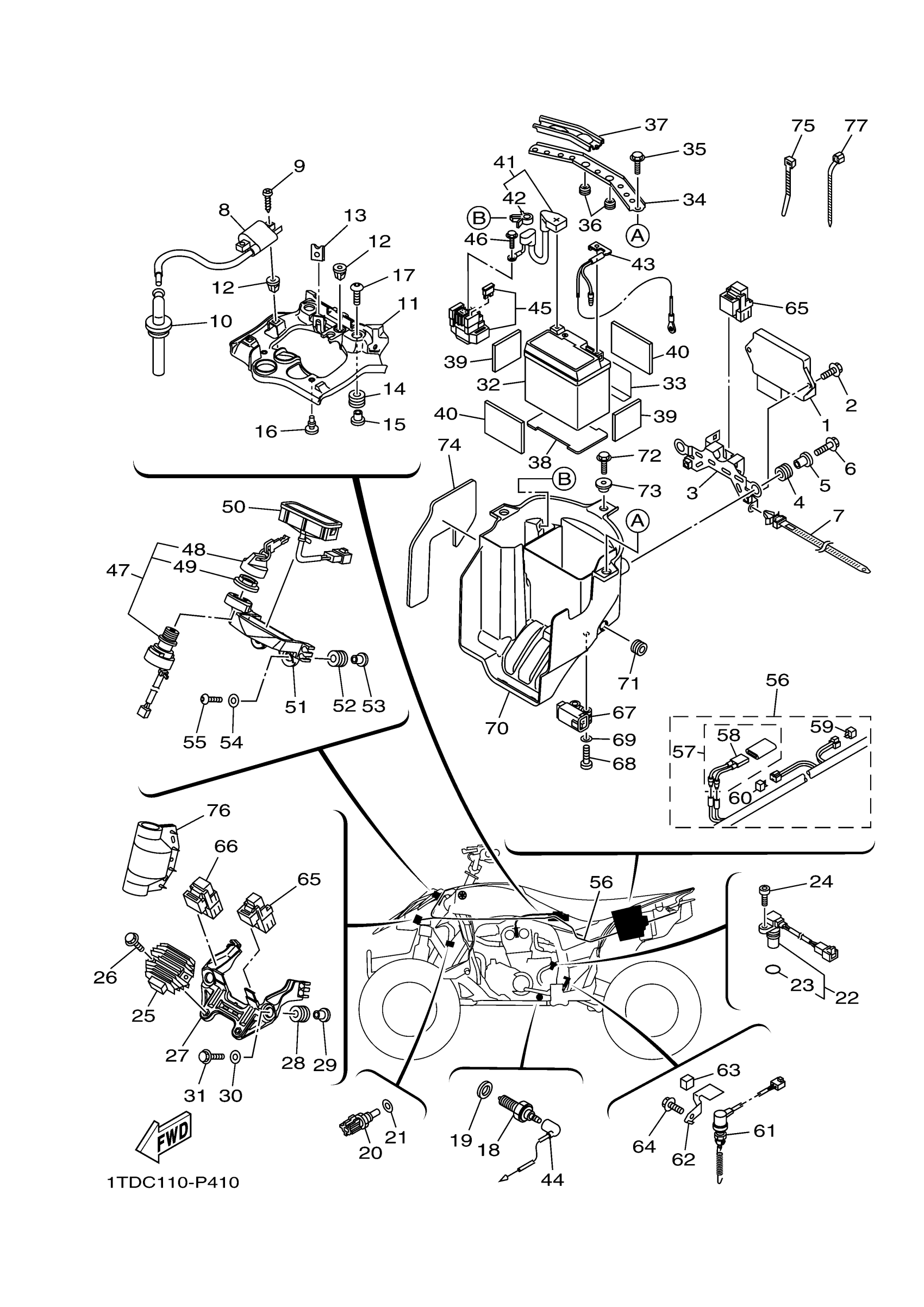

Yamaha YFZ45YSXHL (YFZ450) BW21 2017 ELECTRICAL 1 Diagram
#
1
ENGINE CONTROL UNI
1TD-8591A-10-00
Unavailable
3
BRACKET, UNIT
18P-85991-00-00
Unavailable
16
PLUG
90338-05008-00
Unavailable
17
BOLT,HEX. SOCKET BUTTON
90111-06084-00
Unavailable
18
NEUTRAL SWITCH ASSY
3GB-82540-01-00
Unavailable
19
GASKET (1KH,1.0T)
90430-10148-00
Unavailable
20
THERMOSENSOR ASSY
5YP-85790-00-00
Unavailable
21
GASKET(2GH)
90430-12202-00
Unavailable
22
SENSOR, SPEED
18P-83755-01-00
Unavailable
23
O-RING
4D9-81168-00-00
Unavailable
24
BOLT(3MA)
91312-06016-00
Unavailable
25
RECTIFIER & REGULATOR ASSY
5BN-81960-00-00
Unavailable
27
STAY, REGULATOR
18P-87208-00-00
Unavailable
28
GROMMET (4N0)
90480-10289-00
Unavailable
29
COLLAR
90387-06204-00
Unavailable
30
WASHER, PLATE
90201-06078-00
Unavailable
31
BOLT, FLANGE
95822-06025-00
Unavailable
32
YTZ7S HE YUASA BATTERY - FA
YTZ-7SHE0-00-00
Unavailable
33
SEAT, BATTERY
18P-82122-00-00
Unavailable
34
BRACKET, BATTERY
18P-82128-00-00
Unavailable
35
BOLT, FLANGE
90105-06084-00
Unavailable
36
PLUG(2GU)
90338-12192-00
Unavailable
37
COVER, BATTERY
18P-82129-00-00
Unavailable
38
SEAT, BATTERY
4D3-82122-00-00
Unavailable
39
DAMPER
5MP-21747-00-00
Unavailable
40
PLATE, FOOTREST
4HC-27415-00-00
Unavailable
41
WIRE, PLUS LEAD
18P-W8211-10-00
Unavailable
42
CLAMP
90464-12001-00
Unavailable
43
WIRE, MINUS LEAD
18P-82116-00-00
Unavailable
44
WIRE, LEAD
18P-82541-00-00
Unavailable
45
STARTER RELAY ASSY (RC19-084A)
18P-81940-00-00
Unavailable
46
BOLT, FLANGE
95022-06008-00
Unavailable
47
MAIN SWITCH ASSY
4SH-82510-01-00
Unavailable
48
CAP, KEY
3HN-82579-00-00
Unavailable
49
NUT, MAIN SWITCH
3HN-82569-00-00
Unavailable
50
PILOT LIGHT ASSY
18P-83530-01-00
Unavailable
51
BRACKET, INDICATOR
18P-8361L-00-00
Unavailable
52
GROMMET (4N0)
90480-10289-00
Unavailable
53
COLLAR
90387-06204-00
Unavailable
54
WASHER, PLATE
90201-06078-00
Unavailable
55
BOLT, BUTTON HEAD
92012-06025-00
Unavailable
56
WIRE HARNESS ASSY
1TD-82590-00-00
Unavailable
57
CIRCUIT BREAKER ASSY
3D5-82180-00-00
Unavailable
58
THERMO SWITCH ASSY
3D5-82560-00-00
Unavailable
59
DIODE ASSY
4WA-81980-00-00
Unavailable
60
DIODE ASSY
3WP-81980-00-00
Unavailable
61
STOP SWITCH ASSY
18P-82530-10-00
Unavailable
62
COVER 1
18P-8246B-10-00
Unavailable
63
DAMPER, LOCATING 4
1TD-2177N-00-00
Unavailable
64
BOLT, FLANGE
95022-06010-00
Unavailable
65
RELAY ASSY
1TP-81950-00-00
Unavailable
66
RELAY ASSY
5DM-81950-01-00
Unavailable
67
SENSOR, LEAN ANGLE
5PS-82576-02-00
Unavailable
68
BOLT
91312-04025-00
Unavailable
69
WASHER, PLATE
90201-04030-00
Unavailable
70
BOX, BATTERY 1
18P-8212B-00-00
Unavailable
71
GROMMET
90480-12007-00
Unavailable
72
BOLT, FLANGE
90105-06084-00
Unavailable
73
COLLAR
90387-06153-00
Unavailable
74
INSULATOR
18P-8254E-00-00
Unavailable
75
CLAMP
90465-10098-00
Unavailable
76
COVER
5RU-8252U-00-00
Unavailable
77
CLAMP(4FM)
90464-15195-00
Unavailable
