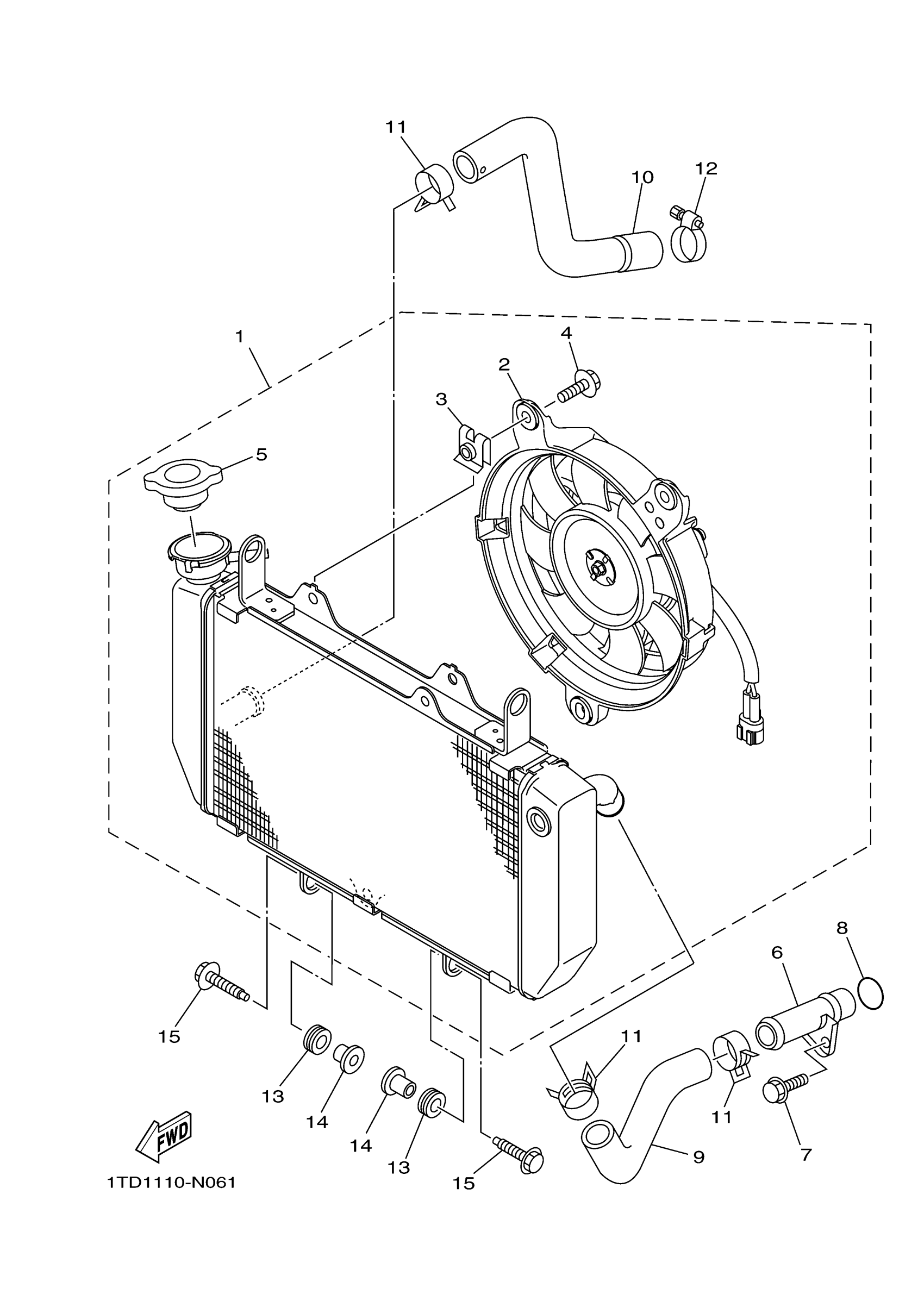

Yamaha YFZ45YSSTW (YFZ450R SE) DF1F 2026 RADIATOR & HOSE Diagram

#

Description
Price

1

RADIATOR ASSY

1TD-E2460-04-00

Unavailable

2

. BLOWER ASSY

1TD-E2405-02-00

Unavailable

3

PLATE

1PE-E2535-00-00

$3.85

4

BOLT, BLOWER HOLDING

1PE-E2675-00-00

$2.91

5

CAP, RADIATOR

1XD-E2462-00-00

$15.49

6

PIPE 1

5TG-12481-00-00

$27.99

7

BOLT, FLANGE

95022-06012-00

$3.29

8

O-RING (5U8)

93210-16500-00

$7.49

9

HOSE 1

1TD-E2576-00-00

$7.99

10

HOSE 2

1TD-E2577-00-00

$8.99

11

CLIP (10V)

90467-23067-00

$7.49

12

HOSE CLAMP ASSY

90450-32015-00

$17.99

13

GROMMET (1E6)

90480-15058-00

$8.49

14

COLLAR 437216330000

90387-07391-00

Unavailable

15

BOLT, WITH WASHER

90119-06181-00

$8.49
