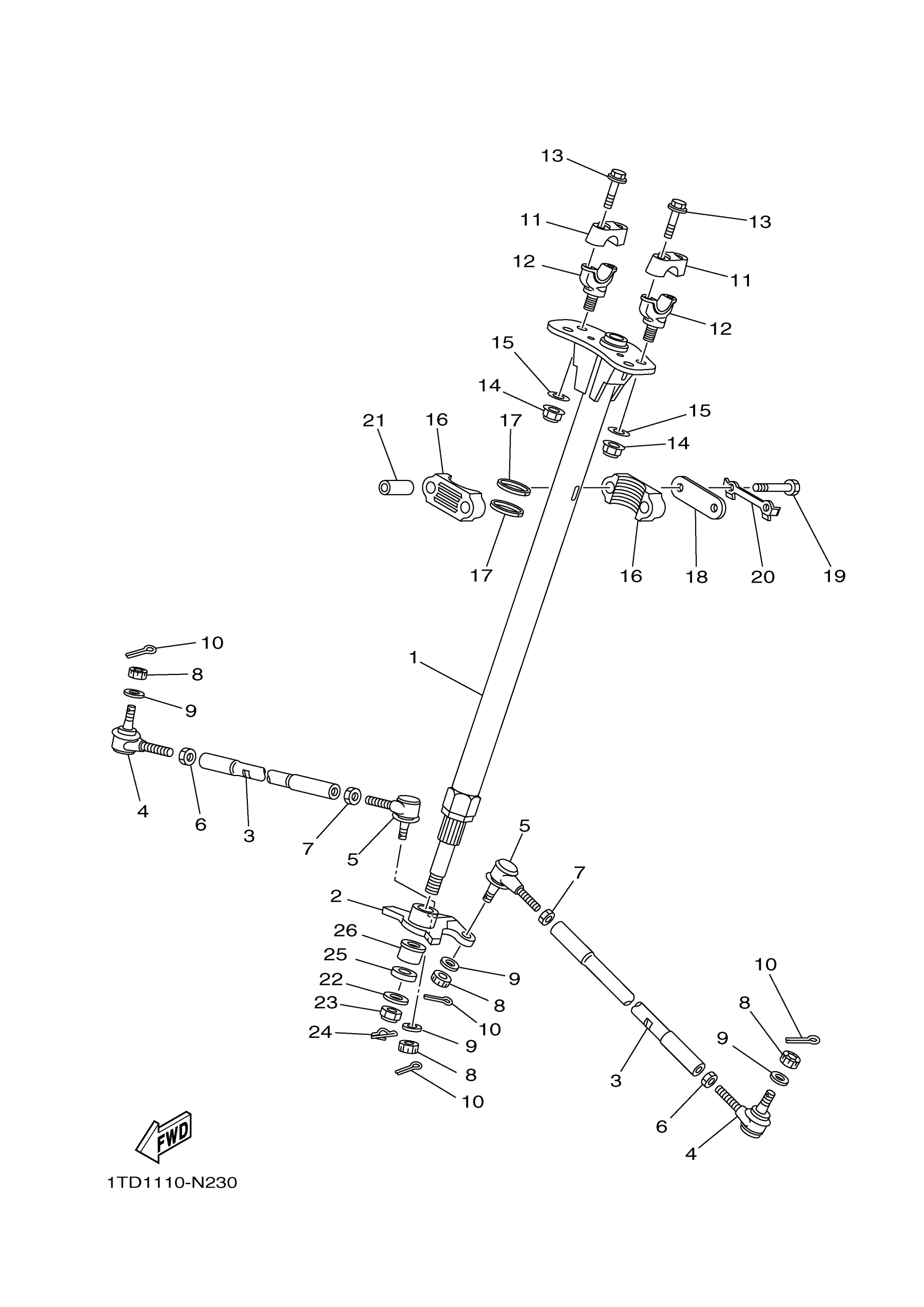

Yamaha YFZ45YSSTG (YFZ450R SE) DF1C 2026 STEERING Diagram

#

Description
Price

1

COLUMN, STEERING 2

1TD-F3813-00-00

Unavailable

2

ARM, PITMAN

1TD-F3816-00-00

Unavailable

3

ROD, TIE

1TD-23831-00-00

$58.99

4

JOINT, UNIVERSAL 1

1S3-23841-20-00

$64.99

5

JOINT, UNIVERSAL 2

1S3-23845-20-00

$64.99

6

NUT, HEXAGON SMALL

95317-12700-00

$8.49

7

NUT (821-23834-00)

90170-12054-00

$8.49

8

NUT, CASTLE

90171-10001-00

$7.49

9

WASHER (25G)

90209-10229-00

$7.49

10

PIN, COTTER

91490-20025-00

$1.99

11

HOLDER, HANDLE UPPER

18P-23441-00-00

$30.99

12

HOLDER, HANDLE LOWER

18P-23442-10-00

$90.99

13

BOLT, FLANGE

90105-08154-00

$7.49

14

NUT, SELF-LOCKING

95602-12200-00

$4.46

15

WASHER, PLATE

90201-12034-00

$7.49

16

PLANE BEARING, STE

37S-F3812-00-00

Unavailable

17

OIL SEAL

93112-31800-00

Unavailable

18

BRACKET, STEERING

1PE-F3868-00-00

Unavailable

19

BOLT, WITH WASHER

90119-08015-00

Unavailable

20

WASHER, LOCK 1

1UY-23894-01-00

Unavailable

21

COLLAR(85G)

90387-106T4-00

Unavailable

22

WASHER, PLATE

90201-14021-00

Unavailable

23

NUT, SELF-LOCKING

90185-14009-00

Unavailable

24

PIN, COTTER

91490-20035-00

Unavailable

25

COLLAR(2GU)

90387-176R6-00

Unavailable

26

COLLAR

90387-17013-00

Unavailable
