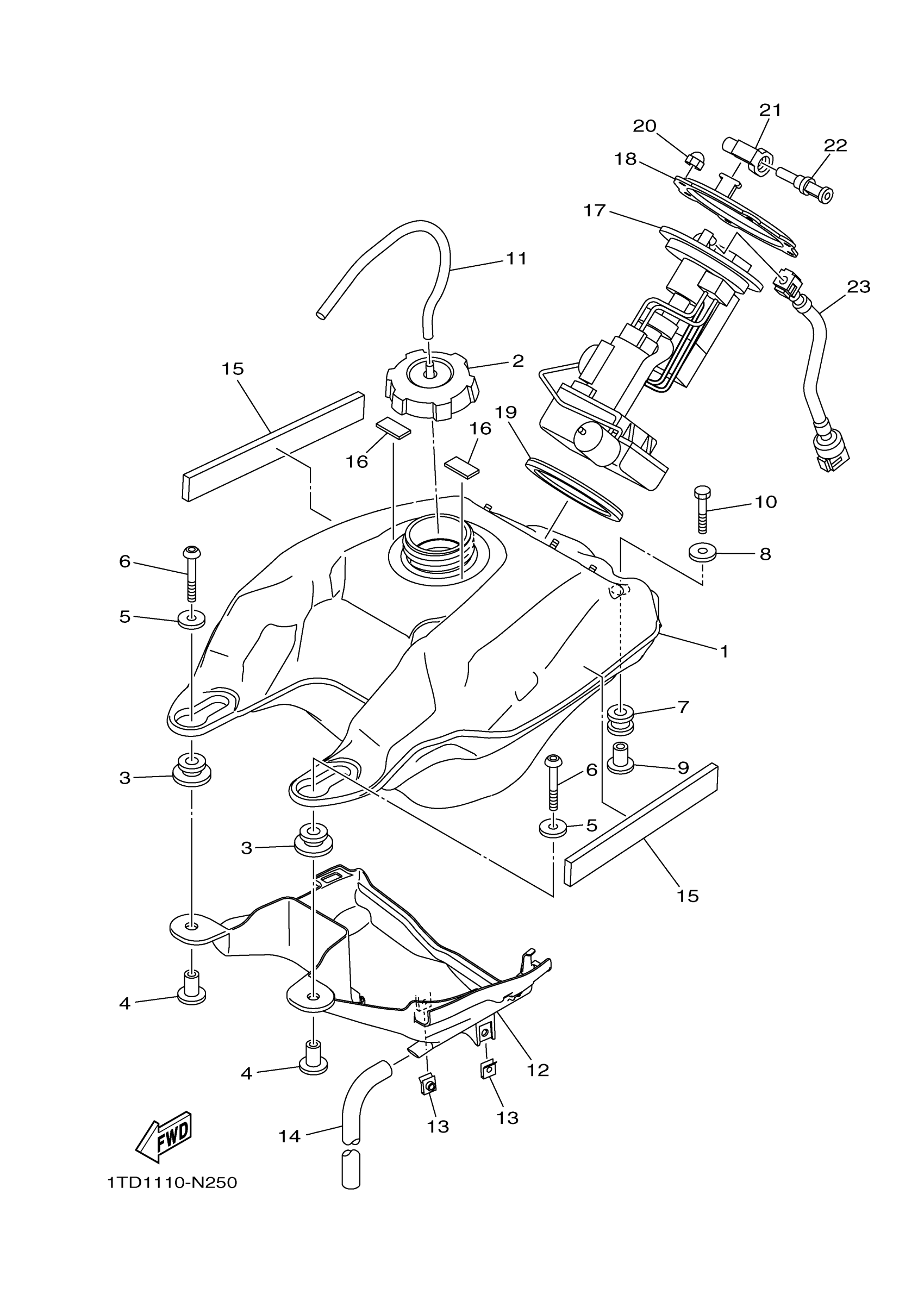

Yamaha YFZ45YSSTG (YFZ450R SE) DF1C 2026 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

1TD-F4110-00-00

$212.99

2

CAP ASSY

5KM-24610-00-00

$61.99

3

GROMMET

90480-18016-00

$8.49

4

COLLAR (29U)

90387-066H4-00

$8.49

5

WASHER, PLATE(1JK)

90201-064K6-00

$9.49

6

BOLT, BUTTON HEAD

92012-06040-00

$3.28

7

GROMMET (4V1)

90480-18290-00

$8.49

8

WASHER, PLATE(1JK)

90201-064K6-00

$9.49

9

COLLAR (36R)

90387-066J1-00

$8.49

10

BOLT, FLANGE

95812-06030-00

$8.49

11

HOSE (L340)

90445-08684-00

$4.29

12

DAMPER, PLATE 1

1TD-F414H-00-00

$20.99

13

NUT, SPRING(4ES)

90183-06069-00

Unavailable

14

HOSE 1

18P-2247A-00-00

$12.99

15

DAMPER, PLATE

90520-08001-00

$8.49

16

DAMPER, RUBBER 1

4RR-21485-00-00

Unavailable

17

FUEL PUMP COMP.

18P-13907-12-00

Unavailable

18

BRACKET, FUEL PUMP

18P-24491-00-00

Unavailable

19

O-RING

1S3-24486-00-00

Unavailable

20

NUT (J17)

95380-06800-00

Unavailable

21

CASE, CAP

18P-2464V-01-00

Unavailable

22

CAP

18P-2467E-00-00

Unavailable

23

PIPE, FUEL 1

18P-13971-00-00

Unavailable
