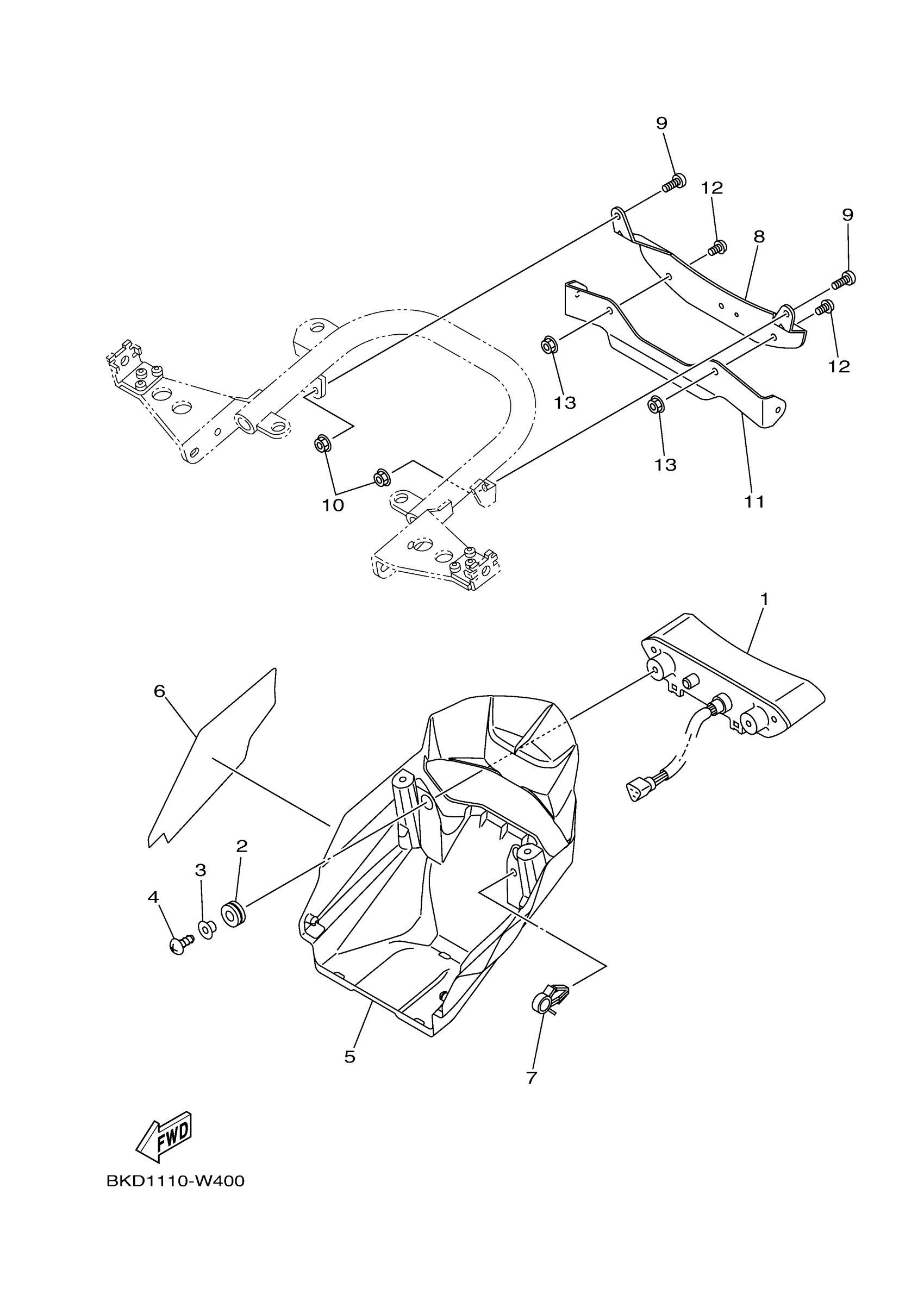

Yamaha YFZ45YSSSG (YFZ450R SE) DF15 2025 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT UNIT ASS

BAS-84710-11-00

$135.55

2

GROMMET (16R)

90480-14329-00

$6.22

3

COLLAR

90387-06204-00

$5.75

4

SCREW, TRUSS TAP.

97707-50025-00

$5.76

5

COVER, TAILLIGHT

18P-84716-00-00

$26.67

6

PLATE, INSULATOR

18P-8411K-00-00

$5.11

7

CLAMP(3XV)

90464-15157-00

$5.75

8

BRACKET

18P-84703-00-00

$18.91

9

BOLT

90111-06059-00

$3.65

10

NUT, U FLANGE

95604-06200-00

$2.19

11

BRACKET, LICENSE

18P-84751-10-00

$30.64

12

BOLT, BUTTON HEAD

92012-06012-00

$2.33

13

NUT, U FLANGE

95604-06200-00

$2.19
