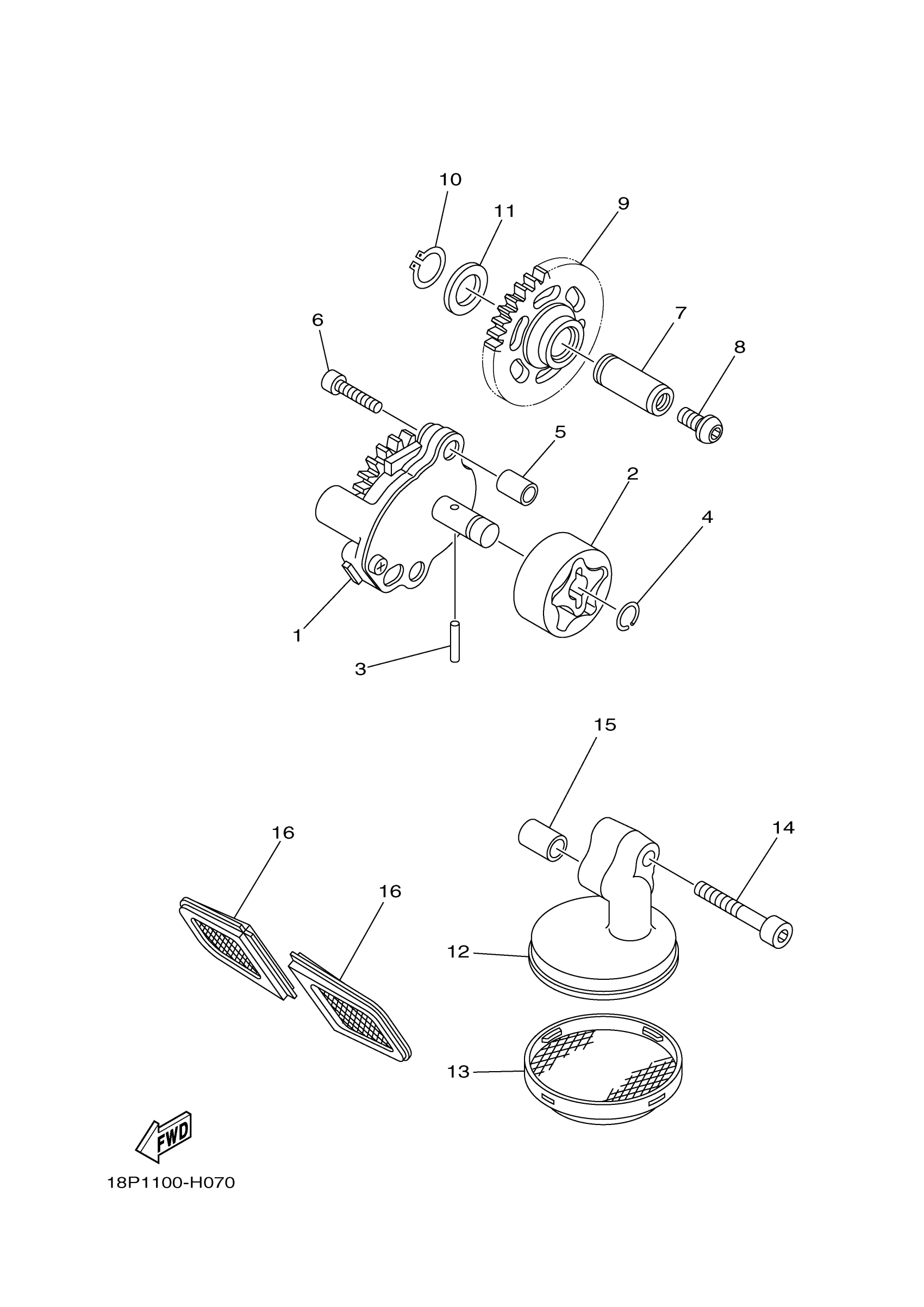

Yamaha YFZ45YSSSG (YFZ450R SE) DF15 2025 OIL PUMP Diagram

Description

Price

OIL PUMP ASSY

18P-13300-00-00

$166.43

ROTOR ASSY 2

5TA-13320-00-00

$40.27

PIN, DOWEL(1HX)

93603-16219-00

$4.89

CIRCLIP(1WG)

93440-10153-00

$1.93

PIN, DOWEL

99530-08012-00

$5.31

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$3.56

SHAFT, IDLE GEAR

2S2-13342-00-00

$19.47

SCREW

90149-06068-00

$3.13

GEAR, OIL PUMP IDL

BKD-13341-00-00

$46.72

CIRCLIP(10Y)

99009-12400-00

$2.87

WASHER PLATE 164185720000

90201-12166-00

$5.86

HOUSING, STRAINER

18P-13412-01-00

$24.58

STRAINER, OIL

18P-13411-00-00

$13.97

BOLT(J17)

91312-06035-00

$2.31

PIN, DOWEL(3VD)

99530-10114-00

$2.13

STRAINER 2

18P-13421-00-00

Unavailable
