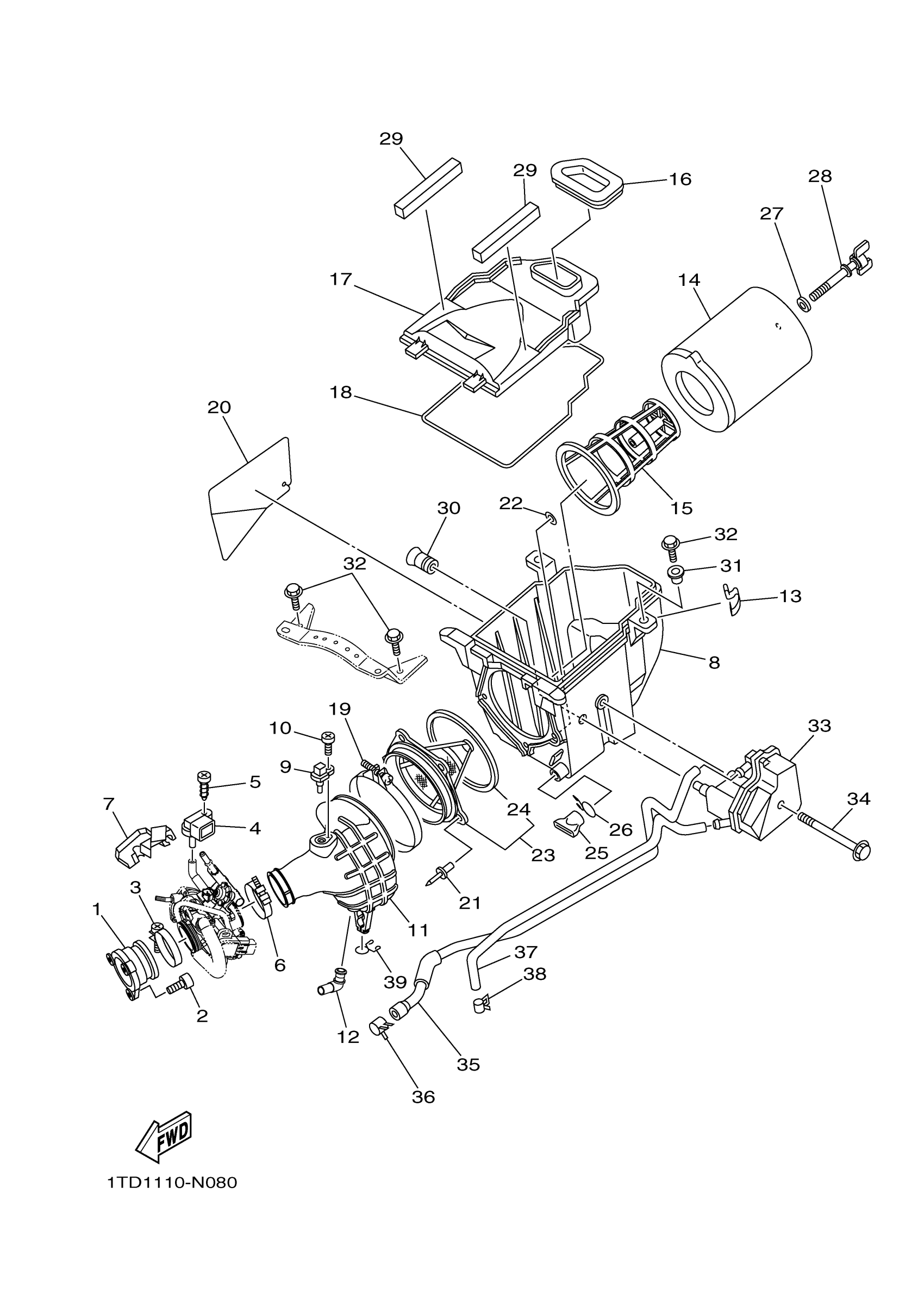

Yamaha YFZ45YSSNW (YFZ450R SE) BKDE 2022 INTAKE Diagram

#

Description
Price

1

JOINT, CARBURETOR 3

18P-13597-00-00

$56.99

2

BOLT,SOCKET HEAD

91314-06020-00

$1.49

3

HOSE CLAMP ASSY

90450-58003-00

$18.99

4

SENSOR, PRESSURE

5S7-82380-00-00

$187.99

5

SCREW, TAPPING

97707-60525-00

$8.49

6

HOSE CLAMP ASSY

90450-54009-00

$11.49

7

PLATE 1

18P-13843-01-00

$10.99

8

CASE, AIR CLEANER

18P-14411-01-00

$41.99

9

SENSOR, AIR TEMPERATURE

8FP-85886-00-00

$60.99

10

SCREW, PAN HEAD(3LA)

98517-05010-00

$4.25

11

JOINT, AIR CLEANER

1TD-14453-01-00

Unavailable

12

PIPE

5TJ-14419-00-00

$8.99

13

HOOK

5TH-14436-00-00

$9.99

14

ELEMENT, AIR CLEAN

5TG-14451-01-00

$40.99

15

GUIDE

5TG-14458-00-00

$25.99

16

FUNNEL

18P-14479-01-00

Unavailable

17

CAP, CLEANER CASE

18P-14412-01-00

Unavailable

18

SEAL

1VJ-14462-00-00

Unavailable

19

HOSE CLAMP ASSY

90450-99014-00

Unavailable

20

PROTECTOR

18P-1442F-00-00

Unavailable

21

RIVET, BLIND

90267-48025-00

Unavailable

22

WASHER, PLATE

90201-04028-00

Unavailable

23

HOLDER, GUIDE

5D3-14459-00-00

Unavailable

24

SEAL

4ES-14462-00-00

Unavailable

25

SEAL

59V-14457-00-00

Unavailable

26

CLIP

90467-220A1-00

Unavailable

27

WASHER (4H7)

90209-06096-00

Unavailable

28

BOLT, WING

90122-06010-00

Unavailable

29

DAMPER

18P-14409-00-00

Unavailable

30

GROMMET

18P-14435-01-00

Unavailable

31

COLLAR

90387-08073-00

Unavailable

32

BOLT, FLANGE

90105-06084-00

Unavailable

33

BREATHER ASSY

18P-15370-00-00

Unavailable

34

BOLT, FLANGE

95812-06110-00

Unavailable

35

HOSE, BREATHER 1

18P-1531A-00-00

Unavailable

36

CLIP

90467-140A6-00

Unavailable

37

HOSE, BREATHER 2

18P-1532A-00-00

Unavailable

38

CLIP

90467-140A6-00

Unavailable

39

CLIP (4X4)

90467-12052-00

Unavailable
