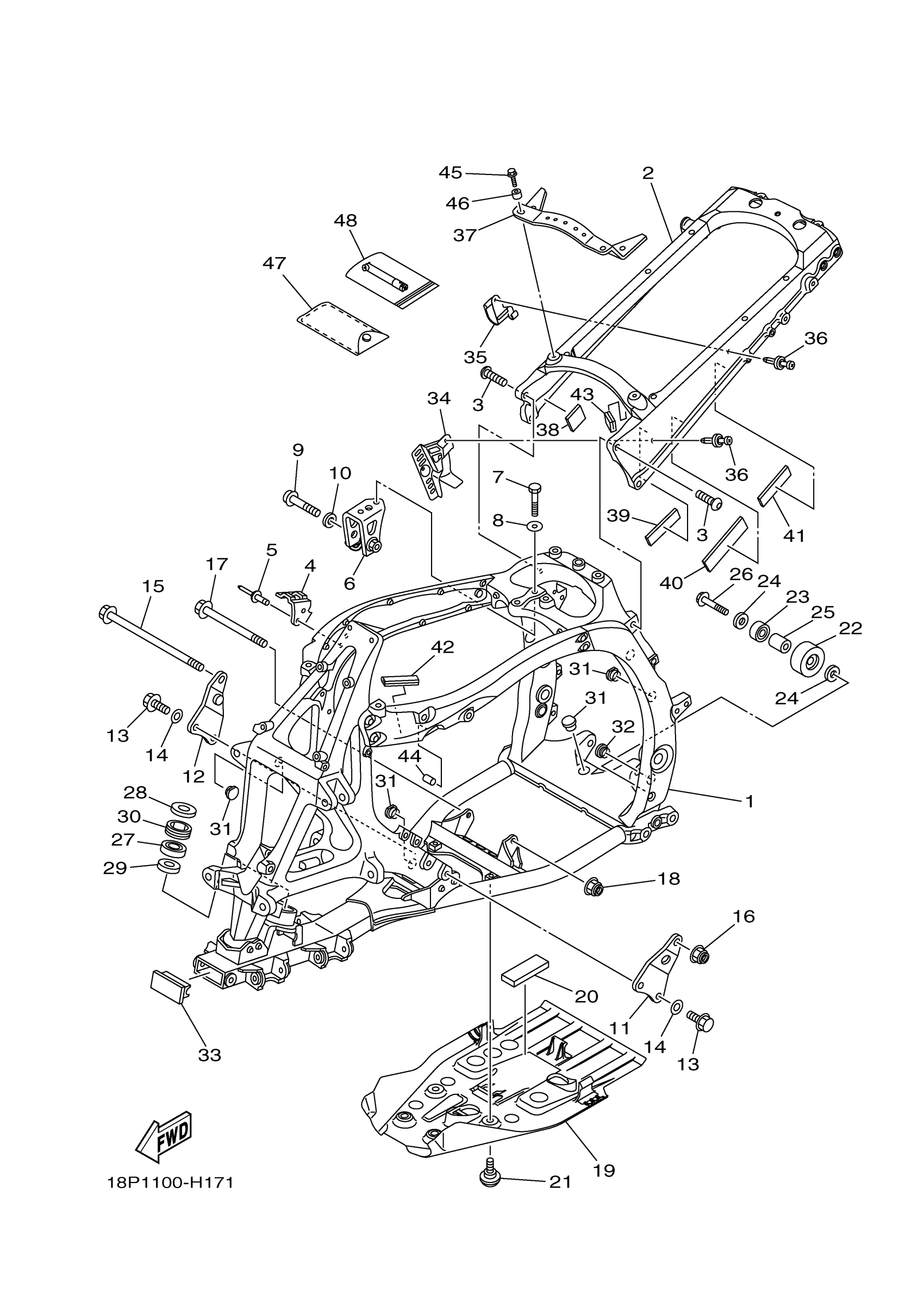

Yamaha YFZ45YSSLM (YFZ450R SPECIAL EDITION) BW2S 2020 FRAME Diagram
#
1
FRONT FRAME COMP.
1TD-F1101-39-00
Unavailable
2
REAR FRAME COMP.
18P-21190-39-00
Unavailable
4
BRKT., BRAKE PIPE 1
18P-2133H-00-00
Unavailable
16
NUT, SELF-LOCKING
90185-10011-00
Unavailable
17
BOLT, FLANGE
90105-10148-00
Unavailable
18
NUT, SELF-LOCKING
90185-10011-00
Unavailable
19
PROTECTOR, ENGINE
18P-21471-00-00
Unavailable
20
DAMPER, PLATE
90520-10021-00
Unavailable
21
BOLT
90109-06201-00
Unavailable
22
TENSIONER
5TG-22178-01-00
Unavailable
23
BEARING (3X3)
93300-60804-00
Unavailable
24
WASHER, PLATE
90201-08043-00
Unavailable
25
COLLAR(1NL)
90387-086N4-00
Unavailable
26
BOLT, FLANGE
90105-08112-00
Unavailable
27
BEARING
93306-20352-00
Unavailable
28
OIL SEAL (25X44X6-810)
93102-25081-00
Unavailable
29
OIL SEAL (25X36X8-334)
93102-25099-00
Unavailable
30
HOLDER, BEARING
2GU-23872-00-00
Unavailable
31
PLUG(2AK)
90338-20183-00
Unavailable
32
PLUG
90338-16007-00
Unavailable
33
CAP, MAIN PIPE
18P-2111A-01-00
Unavailable
34
CLAMP, WIRE HARNESS 1
18P-21335-00-00
Unavailable
35
CLAMP, WIRE HARNES
18P-21336-01-00
Unavailable
36
RIVET
90269-05001-00
Unavailable
37
BRACKET
18P-21131-00-00
Unavailable
38
DAMPER, SEAT
3KJ-24723-00-00
Unavailable
39
DAMPER 1
4XY-21638-00-00
Unavailable
40
DAMPER, LOCATING 3
2S2-2177M-00-00
Unavailable
41
DAMPER 1
1C3-2214F-00-00
Unavailable
42
MOLE 3
4XY-28347-00-00
Unavailable
43
MOLE, SIDE COVER 1
3YX-2171L-00-00
Unavailable
44
HOSE (L70)
90445-112E0-00
Unavailable
45
BOLT, FLANGE
90105-06084-00
Unavailable
46
COLLAR
90387-06197-00
Unavailable
47
TOOL KIT
1PE-F8100-01-00
Unavailable
48
GAUGE, AIR
1NV-2811A-01-00
Unavailable
