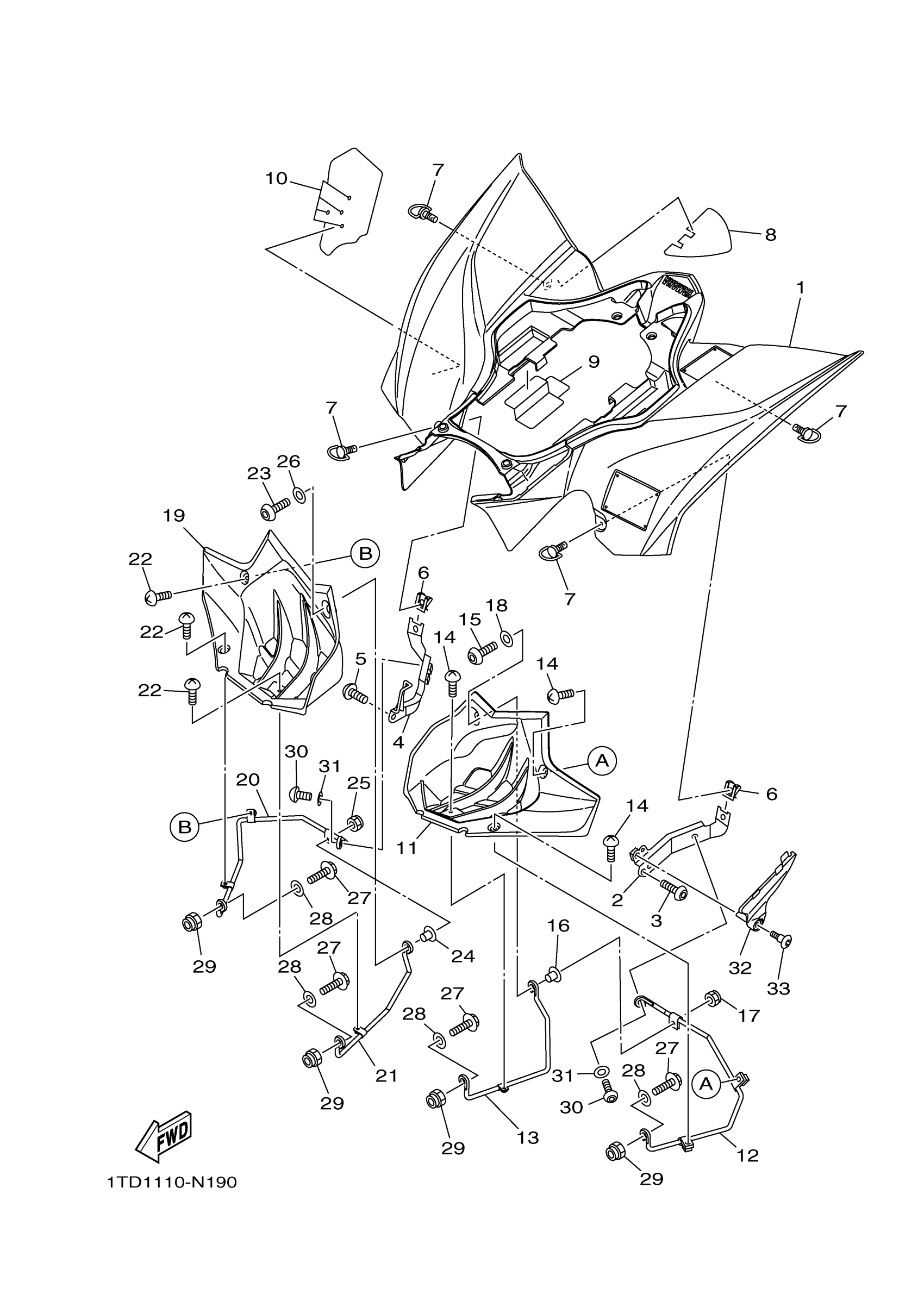

Yamaha YFZ45YSSKR (YFZ450R SPECIAL EDITION) BW2K 2019 REAR FENDER Diagram

#

Description
Price

1

REAR FENDER ASSY

1TD-F1600-K0-00

Unavailable

2

STAY, REAR

18P-21643-00-00

$33.99

3

BOLT, BUTTON HEAD

92012-08016-00

$9.49

4

STAY, REAR

18P-21644-00-00

$33.99

5

BOLT, BUTTON HEAD

92012-08016-00

$9.49

6

PLATE, SPRING

4XV-2177L-01-00

$6.99

7

HEAD

8HG-28386-00-00

$31.99

8

PROTECTOR

1TD-21652-00-00

$14.49

9

COVER, REAR FENDER 2

18P-2163E-00-00

$10.99

10

COVER, REAR FENDER 3

1TD-2163F-00-00

$12.99

11

FLAP

1TD-F1621-00-00

$18.49

12

STAY 1

1TD-2164F-00-00

Unavailable

13

STAY 3

1TD-2164H-00-00

Unavailable

14

SCREW, BINDING

90154-05043-00

$8.49

15

BOLT, BUTTON HEAD

92012-06030-00

$3.08

16

COLLAR

90387-06205-00

Unavailable

17

NUT, U FLANGE

95604-06200-00

Unavailable

18

WASHER, PLATE

90201-06380-00

Unavailable

19

FLAP

1TD-F1691-00-00

Unavailable

20

STAY 2

1TD-2164G-00-00

Unavailable

21

STAY 4

1TD-2164J-00-00

Unavailable

22

SCREW, BINDING

90154-05043-00

$8.49

23

BOLT, BUTTON HEAD

92012-06030-00

$3.08

24

COLLAR

90387-06205-00

Unavailable

25

NUT, U FLANGE

95604-06200-00

Unavailable

26

WASHER, PLATE

90201-06380-00

Unavailable

27

BOLT, FLANGE(4LN)

95817-08025-00

Unavailable

28

WASHER, PLATE

90201-08048-00

Unavailable

29

NUT, SELF-LOCKING

95602-08200-00

Unavailable

30

BOLT, BUTTON HEAD

92012-08020-00

Unavailable

31

WASHER, PLATE

90201-08043-00

Unavailable

32

COVER, REAR FENDER 1

18P-2163A-00-00

Unavailable

33

BOLT

90109-06249-00

Unavailable
