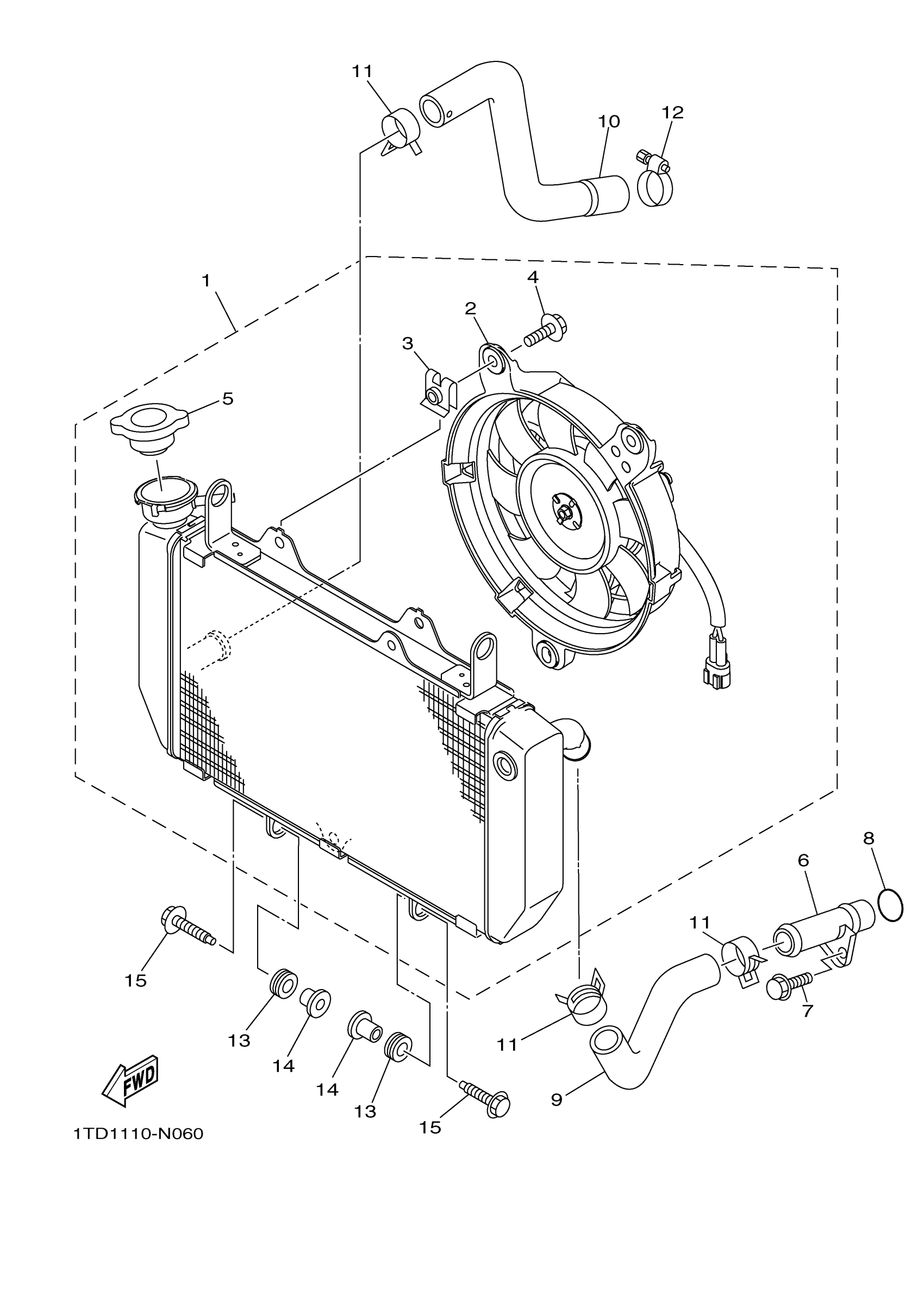

Yamaha YFZ45YSSHB (YFZ450R SPECIAL EDITION) BW24 2017 RADIATOR HOSE Diagram

#

Description
Price

1

RADIATOR ASSY

1TD-E2460-03-00

$260.73

2

BLOWER ASSY

1TD-E2405-01-00

$200.08

3

PLATE

1PE-E2535-00-00

$3.05

4

BOLT, BLOWER HOLDING

1PE-E2675-00-00

$1.18

5

CAP, RADIATOR

1HP-E2462-00-00

$24.56

6

PIPE 1

5TG-12481-00-00

$22.12

7

BOLT, FLANGE

95022-06012-00

$2.80

8

O-RING (5U8)

93210-16500-00

$4.58

9

HOSE 1

1TD-E2576-00-00

$6.29

10

HOSE 2

1TD-E2577-00-00

$7.03

11

CLIP (10V)

90467-23067-00

$3.71

12

HOSE CLAMP ASSY

90450-32015-00

$14.22

13

GROMMET (1E6)

90480-15058-00

$5.75

14

COLLAR 437216330000

90387-07391-00

Unavailable

15

BOLT, WITH WASHER

90119-06181-00

$5.75
