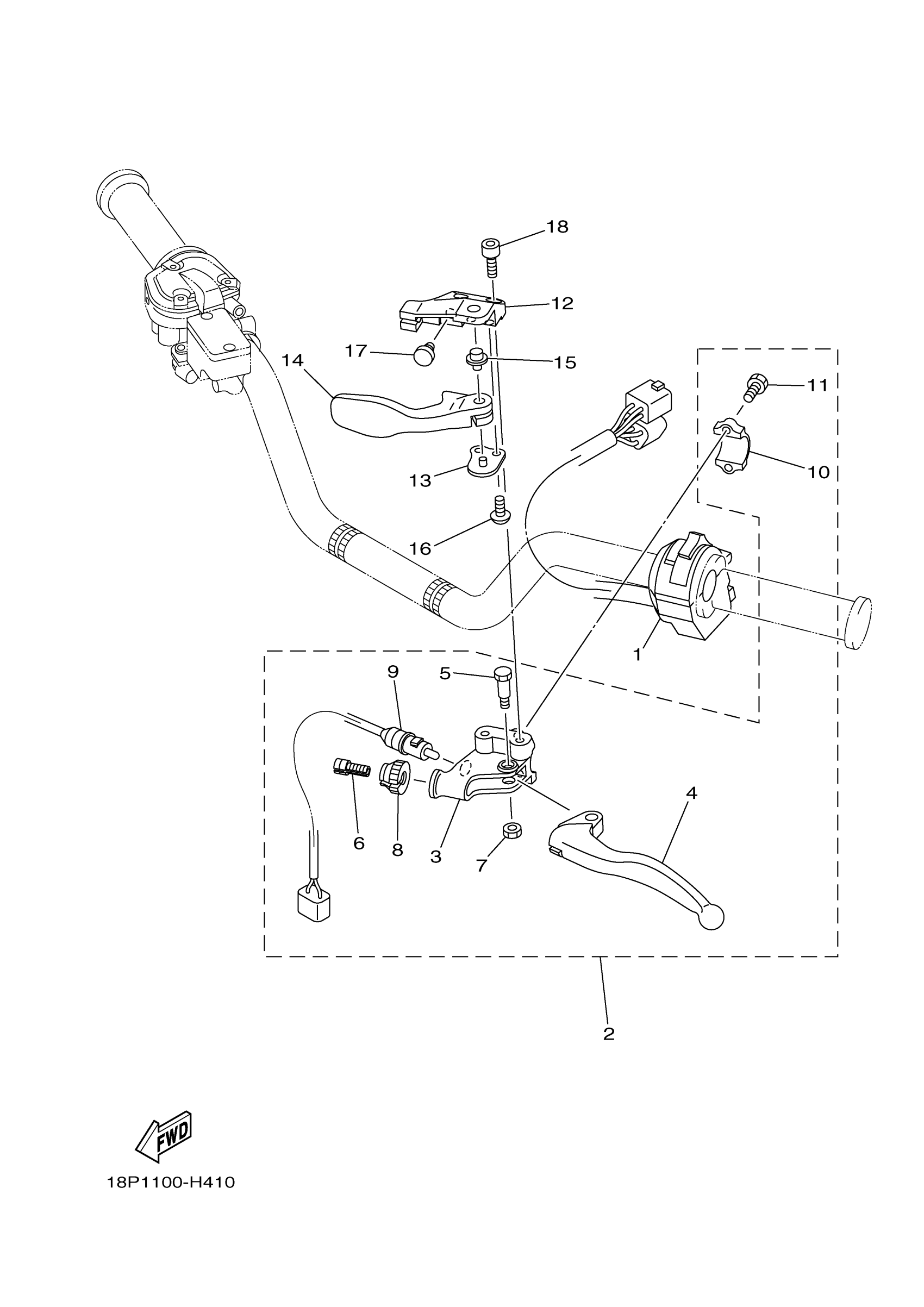

Yamaha YFZ45YSSGY (YFZ450R SPECIAL EDITION) 1TDR 2016 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

SWITCH, HANDLE 3

1S3-83973-12-00

$109.99

2

LEVER HOLDER ASSY

18P-82910-03-00

$135.99

3

HOLDER, LEVER 1

5TG-82911-01-00

$37.99

4

LEVER 1

5TJ-83912-01-00

$33.99

5

BOLT

90109-06034-00

$7.49

6

BOLT, ADJUSTING

5TA-26337-00-00

$25.99

7

NUT, SELF-LOCKING

95617-06100-00

$8.49

8

BOLT, CABLE ADJUST

5HD-83951-01-00

$44.99

9

SWITCH

5KM-82917-00-00

$58.99

10

HOLDER, LEVER LOWER 1

5TG-82913-00-00

$9.99

11

BOLT

90101-05033-00

$2.39

12

BRACKET, LEVER

5TG-25727-01-00

$49.99

13

PLATE, GUIDE

5D3-25689-00-00

$7.99

14

LEVER, BRAKE

5TG-25726-01-00

$30.99

15

COLLAR, LEVER 2

5TG-83923-00-00

$14.49

16

BOLT, BUTTON HEAD

92012-06014-00

Unavailable

17

PLUG

90338-07007-00

Unavailable

18

BOLT, BUTTON HEAD

92012-06016-00

Unavailable
