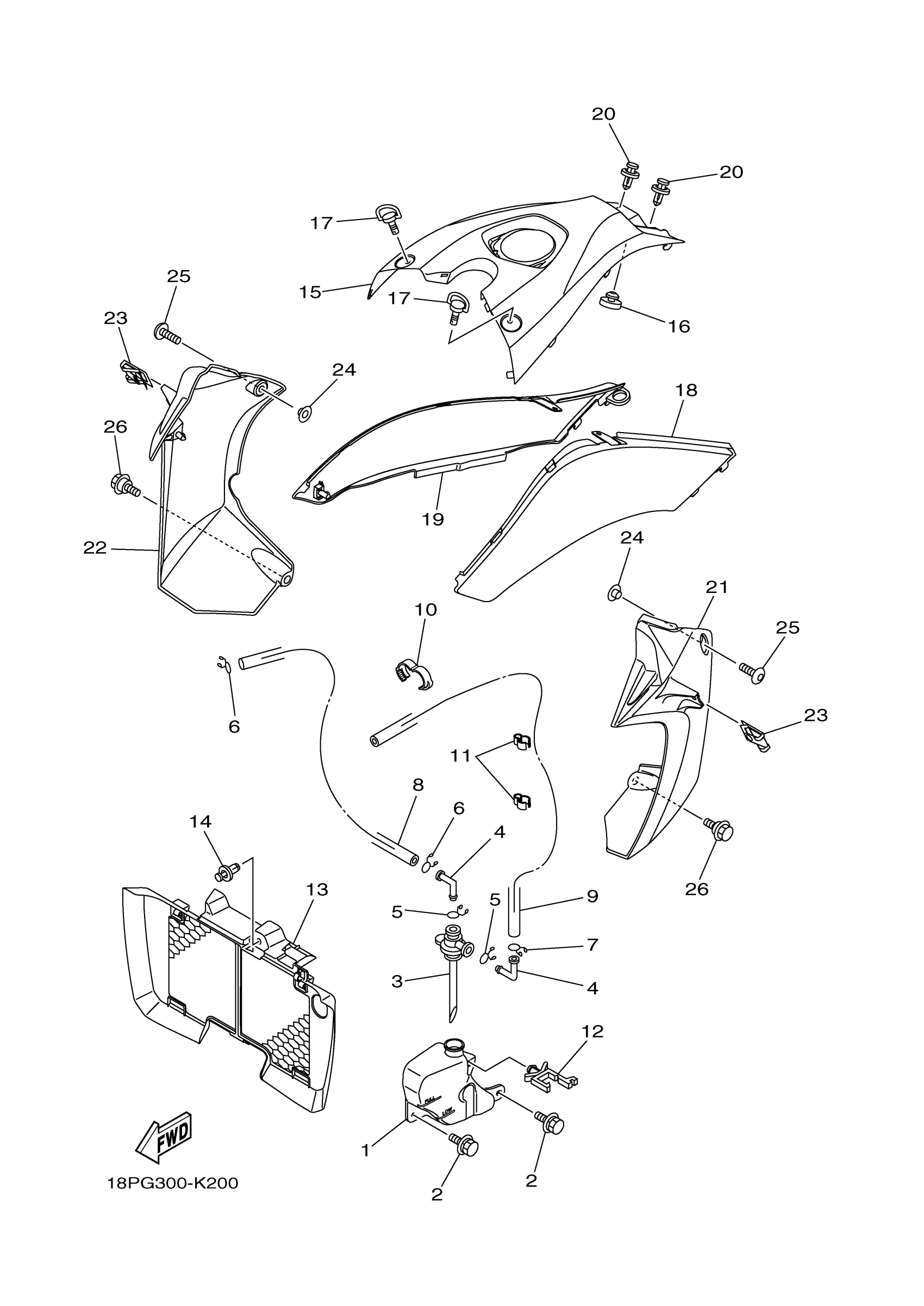

Yamaha YFZ45RSED (YFZ450R SPECIAL EDITION) 18PT 2013 SIDE COVER Diagram
#
Description
Price
5
CLIP(72X)
90467-11M08-00
Unavailable
11
CLAMP(53Y)
90464-15065-00
Unavailable
12
CLAMP
90464-15M08-00
Unavailable
16
PAD, SEAT
22W-24741-00-00
Unavailable
17
HEAD
3FV-28386-00-00
Unavailable
18
COVER, SIDE 1
18P-21711-00-00
Unavailable
19
COVER, SIDE 2
18P-21721-00-00
Unavailable
20
RIVET
90269-07010-00
Unavailable
21
COVER, SIDE 3
18P-21731-20-00
Unavailable
22
COVER, SIDE 4
18P-21741-20-00
Unavailable
23
PLATE, SPRING
4XV-2177L-01-00
Unavailable
24
COLLAR
90387-06170-00
Unavailable
25
BOLT,HEX. SOCKET BUTTON
90111-06084-00
Unavailable
26
BOLT
90109-06172-00
Unavailable
