Description

Price

1

REAR WHEEL COMP.

1S3-25390-11-YX

Unavailable

2

AT20X10R9 KT357 TL(N) DUNLOP

94110-09027-00

Unavailable

3

VALVE, RIM(2GH)

93900-00030-00

$16.99

4

REAR WHEEL COMP.

1S3-25390-11-YX

Unavailable

5

AT20X10R9 KT357 TL(N) DUNLOP

94110-09027-00

Unavailable

6

VALVE, RIM(2GH)

93900-00030-00

$16.99

7

COLLAR, WHEEL

18P-25383-00-00

$171.99

8

BOLT, SERRATION

90114-10013-00

$7.49

9

NUT, FLANGE(3BM)

95704-10500-00

$4.29

10

958-69527-00 WASHER, PLAIN

92990-10200-00

$3.72

11

WASHER, PLATE

90201-16023-00

$8.49

12

NUT, CASTLE

90171-16002-00

$20.99

13

PIN, COTTER

90252-03001-00

$1.96

14

COLLAR, SPROCKET AXLE

18P-25386-00-00

$171.99

15

SPROCKET, DRIVEN (38T)

5TG-25438-10-00

$43.99

16

BOLT

90109-10013-00

Unavailable

17

NUT, SELF-LOCKING

90185-10011-00

Unavailable

18

BRACKET, DISC

18P-25712-00-00

Unavailable

19

COLLAR

90387-40001-00

Unavailable

20

AXLE, WHEEL

BKD-F5381-00-00

Unavailable

21

NUT

90179-38001-00

Unavailable

22

WASHER, CONICAL SPRING

90208-39001-00

Unavailable

23

BOLT, SET (8K2)

90113-06039-00

Unavailable

24

CIRCLIP

18P-25415-00-00

Unavailable

25

O-RING

93210-37003-00

Unavailable

26

CHAIN (DID520MXV 98LE)

94582-33098-00

Unavailable

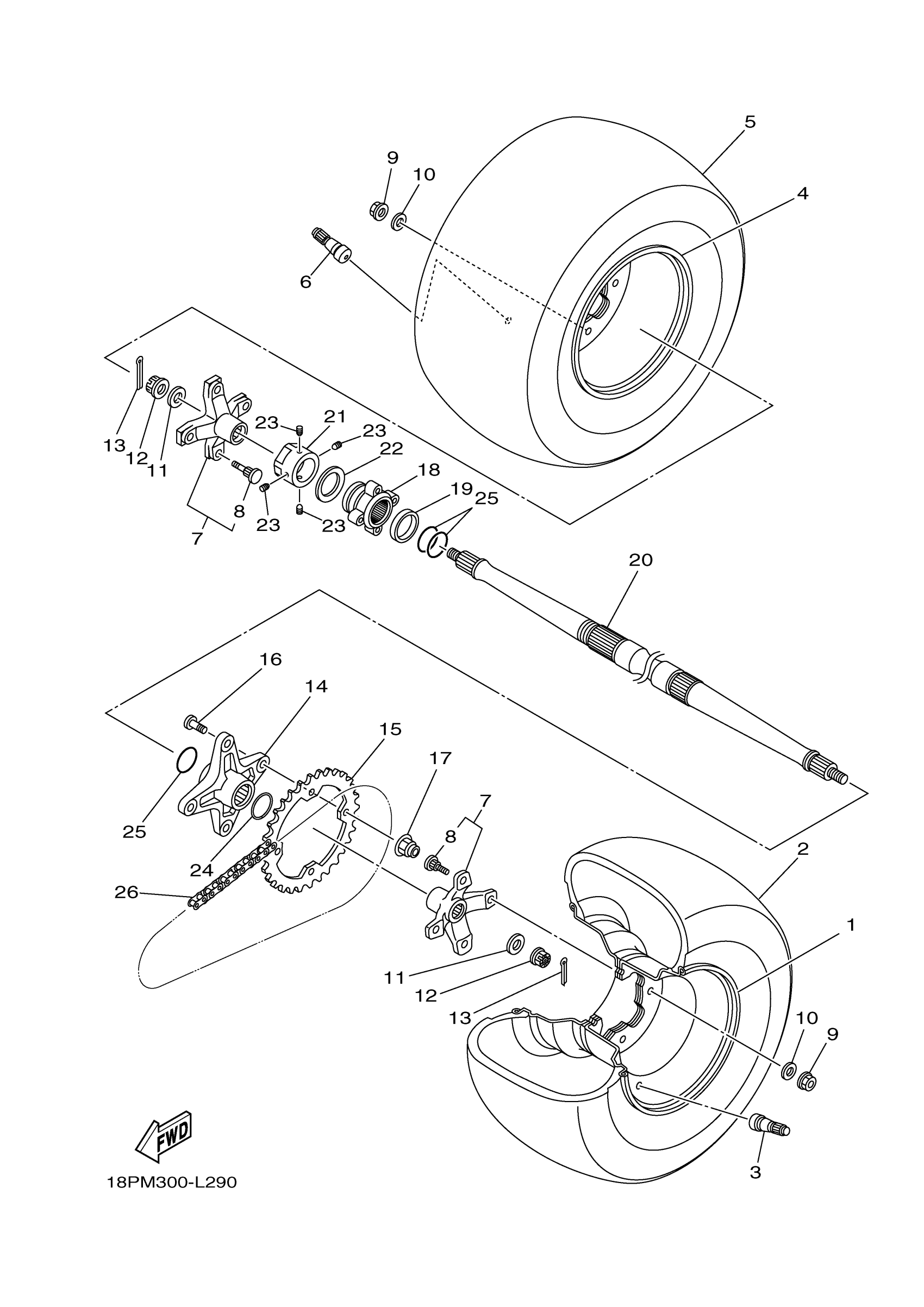

Yamaha YFZ45RSED (YFZ450R SPECIAL EDITION) 18PT 2013 REAR WHEEL Diagram

REAR WHEEL COMP.

AT20X10R9 KT357 TL(N) DUNLOP

VALVE, RIM(2GH)

REAR WHEEL COMP.

AT20X10R9 KT357 TL(N) DUNLOP

VALVE, RIM(2GH)

COLLAR, WHEEL

BOLT, SERRATION

NUT, FLANGE(3BM)

958-69527-00 WASHER, PLAIN

WASHER, PLATE

NUT, CASTLE

PIN, COTTER

COLLAR, SPROCKET AXLE

SPROCKET, DRIVEN (38T)

BOLT

NUT, SELF-LOCKING

BRACKET, DISC

COLLAR

AXLE, WHEEL

NUT

WASHER, CONICAL SPRING

BOLT, SET (8K2)

CIRCLIP

O-RING

CHAIN (DID520MXV 98LE)
