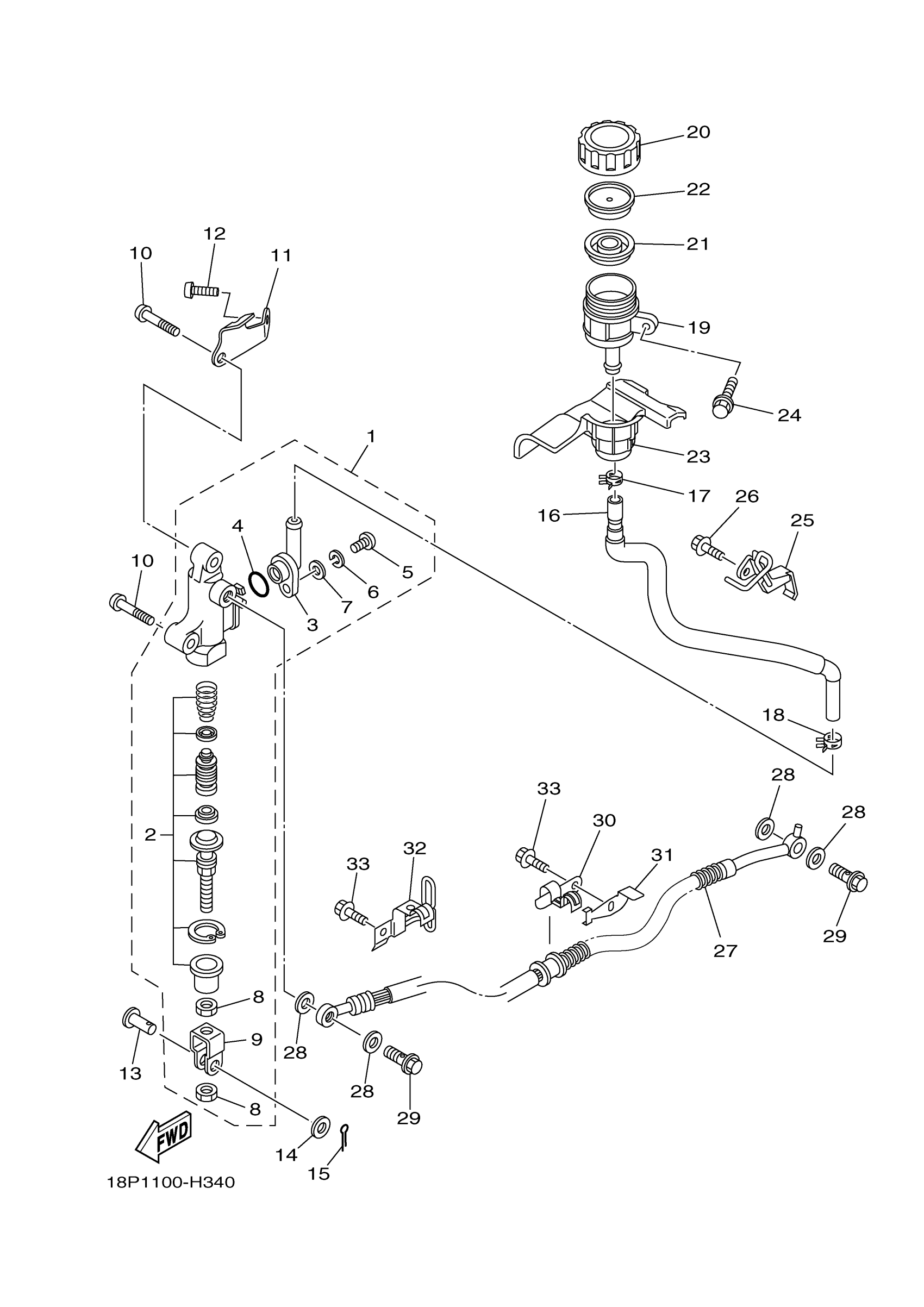

Yamaha YFZ45RSED (YFZ450R SPECIAL EDITION) 18PT 2013 REAR MASTER CYLINDER Diagram

#

Description
Price

1

REAR MASTER CYLINDER ASSY

1S3-2580E-00-00

$128.99

2

CYLINDER KIT, REAR MASTER

31A-W0042-50-00

Unavailable

3

JOINT

1AE-2582A-00-00

Unavailable

4

O-RING (22U)

93210-15566-00

$7.49

5

SCREW, PAN HEAD

98517-04012-00

$3.88

6

WASHER(6TA)

92907-04100-00

$8.49

7

WASHER(JF2)

92907-04600-00

$1.71

8

NUT, HEXAGON SMALL

95317-08700-00

$9.49

9

JOINT

2YK-27222-00-00

$21.99

10

BOLT, BUTTON HEAD

92012-08035-00

$4.41

11

COVER 1

18P-27453-00-00

$15.49

12

BOLT, BUTTON HEAD

92012-08012-00

$8.49

13

PIN, CLEVIS(2YK)

90240-08124-00

$7.49

14

WASHER, PLATE 1562722600

90201-08083-00

$9.49

15

PIN, COTTER

91490-16020-00

Unavailable

16

HOSE, RESERVOIR

18P-25895-00-00

Unavailable

17

CLIP (7K7)

90467-11044-00

Unavailable

18

CLIP (5K4)

90467-14057-00

Unavailable

19

TANK, RESERVOIR

5JJ-25894-01-00

Unavailable

20

CAP, RESERVOIR

3XP-25852-50-00

Unavailable

21

DIAPHRAGM, RESERVOIR

2VN-25854-00-00

Unavailable

22

BUSH,DIAPHRAGM

2VN-25855-00-00

Unavailable

23

DAMPER

18P-25897-00-00

Unavailable

24

BOLT, WITH WASHER

90119-06177-00

Unavailable

25

BRACKET 1

18P-27263-00-00

Unavailable

26

BOLT, FLANGE

95022-06012-00

Unavailable

27

HOSE, BRAKE

18P-25874-00-00

Unavailable

28

WASHER, PLATE(481)

90201-10118-00

Unavailable

29

BOLT, UNION

90401-10015-00

Unavailable

30

HOLDER, BRAKE HOSE

18P-25886-00-00

Unavailable

31

STOPPER

18P-2743E-00-00

Unavailable

32

HOLDER, CABLE

18P-23317-00-00

Unavailable

33

BOLT, FLANGE

90105-06090-00

Unavailable
