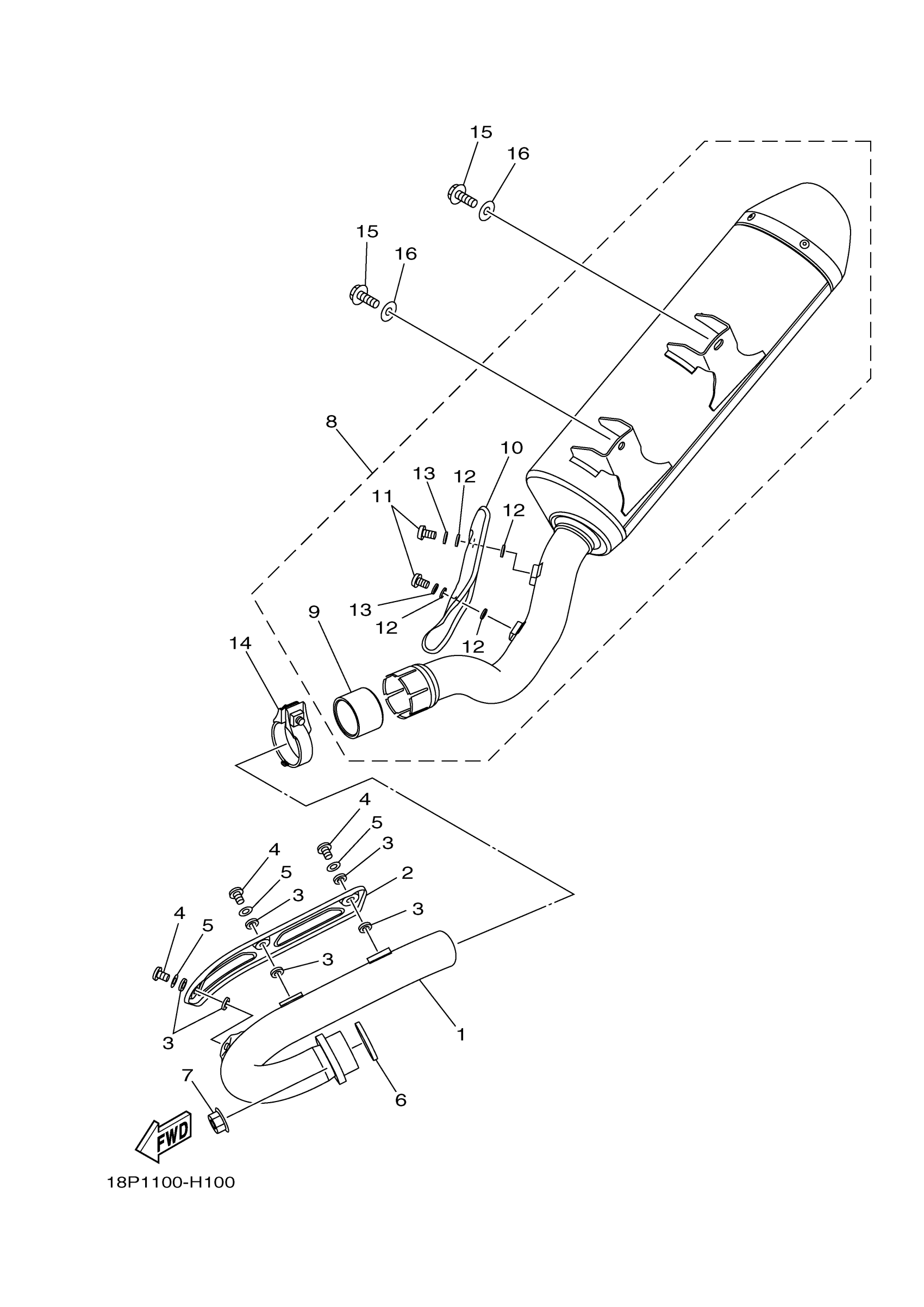

Yamaha YFZ45RSED (YFZ450R SPECIAL EDITION) 18PT 2013 EXHAUST Diagram

#

Description
Price

1

PIPE, EXHAUST 1

18P-14611-01-00

Unavailable

2

PROTECTOR, EXHAUST PIPE

18P-14628-00-00

$36.70

3

WASHER, PLATE

90201-05015-00

$5.86

4

SCREW, BIND(1JK)

98980-06010-00

$5.47

5

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.73

6

GASKET, EXHAUST PIPE

3VD-14613-01-00

$9.15

7

NUT,FLANGE(J10)

95702-08500-00

$0.79

8

MUFFLER ASSY 1

18P-14710-01-00

$683.99

9

GASKET, MUFFLER

8FA-14714-10-00

$33.31

10

PROTECTOR, MUFFLER 1

18P-14718-00-00

$28.64

11

SCREW, BIND(1JK)

98980-06010-00

$5.47

12

WASHER, PLATE

90201-05015-00

$5.86

13

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.73

14

BAND, SILENCER

5BE-14788-00-00

$28.39

15

BOLT, FLANGE

90105-08129-00

$3.79

16

WASHER, PLATE

90201-08048-00

Unavailable
