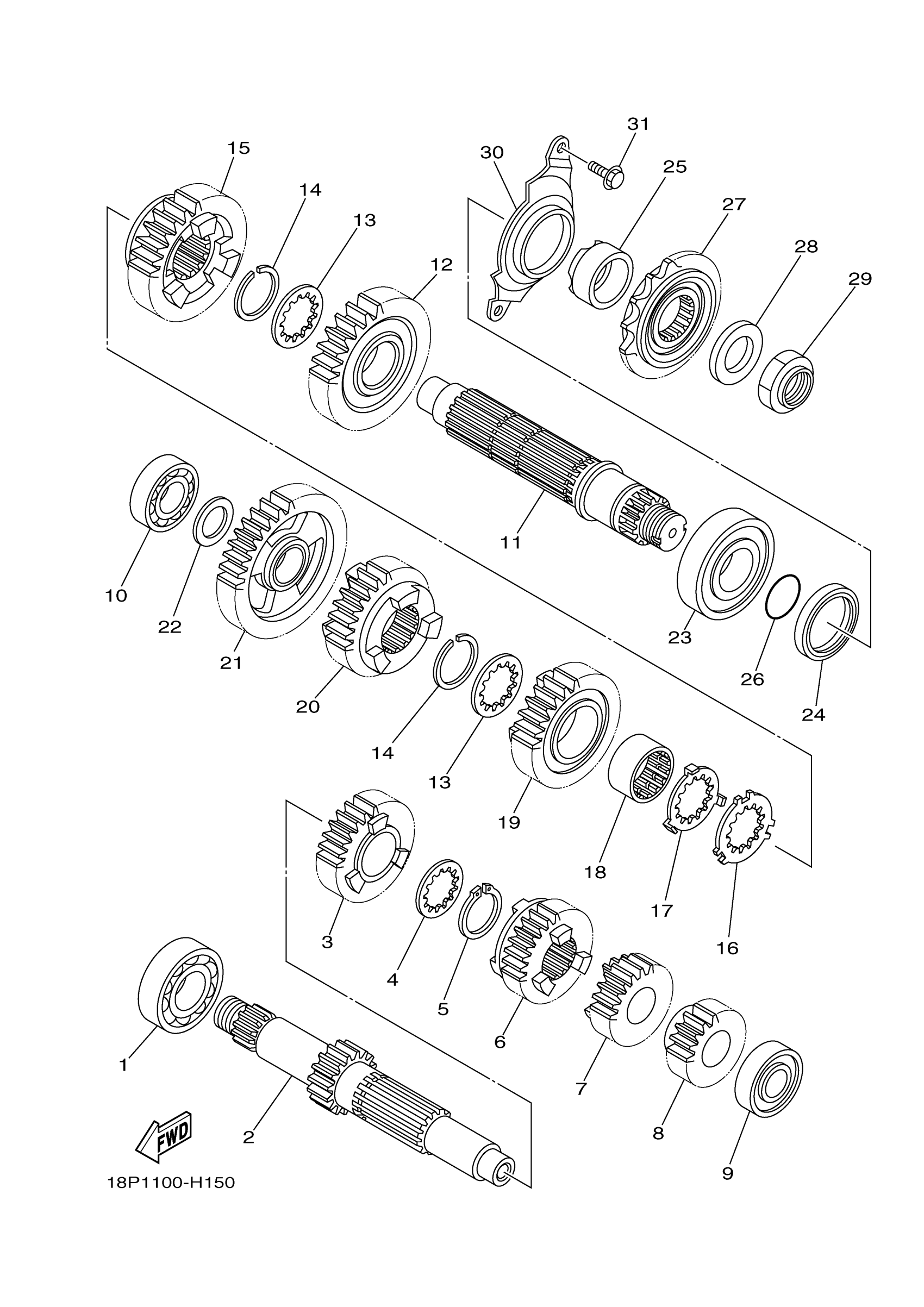

Yamaha YFZ45RDW (YFZ450R) 18PP0 2013 TRANSMISSION Diagram
#
Description
Price
16
WASHER, CLAW
90214-26002-00
Unavailable
17
WASHER, CLAW
90214-26003-00
Unavailable
18
COLLAR
90387-26005-00
Unavailable
19
GEAR, 4TH WHEEL (28T)
18P-17241-00-00
Unavailable
20
GEAR, 5TH WHEEL (23T)
18P-17251-00-00
Unavailable
21
GEAR, 1ST WHEEL (35T)
18P-17211-00-00
Unavailable
22
WASHER PLATE 328171160000
90201-20276-00
Unavailable
23
BEARING
93306-27803-00
Unavailable
24
OIL SEAL(1UY)
93102-35393-00
Unavailable
25
COLLAR
90387-28009-00
Unavailable
26
O-RING
93210-25001-00
Unavailable
27
SPROCKET, DRIVE (14T)
18P-17460-00-00
Unavailable
28
WASHER, PLATE
90201-22015-00
Unavailable
29
NUT
90179-22018-00
Unavailable
30
PLATE, COVER
1S3-17471-00-00
Unavailable
31
BOLT, FLANGE
95022-06014-00
Unavailable
