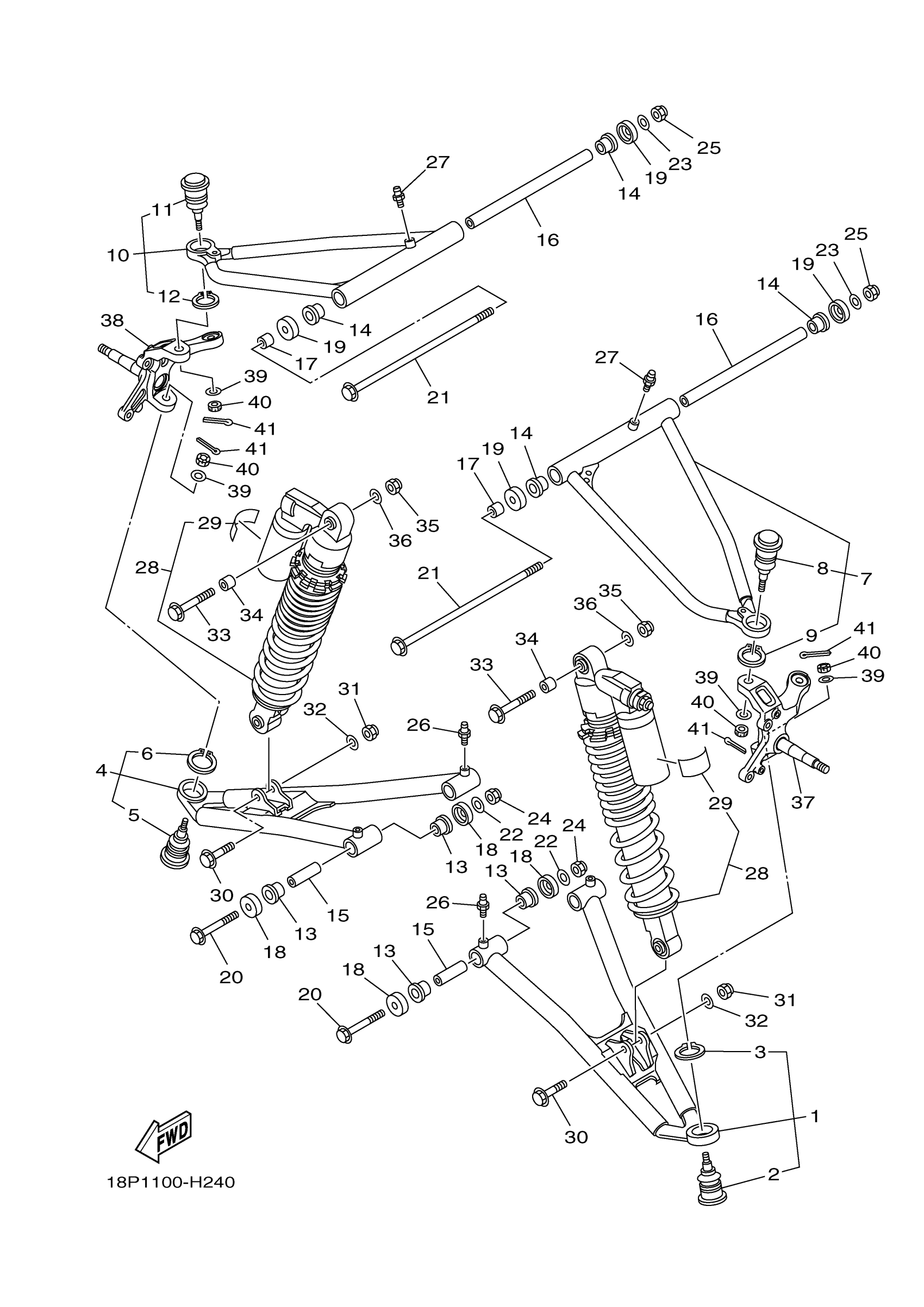

Yamaha YFZ45RBW (YFZ450R) 18PK0 2012 FRONT SUSPENSION WHEEL Diagram

#

Description
Price

1

FRONT LOWER ARM COMP. (LEFT)

18P-23570-01-33

Unavailable

2

BALL JOINT

5LP-23579-00-00

$65.99

3

CIRCLIP(4A6)

99009-30400-00

$8.49

4

FRONT LOWER ARM COMP. (RIGHT)

18P-23580-01-33

Unavailable

5

BALL JOINT

5LP-23579-00-00

$65.99

6

CIRCLIP(4A6)

99009-30400-00

$8.49

7

FRONT UPPER ARM COMP. (LEFT)

18P-23540-01-33

Unavailable

8

BALL JOINT

5LP-23579-00-00

$65.99

9

CIRCLIP(4A6)

99009-30400-00

$8.49

10

FRONT UPPER ARM COMP. (RIGHT)

18P-23550-01-33

$361.99

11

BALL JOINT

5LP-23579-00-00

$65.99

12

CIRCLIP(4A6)

99009-30400-00

$8.49

13

BUSH, SOLID(3GG)

90381-15088-00

$21.99

14

BUSH, SOLID(3GG)

90381-15088-00

$21.99

15

COLLAR(1UY)

90387-101R3-00

$19.99

16

COLLAR

90387-10069-00

Unavailable

17

COLLAR

90387-10043-00

Unavailable

18

COVER, THRUST 1

1UY-23517-01-00

Unavailable

19

COVER, THRUST 1

1UY-23517-01-00

Unavailable

20

BOLT, FLANGE

90105-10135-00

Unavailable

21

BOLT, FLANGE

90105-10301-00

Unavailable

22

WASHER, PLATE

90201-10037-00

Unavailable

23

WASHER, PLATE

90201-10037-00

Unavailable

24

NUT, SELF-LOCKING

90185-10012-00

Unavailable

25

NUT, SELF-LOCKING

90185-10012-00

Unavailable

26

NIPPLE, GREASE

93700-06M03-00

Unavailable

27

NIPPLE, GREASE

93700-06M03-00

Unavailable

28

SHOCK ABSORBER ASSY

18P-23350-E0-00

Unavailable

29

LABEL, WARNING

4AA-22259-80-00

Unavailable

30

BOLT, FLANGE

90105-10339-00

Unavailable

31

NUT, SELF-LOCKING

90185-10012-00

Unavailable

32

WASHER, PLATE

90201-10035-00

Unavailable

33

BOLT, FLANGE

90105-10351-00

Unavailable

34

COLLAR

90387-10043-00

Unavailable

35

NUT, SELF-LOCKING

90185-10012-00

Unavailable

36

WASHER, PLATE

90201-10037-00

Unavailable

37

STEERING KNUCKLE ASSY (LEFT)

18P-23501-00-00

Unavailable

38

STEERING KNUCKLE ASSY (RIGHT)

18P-23502-00-00

Unavailable

39

WASHER (25G)

90209-10229-00

Unavailable

40

NUT, CASTLE

90171-10001-00

Unavailable

41

PIN, COTTER

91490-20025-00

Unavailable
