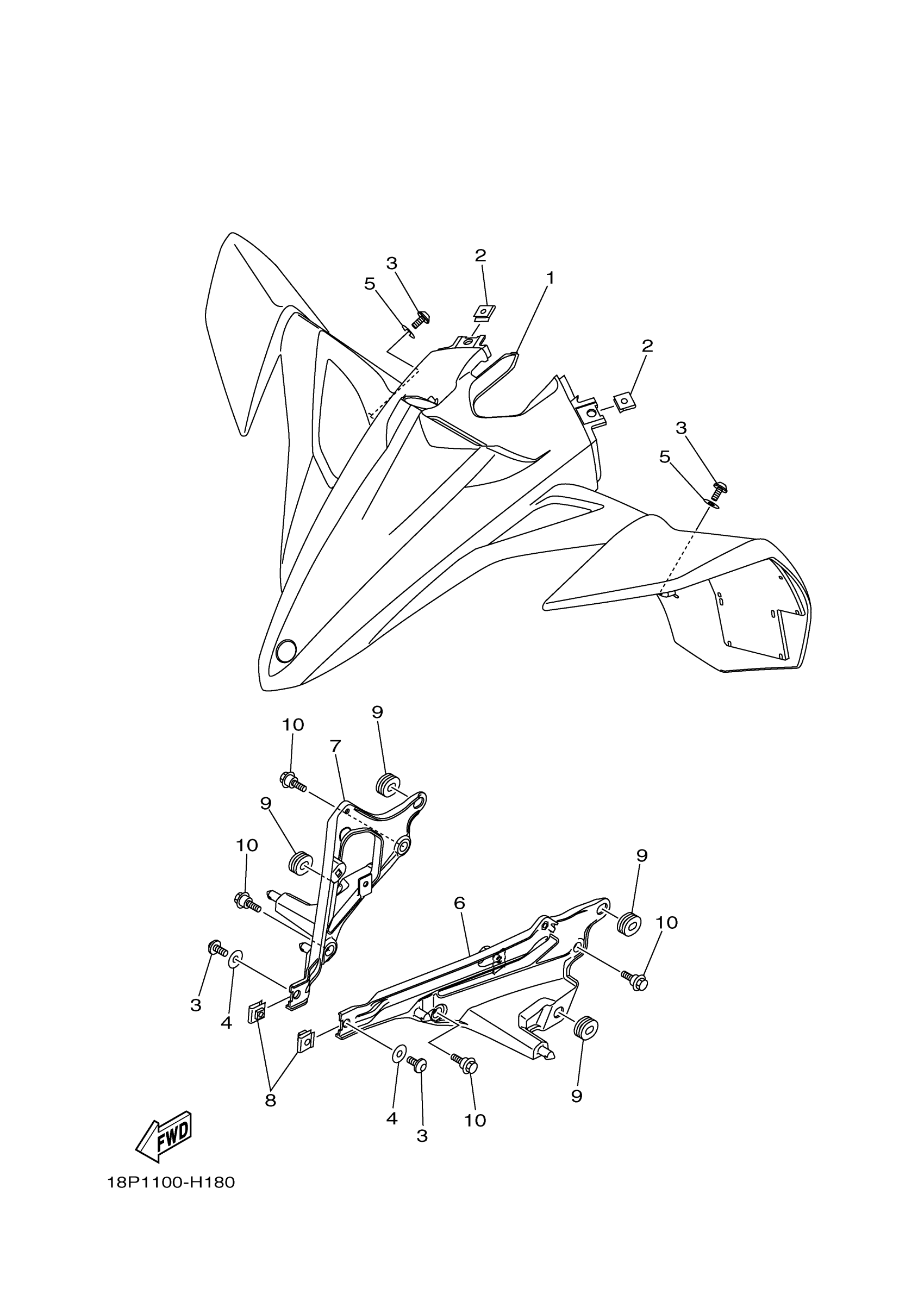

Yamaha YFZ45RBW (YFZ450R) 18PK0 2012 FRONT FENDER Diagram

#

Description
Price

1

FRONT FENDER COMP. (DEEP PURPLISH BLUE SOLID E)

18P-W2151-00-00

$484.20

2

NUT, SPRING

90183-061A5-00

$7.77

3

BOLT,HEX. SOCKET BUTTON

90111-06116-00

$5.34

4

WASHER, PLATE

90201-06033-00

$2.56

5

WASHER, PLATE

90201-06085-00

$2.58

6

STAY, FENDER 1

18P-21513-00-00

Unavailable

7

STAY, FENDER 2

18P-21514-00-00

$37.42

8

NUT, SPRING

90183-061A5-00

$7.77

9

GROMMET(4BH)

90480-01559-00

$4.48

10

BOLT

90109-06199-00

$5.39
