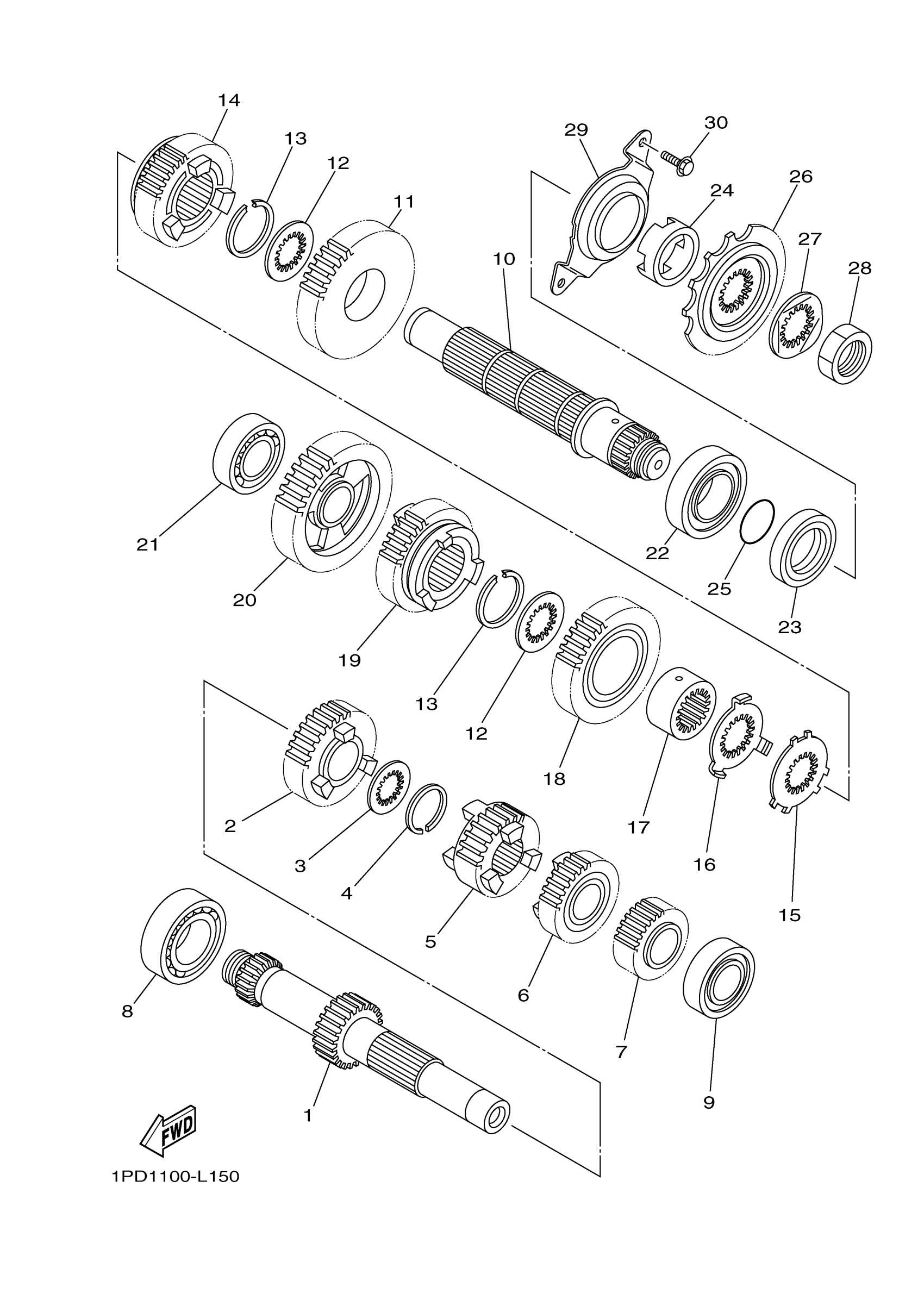

Yamaha YFZ45DW (YFZ450) 1PD41 2013 TRANSMISSION Diagram

#

Description
Price

1

AXLE, MAIN

5TG-17411-00-00

Unavailable

2

GEAR, 5TH PINION

5TG-17151-00-00

$81.99

3

WASHER(3VD)

90209-21332-00

$7.49

4

CIRCLIP (4L0)

93440-25084-00

$5.60

5

GEAR, 3RD PINION

5TG-17131-00-00

$126.99

6

GEAR, 4TH PINION

5TG-17141-00-00

Unavailable

7

GEAR, 2ND PINION

5TG-17121-00-00

$39.99

8

BEARING

93306-20532-00

$66.99

9

BEARING (34L)

93306-00431-00

$41.99

10

DRIVE AXLE ASSY.,2

1PD-1742A-00-00

Unavailable

11

GEAR, 2ND WHEEL

5TG-17221-00-00

$111.99

12

WASHER

90209-25342-00

$7.49

13

CIRCLIP (2H7)

93440-28062-00

$8.49

14

GEAR, 4TH WHEEL

5TG-17241-00-00

Unavailable

15

WASHER

90209-25349-00

Unavailable

16

WASHER

90209-25350-00

Unavailable

17

COLLAR

90387-2810U-00

Unavailable

18

GEAR, 3RD WHEEL

5TG-17231-00-00

Unavailable

19

GEAR, 5TH WHEEL

5TG-17251-00-00

Unavailable

20

GEAR, 1ST WHEEL

5BF-17211-00-00

Unavailable

21

BEARING (5Y1)

93306-00426-00

Unavailable

22

BEARING

93306-20593-00

Unavailable

23

OIL SEAL

93102-32480-00

Unavailable

24

COLLAR

90387-2513F-00

Unavailable

25

O-RING

93210-22298-00

Unavailable

26

SPROCKET, DRIVE

5NG-17460-00-00

Unavailable

27

WASHER, LOCK

90215-21003-00

Unavailable

28

NUT

90179-20001-00

Unavailable

29

PLATE, COVER

5GR-17471-10-00

Unavailable

30

BOLT, FLANGE

95022-06016-00

Unavailable
