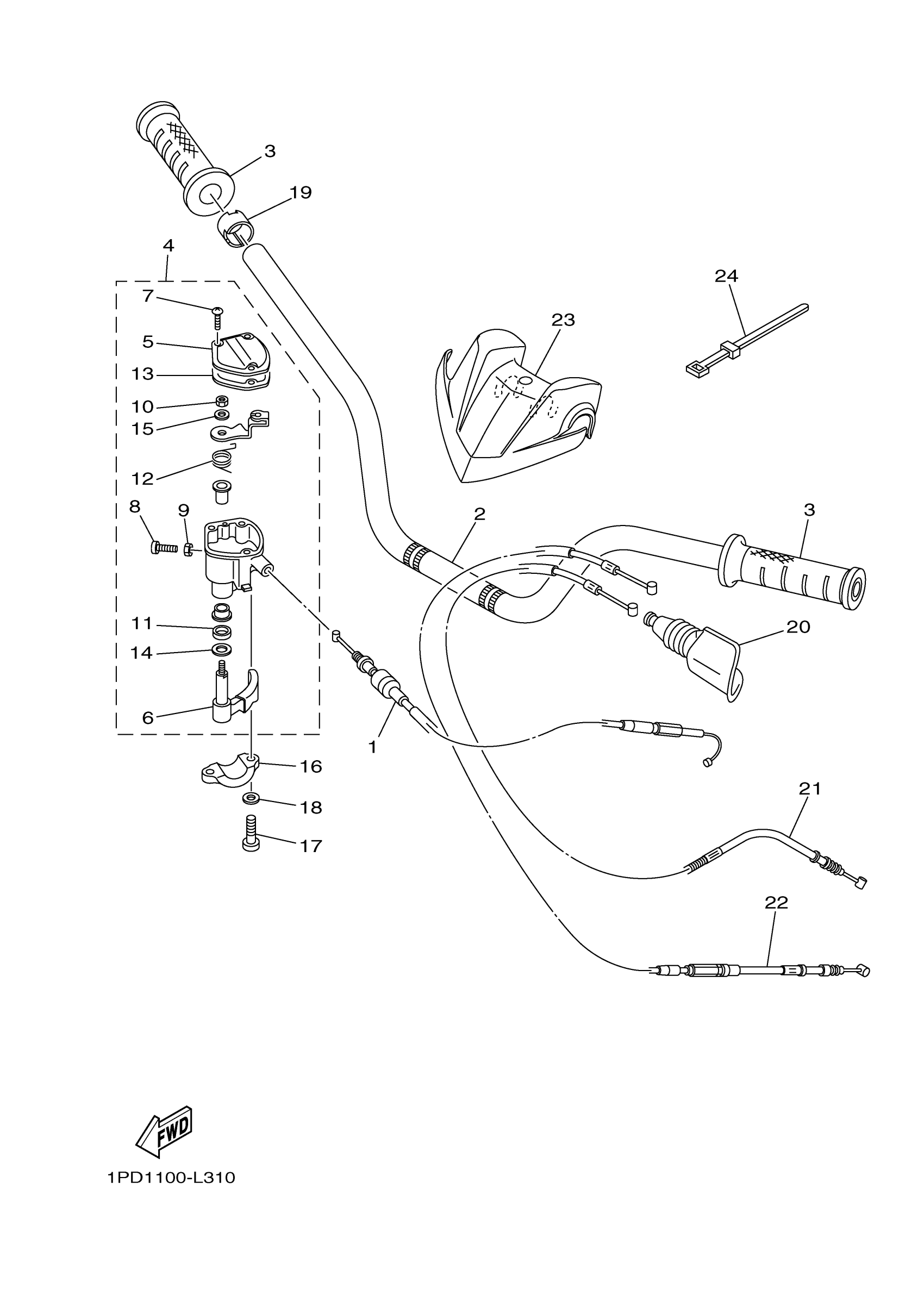

Yamaha YFZ45DW (YFZ450) 1PD41 2013 STEERING HANDLE CABLE Diagram

#

Description
Price

1

CABLE, THROTTLE 1

1PD-26311-00-00

$31.99

2

HANDLEBAR

5TG-26111-30-00

Unavailable

3

GRIP (LEFT)

5LP-26241-00-00

$24.99

4

THROTTLE LEVER ASSY

4KB-26250-22-00

$162.99

5

CAP, GEAR

4KB-2628F-20-00

$36.99

6

LEVER, THROTTLE

1NV-2625G-02-00

Unavailable

7

SCREW

4KB-2632G-00-00

Unavailable

8

SCREW, GRIP END

4KB-26256-00-00

Unavailable

9

NUT, U

95617-05100-00

$9.49

10

NUT, LOCK

4KB-26258-00-00

$1.98

11

OIL SEAL (9X15X4-256)

93104-09025-00

$7.49

12

SPRING

1NV-26304-00-00

$11.99

13

GASKET

4KB-2628G-00-00

$13.49

14

WASHER

1NV-26129-00-00

$6.99

15

. WASHER, SPECIAL

53L-83909-00-00

Unavailable

16

HOLDER, LEVER LOWER 1

1S3-82913-00-00

Unavailable

17

SCREW, PAN HEAD

98517-05020-00

Unavailable

18

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

19

COLLAR

1UY-26259-00-00

Unavailable

20

COVER, HANDLE LEVER 1

31A-26372-00-00

Unavailable

21

CABLE, CLUTCH

1PD-26335-00-00

Unavailable

22

CABLE, BRAKE

5TG-26341-20-00

Unavailable

23

PROTECTOR, HANDLEBAR

4D3-26124-00-00

Unavailable

24

BAND, SWITCH CORD

437-83936-01-00

Unavailable
