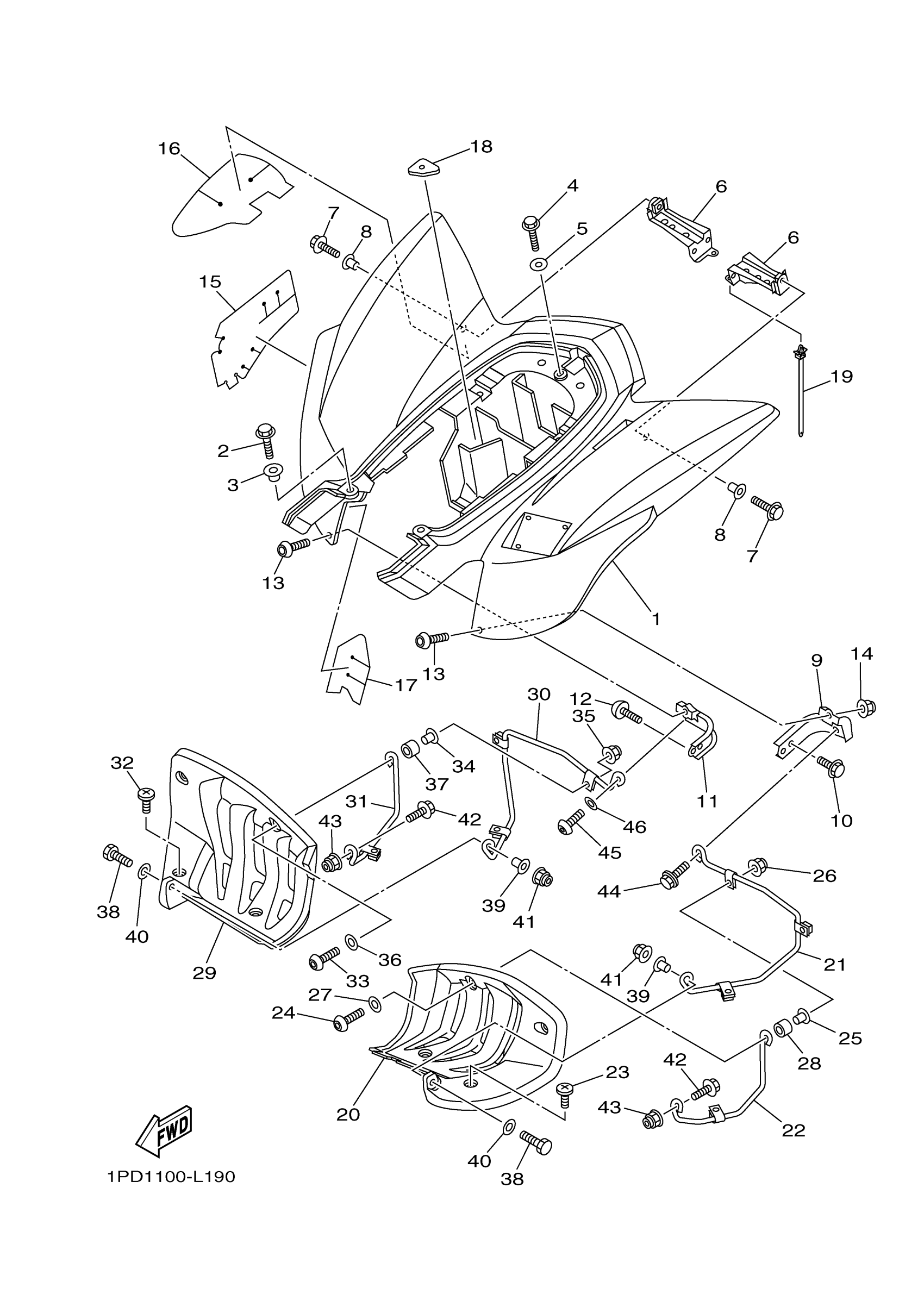

Yamaha YFZ45DW (YFZ450) 1PD41 2013 REAR FENDER Diagram
#
1
REAR FENDER COMP. (BLACK METALLIC J)
5TG-W2161-24-00
Unavailable
6
STAY, FENDER 1
5TG-21613-10-00
Unavailable
7
BOLT, FLANGE
95817-06014-00
Unavailable
9
STAY, REAR
5TG-21643-20-00
Unavailable
11
STAY, REAR
5TG-21644-30-00
Unavailable
16
COVER, REAR FENDER 2
5TG-2163E-10-00
Unavailable
17
COVER, REAR FENDER 3
5TG-2163F-10-00
Unavailable
18
DAMPER 2
5TG-21639-00-00
Unavailable
19
CLAMP(2TV)
90464-10112-00
Unavailable
20
FLAP
5TG-21621-00-00
Unavailable
21
STAY 1
5D3-2164F-10-00
Unavailable
22
STAY 3
5D3-2164H-10-00
Unavailable
23
SCREW, BINDING
90154-05043-00
Unavailable
24
BOLT, BUTTON HEAD
92012-06035-00
Unavailable
25
SPACER (4F2)
90560-06201-00
Unavailable
27
WASHER, PLATE
90201-06380-00
Unavailable
28
COLLAR
90387-06197-00
Unavailable
29
FLAP
5TG-21691-00-00
Unavailable
30
STAY 2
5D3-2164G-20-00
Unavailable
31
STAY 4
5D3-2164J-10-00
Unavailable
32
SCREW, BINDING
90154-05043-00
Unavailable
33
BOLT, BUTTON HEAD
92012-06035-00
Unavailable
34
SPACER (4F2)
90560-06201-00
Unavailable
36
WASHER, PLATE
90201-06380-00
Unavailable
37
COLLAR
90387-06197-00
Unavailable
38
BOLT, HEXAGON
97017-06025-00
Unavailable
39
COLLAR
90387-06204-00
Unavailable
40
WASHER, PLATE
90201-06093-00
Unavailable
42
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
43
NUT, SELF-LOCKING
95602-08200-00
Unavailable
44
BOLT, FLANGE
95814-08016-00
Unavailable
45
BOLT, BUTTON HEAD
92012-08020-00
Unavailable
46
WASHER, PLATE
90201-08043-00
Unavailable
