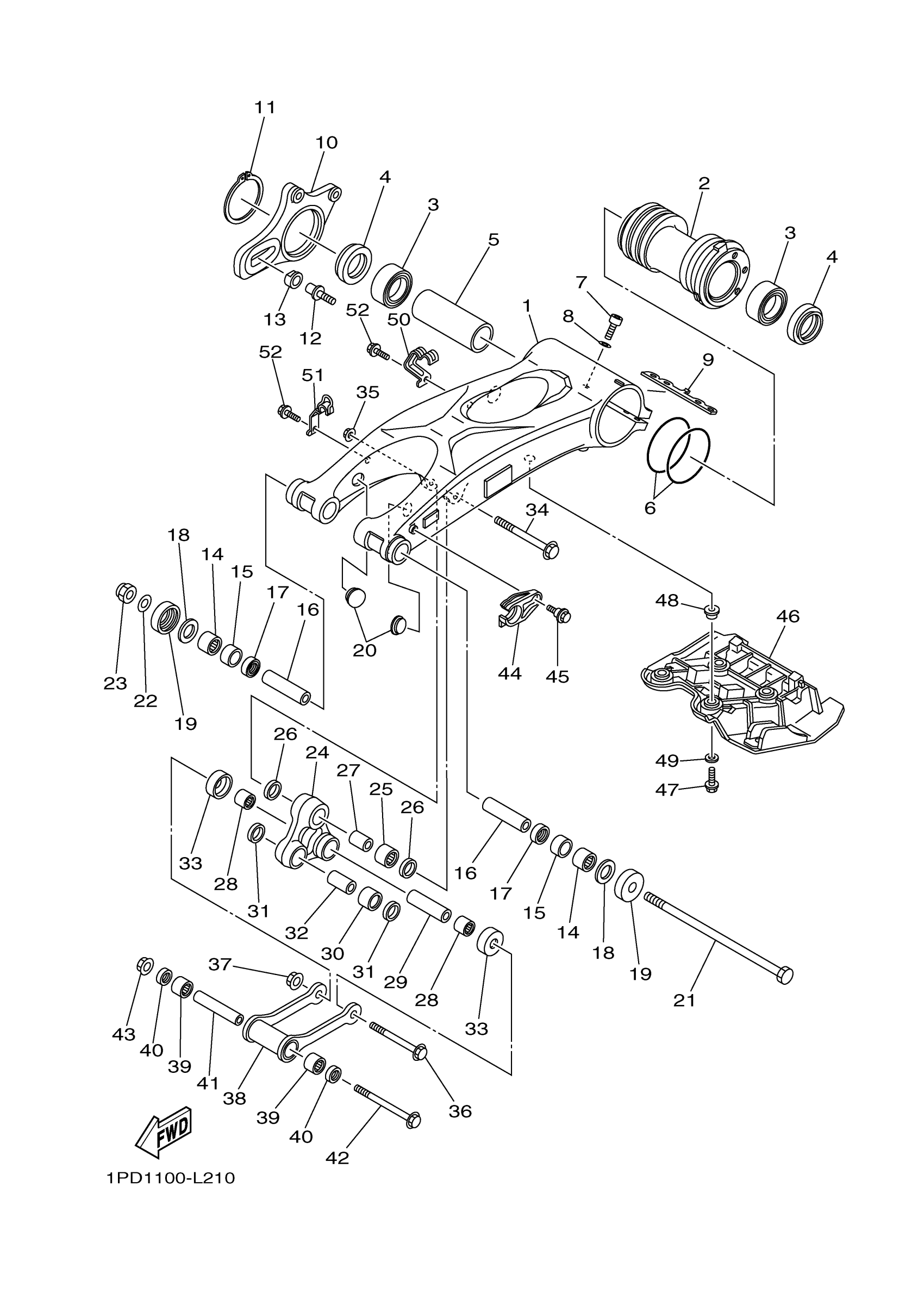

Yamaha YFZ45DW (YFZ450) 1PD41 2013 REAR ARM Diagram
#
5
SPACER, BEARING
1PD-25317-00-00
Unavailable
8
.. WASHER, PLATE
92990-08600-00
Unavailable
16
COLLAR(3LD)
90387-160W0-00
Unavailable
17
OIL SEAL (23X)
93106-22019-00
Unavailable
18
WASHER
3YF-22149-00-00
Unavailable
19
COVER, THRUST 2
4X7-22129-00-00
Unavailable
20
PLUG
90338-23004-00
Unavailable
21
SHAFT, PIVOT
5LP-22141-00-00
Unavailable
22
WASHER, PLATE
90201-16018-00
Unavailable
23
NUT, SELF-LOCKING
90185-16002-00
Unavailable
24
ARM, RELAY
5TG-2217A-10-00
Unavailable
25
BEARING, CYLINDRICAL(3MH)
93315-32057-00
Unavailable
26
OIL SEAL
93109-20001-00
Unavailable
27
COLLAR
90387-12055-00
Unavailable
28
BEARING
93315-31758-00
Unavailable
29
COLLAR
90387-12030-00
Unavailable
30
BEARING, CYLINDRICAL(4RR)
93315-32052-00
Unavailable
31
OIL SEAL
93109-20001-00
Unavailable
32
COLLAR
90387-12020-00
Unavailable
33
COVER, THRUST 1
5TG-22128-00-00
Unavailable
34
BOLT, FLANGE
90105-12038-00
Unavailable
35
NUT, SELF-LOCKING
95602-12200-00
Unavailable
36
BOLT, FLANGE
90105-12040-00
Unavailable
37
NUT, SELF-LOCKING
95602-12200-00
Unavailable
38
ROD, CONNECTING 1
5D3-2217F-00-00
Unavailable
39
BEARING
93315-31758-00
Unavailable
40
OIL SEAL
93109-17071-00
Unavailable
41
COLLAR
90387-12019-00
Unavailable
42
BOLT, FLANGE
90105-12039-00
Unavailable
43
NUT, SELF-LOCKING
95602-12200-00
Unavailable
44
SEAL, GUARD
5TG-22151-00-00
Unavailable
45
BOLT
90109-06172-00
Unavailable
46
GUARD SUB ASSY
5TG-22360-11-00
Unavailable
47
BOLT, FLANGE
95817-06025-00
Unavailable
48
COLLAR
90387-06151-00
Unavailable
49
WASHER, PLATE
90201-06088-00
Unavailable
50
HOLDER, BRAKE HOSE
5TG-25887-10-00
Unavailable
51
HOLDER, BRAKE HOSE
5TG-25886-10-00
Unavailable
52
BOLT, FLANGE
90105-06090-00
Unavailable
