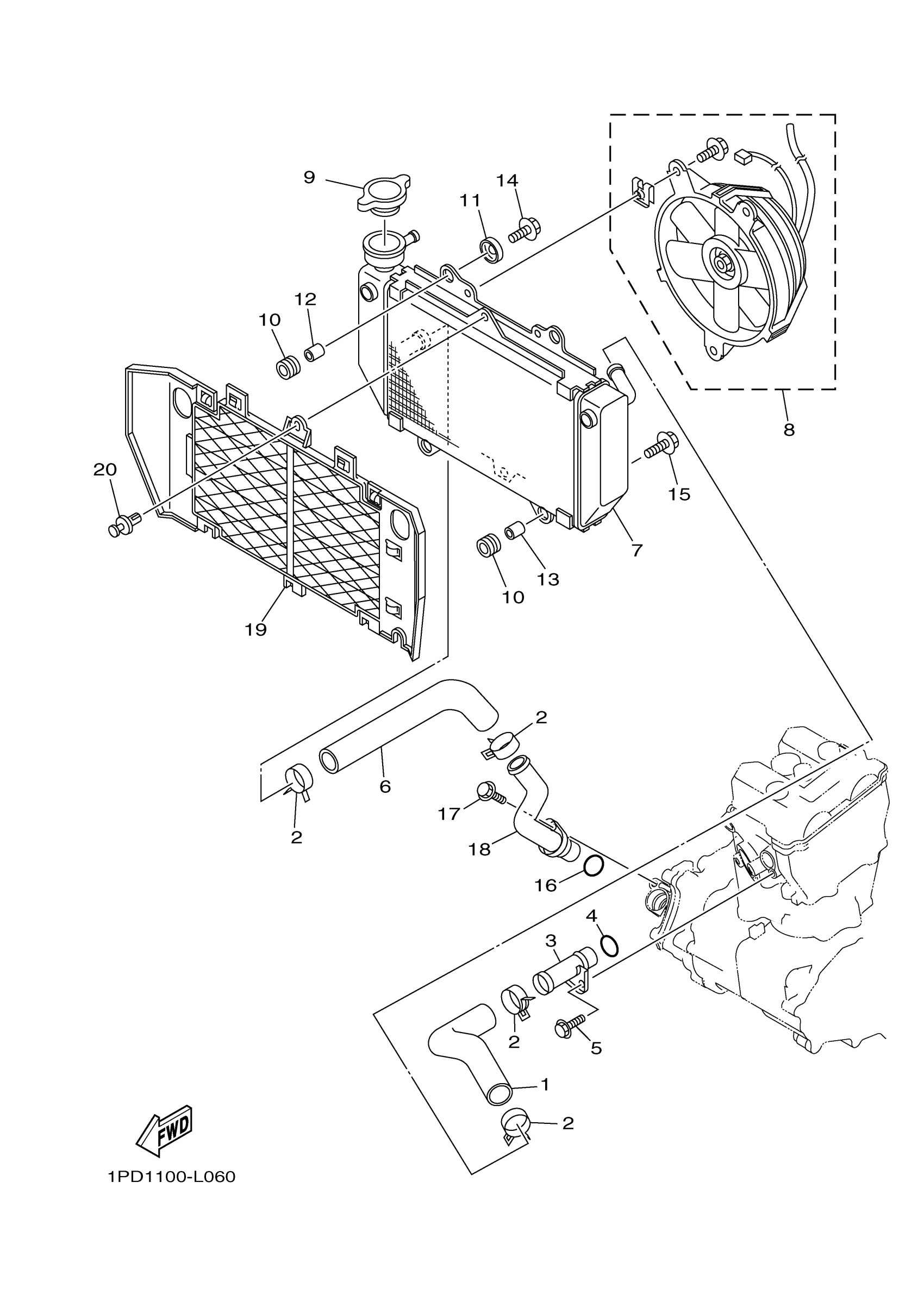

Yamaha YFZ45DW (YFZ450) 1PD41 2013 RADIATOR HOSE Diagram

#

Description
Price

1

HOSE 1

5TG-12576-00-00

Unavailable

2

CLIP (10V)

90467-23067-00

$7.49

3

PIPE 1

5TG-12481-00-00

$27.99

4

O-RING (5U8)

93210-16500-00

$7.49

5

BOLT, FLANGE

95022-06012-00

$3.29

6

HOSE 2

5TG-12577-00-00

$17.49

7

RADIATOR ASSY

5TG-12461-10-00

$423.99

8

BLOWER ASSY

5TG-12405-00-00

$359.99

9

CAP, RADIATOR

5SL-12462-01-00

$29.99

10

GROMMET(2GH)

90480-12475-00

$8.49

11

WASHER

90209-06012-00

$5.60

12

COLLAR

90387-06113-00

$11.49

13

COLLAR

90387-07020-00

$8.49

14

BOLT, FLANGE

95817-06020-00

$3.81

15

BOLT, FLANGE

95822-06025-00

$1.75

16

O-RING (5U8)

93210-16500-00

$7.49

17

BOLT, FLANGE

95022-06012-00

$3.29

18

PIPE 2

5TG-12482-00-00

Unavailable

19

COVER, RADIATOR

5TG-12467-10-00

Unavailable

20

RIVET(4JH)

90269-07076-00

Unavailable
