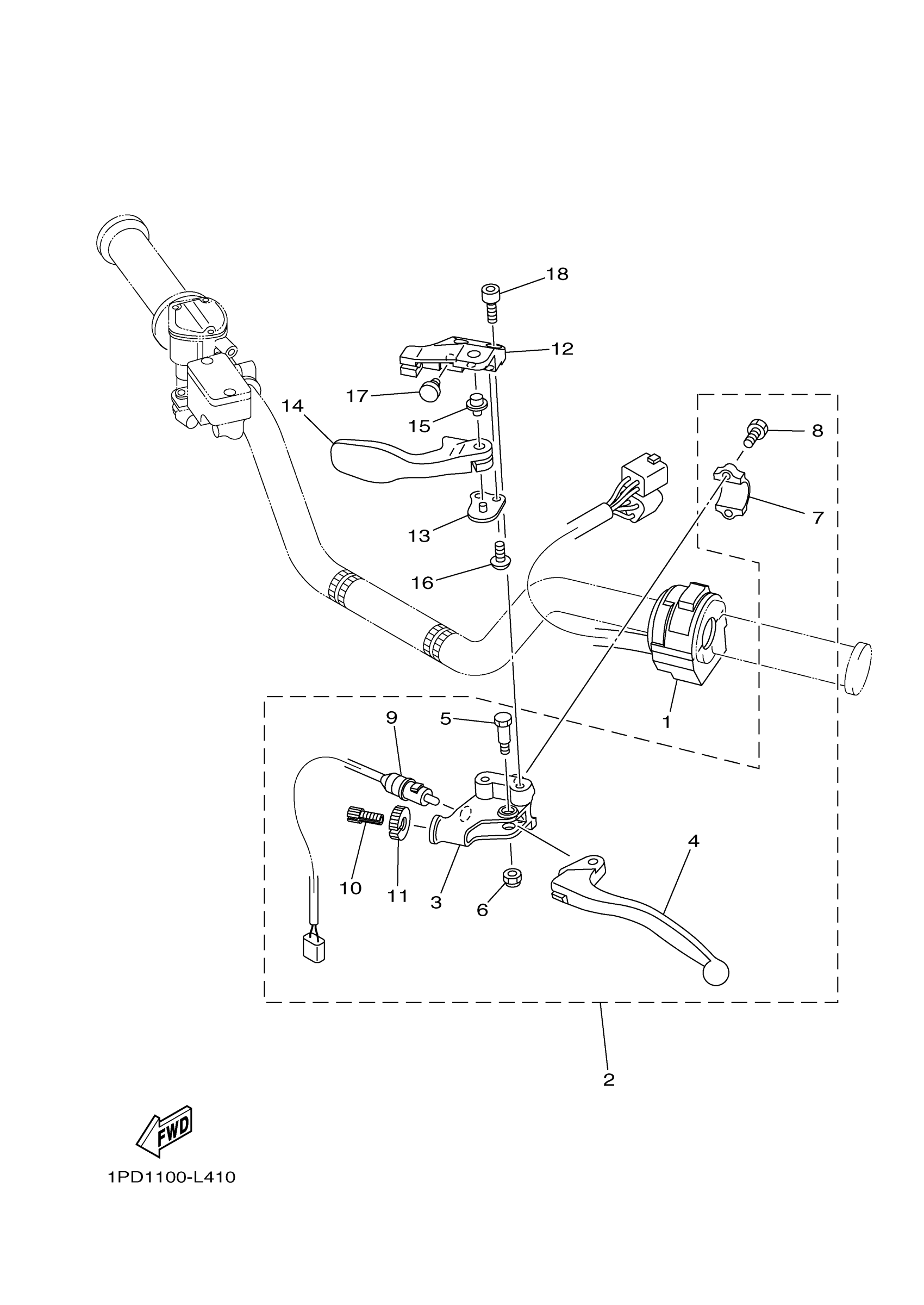

Yamaha YFZ45DW (YFZ450) 1PD41 2013 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

SWITCH, HANDLE 3

4KB-83973-22-00

Unavailable

2

LEVER HOLDER ASSY (LEFT)

4D3-82910-02-00

$81.99

3

HOLDER, LEVER 1

5YT-82911-10-00

Unavailable

4

LEVER 1

3RN-83912-01-00

Unavailable

5

BOLT(1FG)

90109-06798-00

$8.49

6

NUT, SELF-LOCKING

95617-06100-00

$8.49

7

HOLDER, LEVER LOWER 1

5TG-82913-00-00

$9.99

8

BOLT(6A1)

97095-05016-00

$1.11

9

SWITCH

5KM-82917-00-00

$58.99

10

BOLT

90123-08002-00

$10.49

11

NUT

90179-08030-00

$5.49

12

BRACKET, LEVER

5TG-25727-01-00

$49.99

13

PLATE, GUIDE

5D3-25689-00-00

$7.99

14

LEVER, BRAKE

5TG-25726-01-00

$30.99

15

COLLAR, LEVER 2

5TG-83923-00-00

$14.49

16

BOLT, BUTTON HEAD

92012-06014-00

Unavailable

17

PLUG

90338-07007-00

Unavailable

18

BOLT, BUTTON

92014-06016-00

Unavailable
