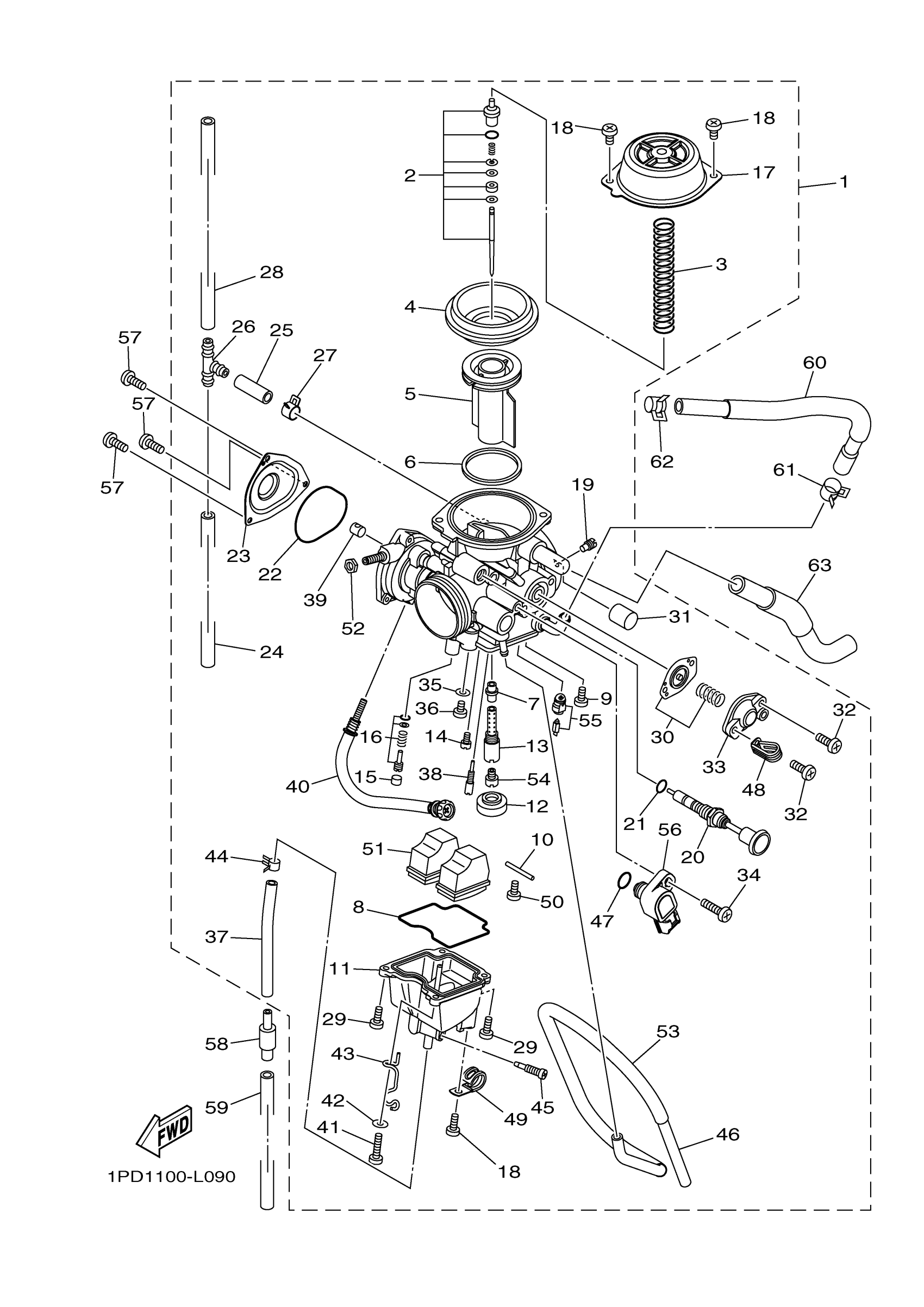

Yamaha YFZ45DW (YFZ450) 1PD41 2013 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY 1

1PD-14901-00-00

$623.99

2

NEEDLE SET

1PD-1490J-00-00

Unavailable

3

SPRING, DIAPHRAGM

5LV-14933-00-00

Unavailable

4

DIAPHRAGM

1PD-24411-00-00

Unavailable

5

VALVE, THROTTLE

5KM-14912-00-00

Unavailable

6

RING

5KM-14918-00-00

$11.99

7

NOZZLE, MAIN

5DM-14141-30-00

$35.99

8

O-RING

5DM-14561-00-00

$17.49

9

SCREW

1FN-14565-00-00

$7.99

10

PIN, FLOAT

127-14186-00-00

$6.65

11

. BODY, FLOAT CHAMBER

1PD-14981-00-00

Unavailable

12

WASHER, MAIN JET

5V7-14153-00-00

$22.99

13

. HOLDER

1PD-14261-00-00

Unavailable

14

JET, MAIN (# 55)

3G2-14231-11-00

$13.49

15

CAP

3F9-14118-00-00

Unavailable

16

PILOT SCREW SET

1PD-14105-00-00

Unavailable

17

COVER, DIAPHRAGM

5KM-14958-10-00

Unavailable

18

GASKET, EXHAUST

98507-05008-00

Unavailable

19

JET, MAIN (#105)

1HX-14231-21-00

Unavailable

20

PLUNGER, STARTER

1PD-14993-00-00

Unavailable

21

O-RING

1AE-14147-00-00

Unavailable

22

O-RING

4WV-14147-10-00

Unavailable

23

. COVER 1

1PD-14293-00-00

Unavailable

24

PIPE

1PD-14197-00-00

Unavailable

25

PIPE

1PD-14197-10-00

Unavailable

26

PIPE, JOINT

3H3-24376-00-00

Unavailable

27

CLIP, PIPE

4BP-14139-01-00

Unavailable

28

PIPE

1PD-14197-20-00

Unavailable

29

SCREW, PAN HEAD(6G8)

98507-04010-00

Unavailable

30

DIAPHRAGM SET 5

5KM-1490H-00-00

Unavailable

31

CAP

5KM-14968-00-00

Unavailable

32

SCREW,W/WASHER

97607-04114-00

Unavailable

33

COVER, CARBURETOR

5AP-14280-00-00

Unavailable

34

SCREW

21C-14216-00-00

Unavailable

35

WASHER

256-14956-01-00

Unavailable

36

SCREW

3DM-14216-00-00

Unavailable

37

HOSE

4DG-14987-00-00

Unavailable

38

JET, PILOT (# 47.5)

4KM-14142-47-00

Unavailable

39

GUIDE, CABLE

1UY-14155-00-00

Unavailable

40

THROTTLE SCREW SET

1PD-14103-00-00

Unavailable

41

SCREW, PAN HEAD(N15)

98507-04014-00

Unavailable

42

WASHER, PLAIN (646)

92990-04600-00

Unavailable

43

CLIP

5KM-14937-00-00

Unavailable

44

CLIP (8A1)

90467-09026-00

Unavailable

45

PLUG, DRAIN

12R-14191-00-00

Unavailable

46

PIPE

1PD-14197-30-00

Unavailable

47

O-RING

5YP-14561-00-00

Unavailable

48

PLATE

3XV-14243-00-00

Unavailable

49

PLATE

3JC-14146-00-00

Unavailable

50

SCREW, PAN HEAD(JG1)

98507-04008-00

Unavailable

51

FLOAT

5DM-14985-00-00

Unavailable

52

NUT, CABLE ADJUSTING

522-14161-00-00

Unavailable

53

PIPE

1PD-14197-40-00

Unavailable

54

. JET, MAIN (#1525)

620-1423A-81-00

Unavailable

55

NEEDLE VALVE SET

1PD-14107-00-00

Unavailable

56

THROTTLE SENSOR ASSY

1PD-85885-00-00

Unavailable

57

BOLT

91312-04006-00

Unavailable

58

PIPE 2,OVERFLOW

24W-14193-00-00

Unavailable

59

TUBE, FLEXIBLE(3NV)

91A21-07020-00

Unavailable

60

PIPE, FUEL 1

5TG-24311-20-00

Unavailable

61

CLIP

90467-120A5-00

Unavailable

62

CLIP

90467-100A2-00

Unavailable

63

PIPE

1PD-14349-00-00

Unavailable
