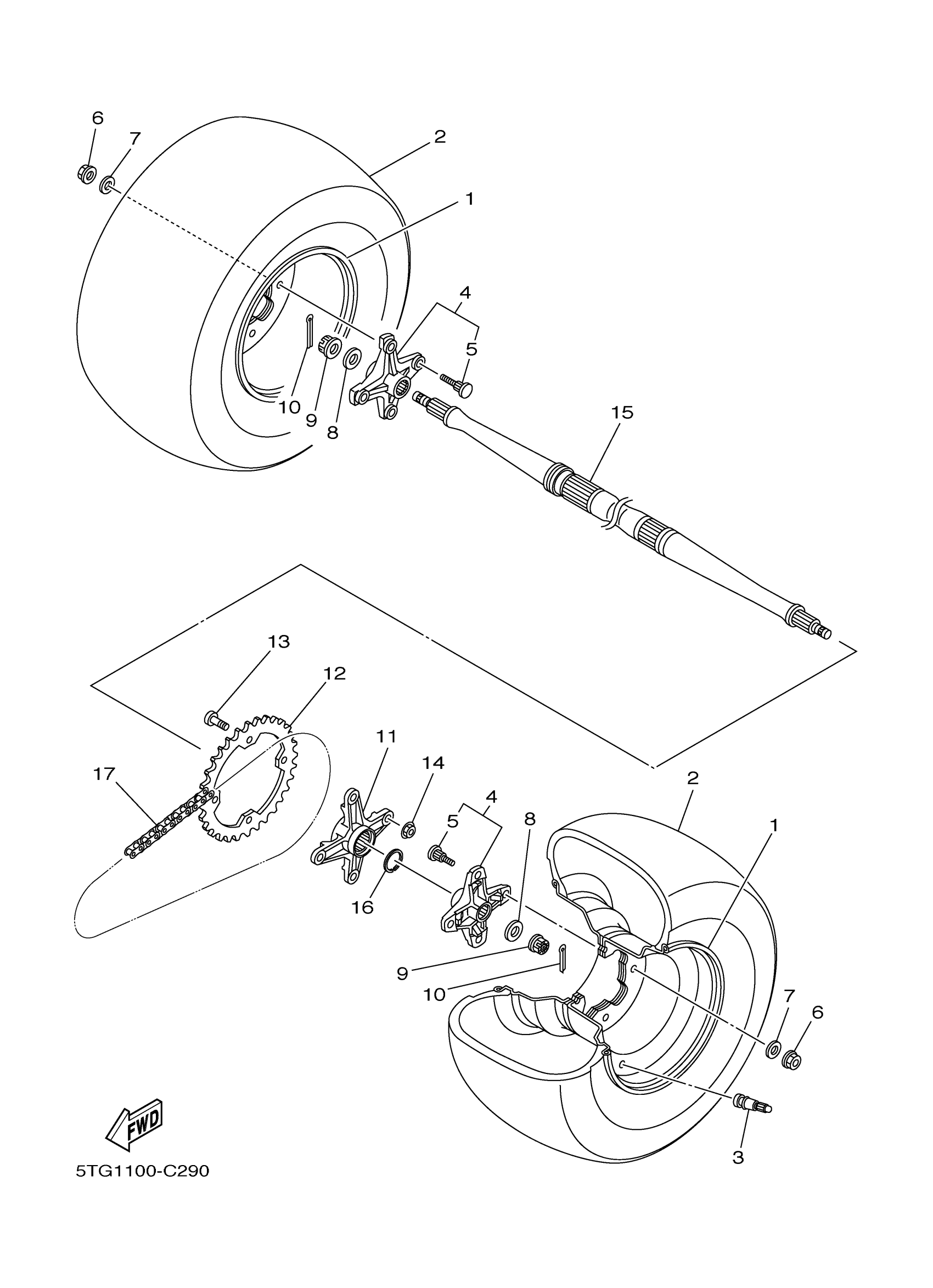

Description

Price

1

REAR WHEEL COMP.

1S3-25390-00-YX

$280.83

2

TIRE

94110-09015-00

$302.70

3

VALVE, RIM(2GH)

93900-00030-00

$13.50

4

WHEEL SHAFT COLLAR ASSY.

1PE-F53K0-00-00

$64.97

5

BOLT, SERRATION

90114-10013-00

$4.26

6

NUT, FLANGE(3BM)

95704-10500-00

$1.68

7

958-69527-00 WASHER, PLAIN

92990-10200-00

$2.67

8

WASHER, PLATE

90201-16023-00

$6.34

9

NUT, CASTLE

90171-16002-00

$16.44

10

PIN, COTTER

90252-03001-00

$1.68

11

COLLAR, SPROCKET AXLE

1S3-25386-00-00

$136.79

12

SPROCKET, DRIVEN (38T)

5TG-25438-10-00

$35.26

13

BOLT

90109-10013-00

$5.70

14

NUT, SELF-LOCKING

90185-10011-00

$3.67

15

AXLE, WHEEL

5D3-25381-00-00

$504.61

16

CIRCLIP

1S3-25415-00-00

Unavailable

17

CHAIN

94582-38096-00
