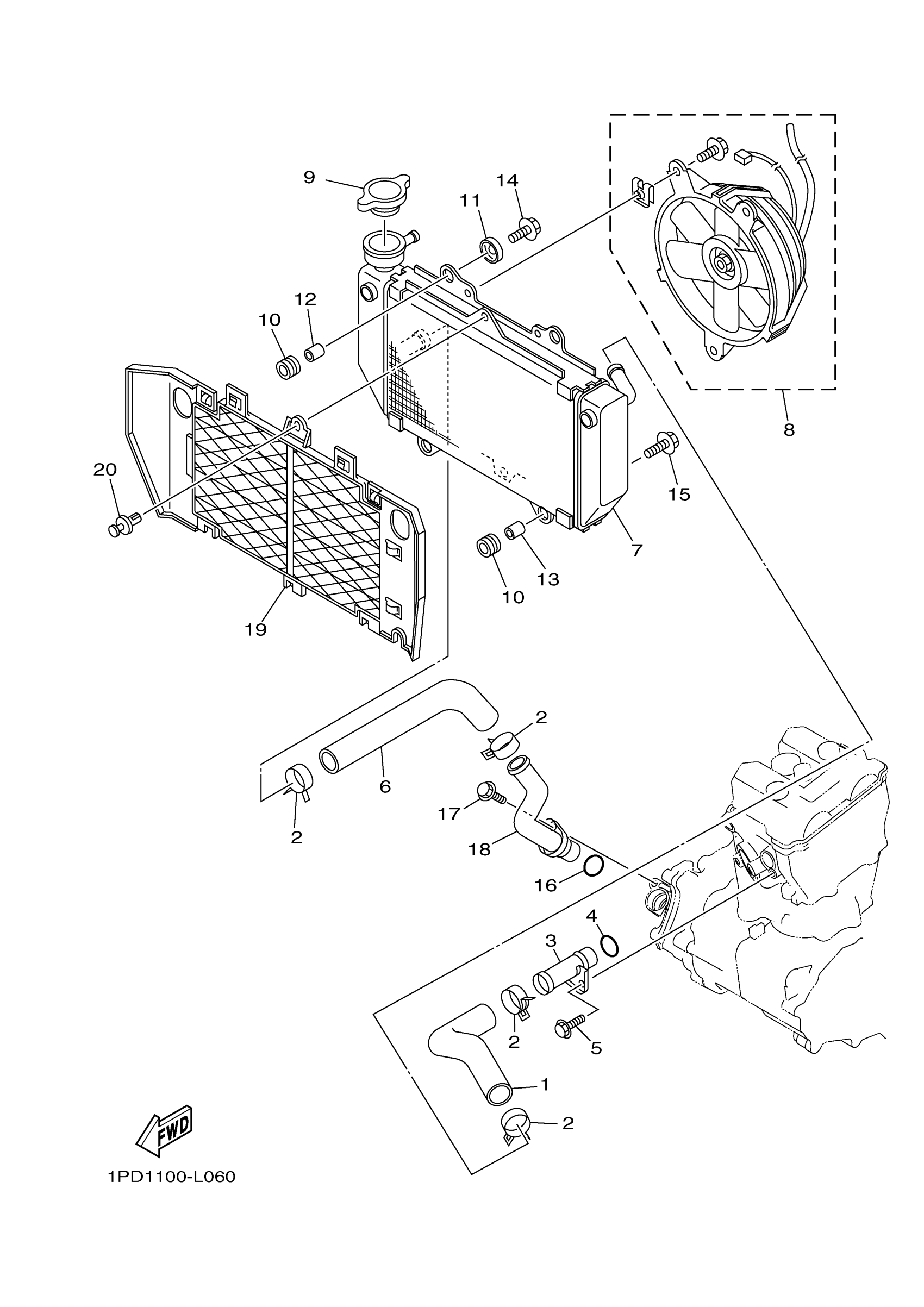

Yamaha YFZ45BW (YFZ450) 1PD10 2012 RADIATOR HOSE Diagram

#

Description
Price

1

HOSE 1

5TG-12576-00-00

Unavailable

2

CLIP (10V)

90467-23067-00

$3.71

3

PIPE 1

5TG-12481-00-00

$22.12

4

O-RING (5U8)

93210-16500-00

$4.58

5

BOLT, FLANGE

95022-06012-00

$2.80

6

HOSE 2

5TG-12577-00-00

$13.76

7

RADIATOR ASSY

5TG-12461-10-00

$414.76

8

BLOWER ASSY

5TG-12405-00-00

$382.47

9

CAP, RADIATOR

5SL-12462-01-00

Unavailable

10

GROMMET(2GH)

90480-12475-00

$6.22

11

WASHER

90209-06012-00

$4.40

12

COLLAR

90387-06113-00

$9.81

13

COLLAR

90387-07020-00

$5.75

14

BOLT, FLANGE

95817-06020-00

$2.52

15

BOLT, FLANGE

95822-06025-00

$1.37

16

O-RING (5U8)

93210-16500-00

$4.58

17

BOLT, FLANGE

95022-06012-00

$2.80

18

PIPE 2

5TG-12482-00-00

Unavailable

19

COVER, RADIATOR

5TG-12467-10-00

Unavailable

20

RIVET(4JH)

90269-07076-00

Unavailable
