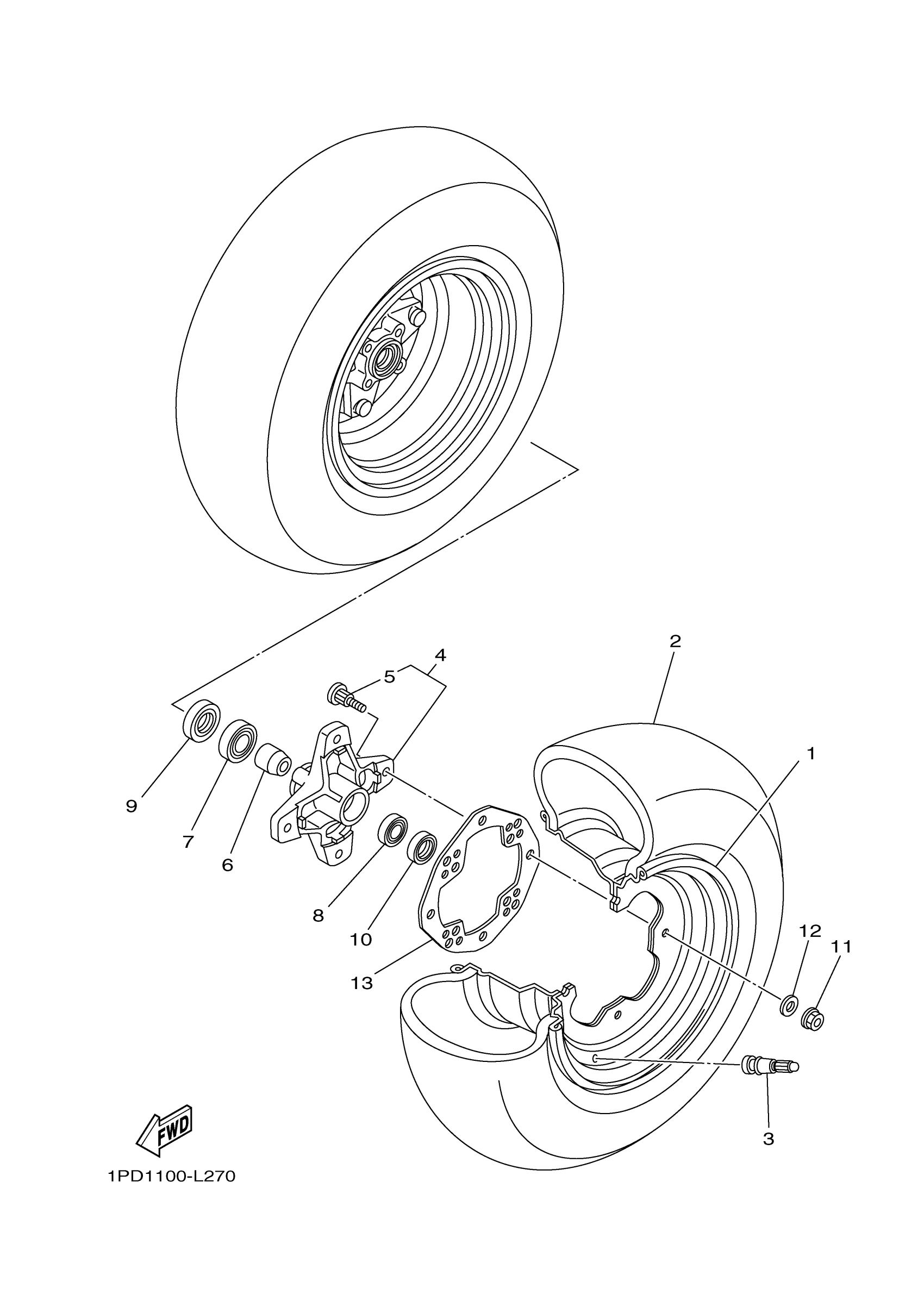

Yamaha YFZ45BW (YFZ450) 1PD10 2012 FRONT WHEEL Diagram

#

Description
Price

1

WHEEL COMP.

1S3-25180-00-YX

$265.99

2

AT21X7-10 KT851 DUNLOP

94107-10020-00

Unavailable

3

VALVE, RIM(2GH)

93900-00030-00

$16.99

4

HUB, FRONT

1PE-F5111-00-00

$141.99

5

BOLT, SERRATION

90114-10006-00

$5.60

6

SPACER, BEARING

5LP-25117-00-00

$17.49

7

BEARING

93306-00446-00

$43.99

8

. BEARING

93306-20231-00

Unavailable

9

OIL SEAL(1UY)

93105-26026-00

$12.49

10

OIL SEAL (7H5)

93102-22216-00

$11.49

11

NUT, FLANGE(3BM)

95704-10500-00

$4.29

12

958-69527-00 WASHER, PLAIN

92990-10200-00

$3.72

13

COVER, PLATE

1S3-25127-01-00

Unavailable
