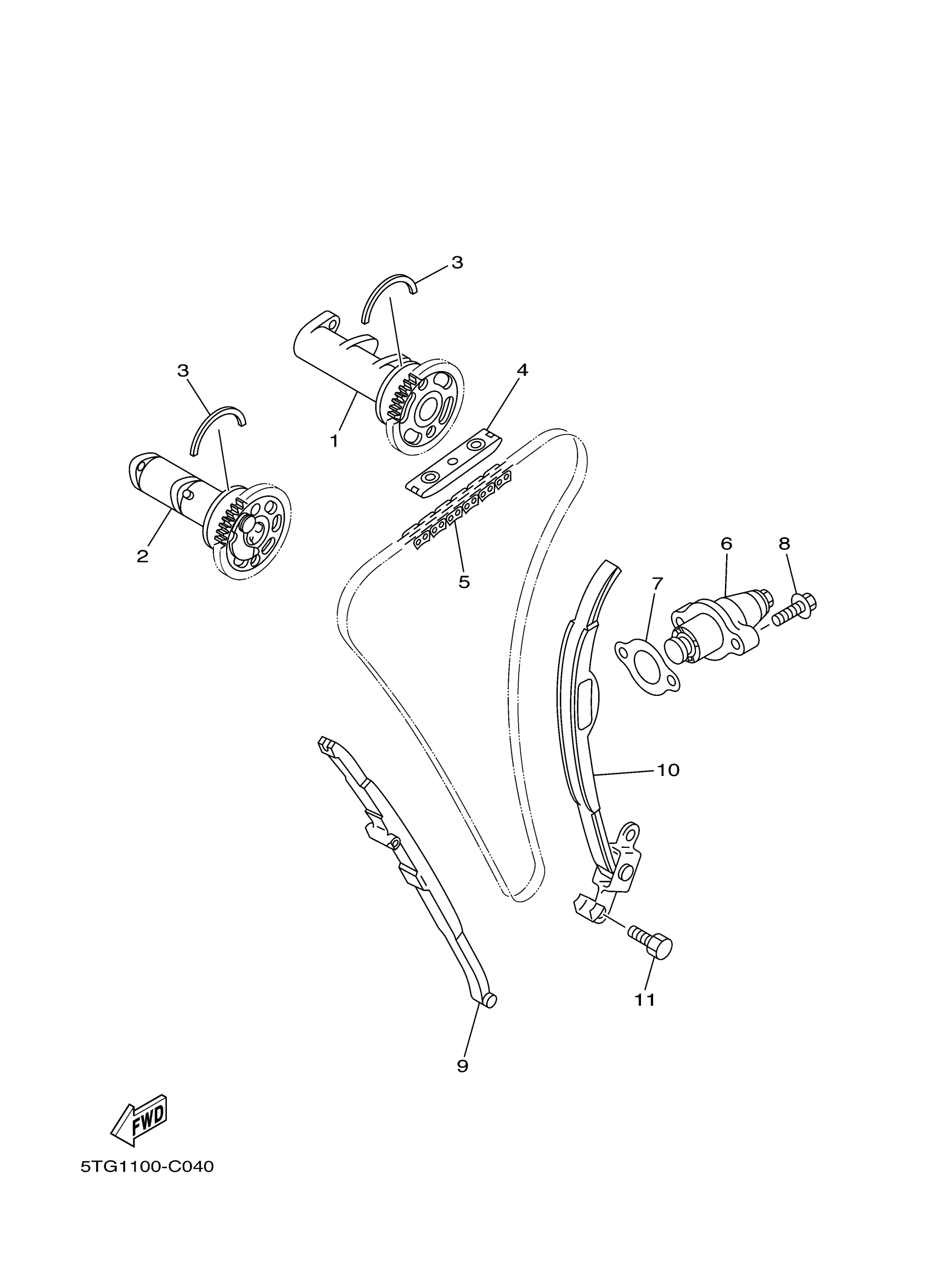

Yamaha YFZ45BW (YFZ450) 1PD10 2012 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT ASSY 1

1PD-12170-00-00

Unavailable

2

CAMSHAFT ASSY 2

1PD-12180-00-00

Unavailable

3

CIRCLIP

93440-41178-00

$3.18

4

GUIDE, STOPPER 2

5BE-12241-01-00

$23.85

5

CHAIN

94591-57118-00

$29.63

6

TENSIONER ASSY, CAM CHAIN

5TA-12210-30-00

$106.39

7

GASKET, TENSIONER CASE

4FM-12213-00-00

$7.05

8

BOLT, FLANGE

95022-06025-00

$1.37

9

DAMPER, CHAIN 1

5TA-12251-02-00

Unavailable

10

DAMPER, CHAIN 2

5TA-12252-01-00

Unavailable

11

BOLT, STOPPER

5TG-12299-00-00

Unavailable
