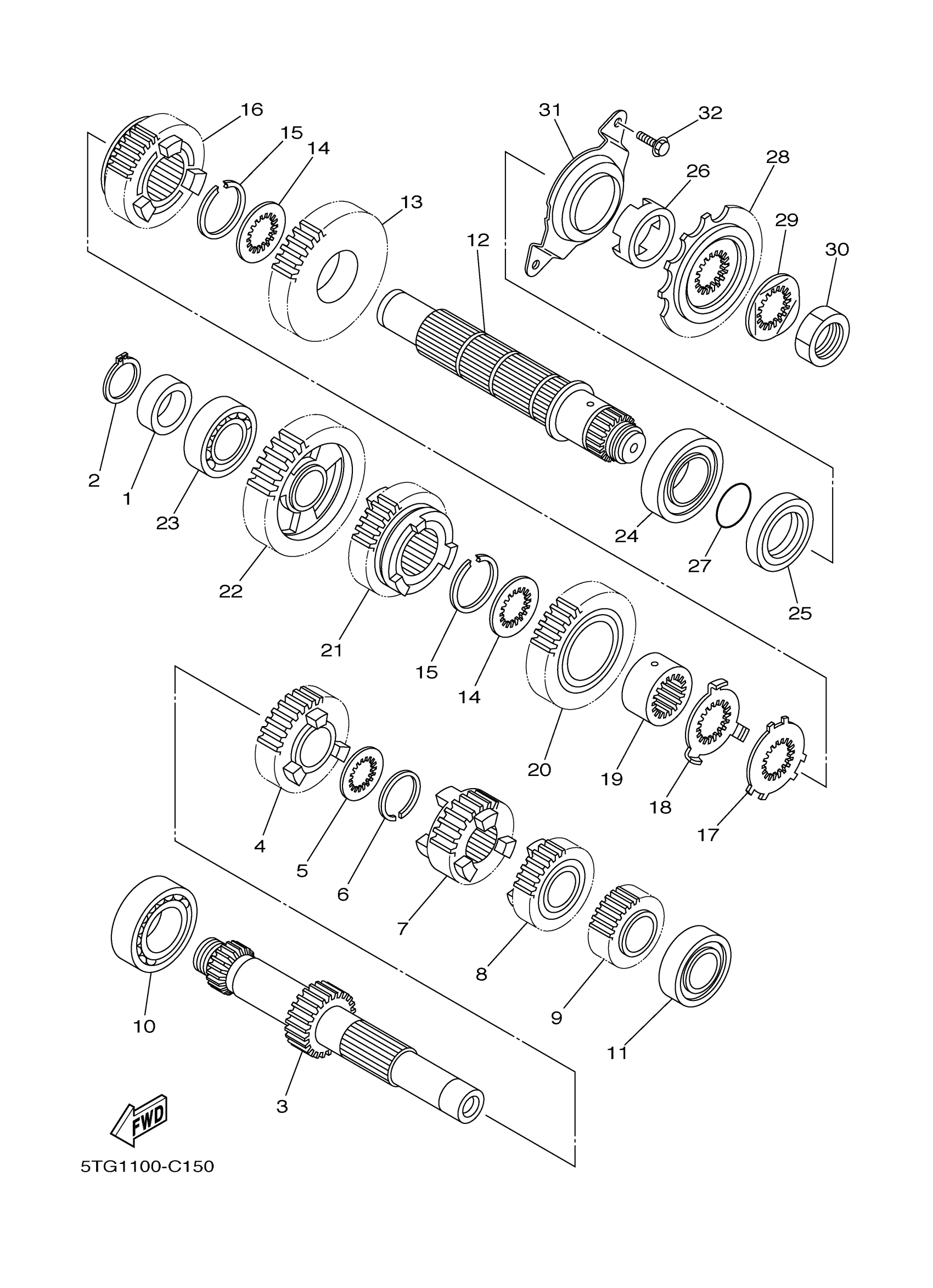

Yamaha YFZ450YW (YFZ450) 5D3M0 2009 TRANSMISSION Diagram

#

Description
Price

1

COLLAR (26H)

90387-204H5-00

$16.99

2

CIRCLIP(1AR)

99009-20400-00

$8.49

3

AXLE, MAIN

5TG-17411-00-00

Unavailable

4

GEAR, 5TH PINION

5TG-17151-00-00

$81.99

5

WASHER(3VD)

90209-21332-00

$7.49

6

CIRCLIP (4L0)

93440-25084-00

$5.60

7

GEAR, 3RD PINION

5TG-17131-00-00

$126.99

8

GEAR, 4TH PINION

5TG-17141-00-00

Unavailable

9

GEAR, 2ND PINION

5TG-17121-00-00

$39.99

10

BEARING

93306-20532-00

$66.99

11

BEARING (34L)

93306-00431-00

$41.99

12

DRIVE AXLE ASSY

5TG-17402-00-00

Unavailable

13

GEAR, 2ND WHEEL

5TG-17221-00-00

$111.99

14

WASHER

90209-25342-00

$7.49

15

CIRCLIP (2H7)

93440-28062-00

$8.49

16

GEAR, 4TH WHEEL

5TG-17241-00-00

Unavailable

17

WASHER

90209-25349-00

Unavailable

18

WASHER

90209-25350-00

Unavailable

19

COLLAR

90387-2810U-00

Unavailable

20

GEAR, 3RD WHEEL

5TG-17231-00-00

Unavailable

21

GEAR, 5TH WHEEL

5TG-17251-00-00

Unavailable

22

GEAR, 1ST WHEEL

5BF-17211-00-00

Unavailable

23

BEARING (5Y1)

93306-00426-00

Unavailable

24

BEARING

93306-20593-00

Unavailable

25

OIL SEAL

93102-32480-00

Unavailable

26

COLLAR

90387-2513F-00

Unavailable

27

O-RING

93210-22298-00

Unavailable

28

SPROCKET, DRIVE

5NG-17460-00-00

Unavailable

29

WASHER, LOCK

90215-21003-00

Unavailable

30

NUT

90179-20001-00

Unavailable

31

PLATE, COVER

5GR-17471-10-00

Unavailable

32

BOLT, FLANGE

95022-06016-00

Unavailable
