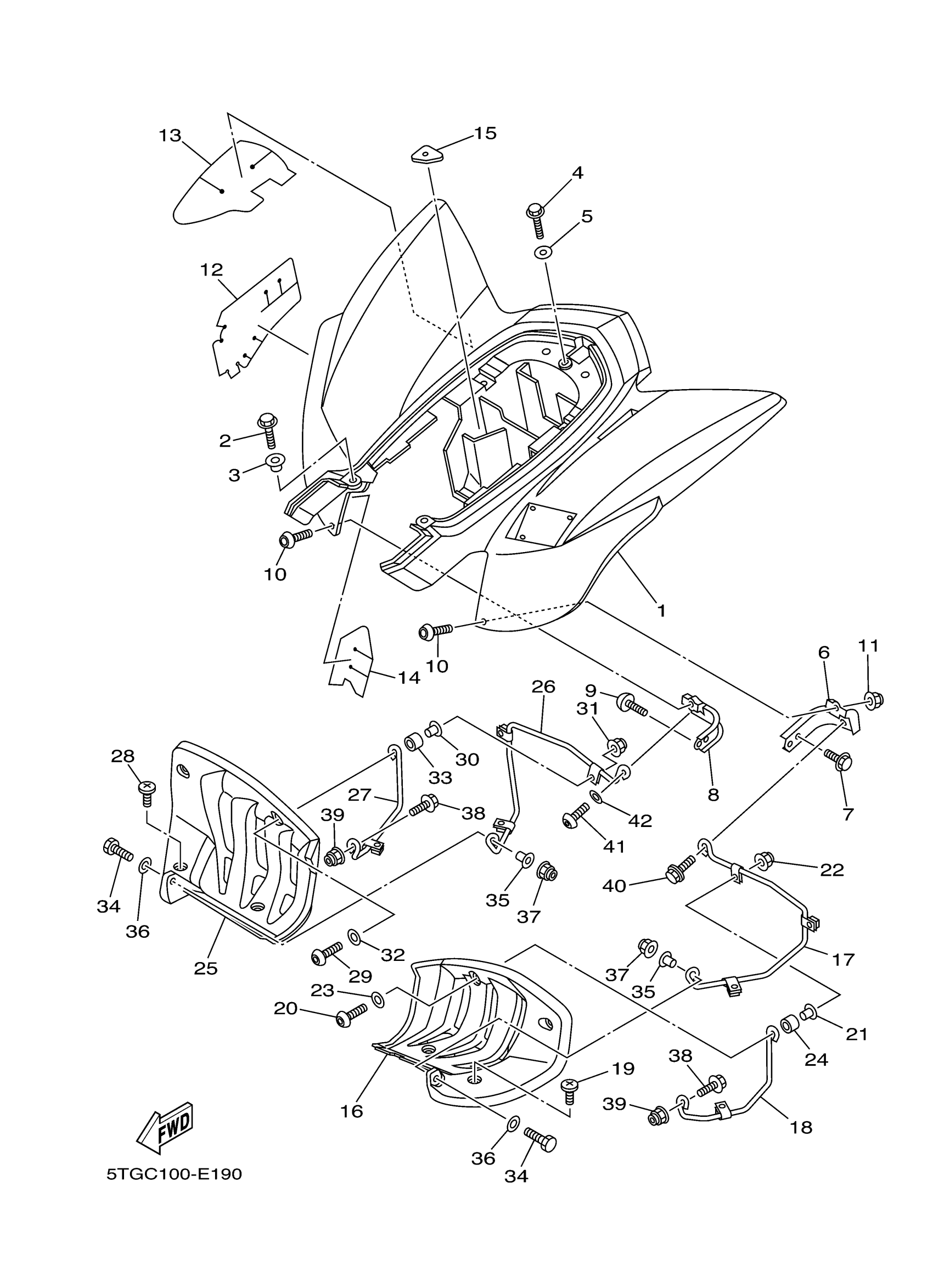

Yamaha YFZ450YW (YFZ450) 5D3M0 2009 REAR FENDER Diagram
#
Description
Price
1
REAR FENDER COMP. (DEEP PURPLISH BLUE SOLID E)
5TG-W2161-03-00
Unavailable
16
FLAP
5TG-21621-00-00
Unavailable
17
STAY 1
5D3-2164F-10-00
Unavailable
18
STAY 3
5D3-2164H-10-00
Unavailable
19
SCREW, BINDING (10V)
90154-05013-00
Unavailable
20
BOLT, BUTTON HEAD
92012-06035-00
Unavailable
21
SPACER (4F2)
90560-06201-00
Unavailable
23
WASHER, PLATE
90201-06380-00
Unavailable
24
COLLAR
90387-06197-00
Unavailable
25
FLAP
5TG-21691-00-00
Unavailable
26
STAY 2
5D3-2164G-10-00
Unavailable
27
STAY 4
5D3-2164J-10-00
Unavailable
28
SCREW, BINDING (10V)
90154-05013-00
Unavailable
29
BOLT, BUTTON HEAD
92012-06035-00
Unavailable
30
SPACER (4F2)
90560-06201-00
Unavailable
32
WASHER, PLATE
90201-06380-00
Unavailable
33
COLLAR
90387-06197-00
Unavailable
34
BOLT, HEXAGON
97017-06025-00
Unavailable
35
COLLAR
90387-06204-00
Unavailable
36
WASHER, PLATE
90201-06093-00
Unavailable
38
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
39
NUT, SELF-LOCKING
95602-08200-00
Unavailable
40
BOLT, FLANGE
95814-08016-00
Unavailable
41
BOLT, BUTTON HEAD
92012-08020-00
Unavailable
42
WASHER, PLATE
90201-08043-00
Unavailable
