Description

Price

1

FRONT FENDER COMP. (DEEP PURPLISH BLUE SOLID E)

5TG-W2151-01-00

Unavailable

2

BOLT, FLANGE

95817-06016-00

$2.75

3

GROMMET

90480-15006-00

$7.49

4

COLLAR (11G)

90387-061F9-00

$8.49

5

BOLT,HEX. SOCKET BUTTON

90111-05059-00

$2.12

6

NUT, SPRING

90183-05008-00

$9.49

7

NUT, U FLANGE

95604-06200-00

$8.49

8

BOLT

90111-06038-00

$4.29

9

CLAMP(4BD)

90464-48174-00

$3.50

10

STAY, FENDER 1

5TG-21513-10-00

$72.99

11

COVER, SIDE 1

5TG-21711-00-00

$103.99

12

COVER, SIDE 2

5TG-21721-00-00

Unavailable

13

BOLT

90109-06172-00

$7.49

14

RIVET

90269-06002-00

$8.49

15

COVER, TOP (DEEP PURPLISH BLUE SOLID E)

5TG-2171A-00-00

Unavailable

16

DAMPER 1

5TG-21541-00-00

Unavailable

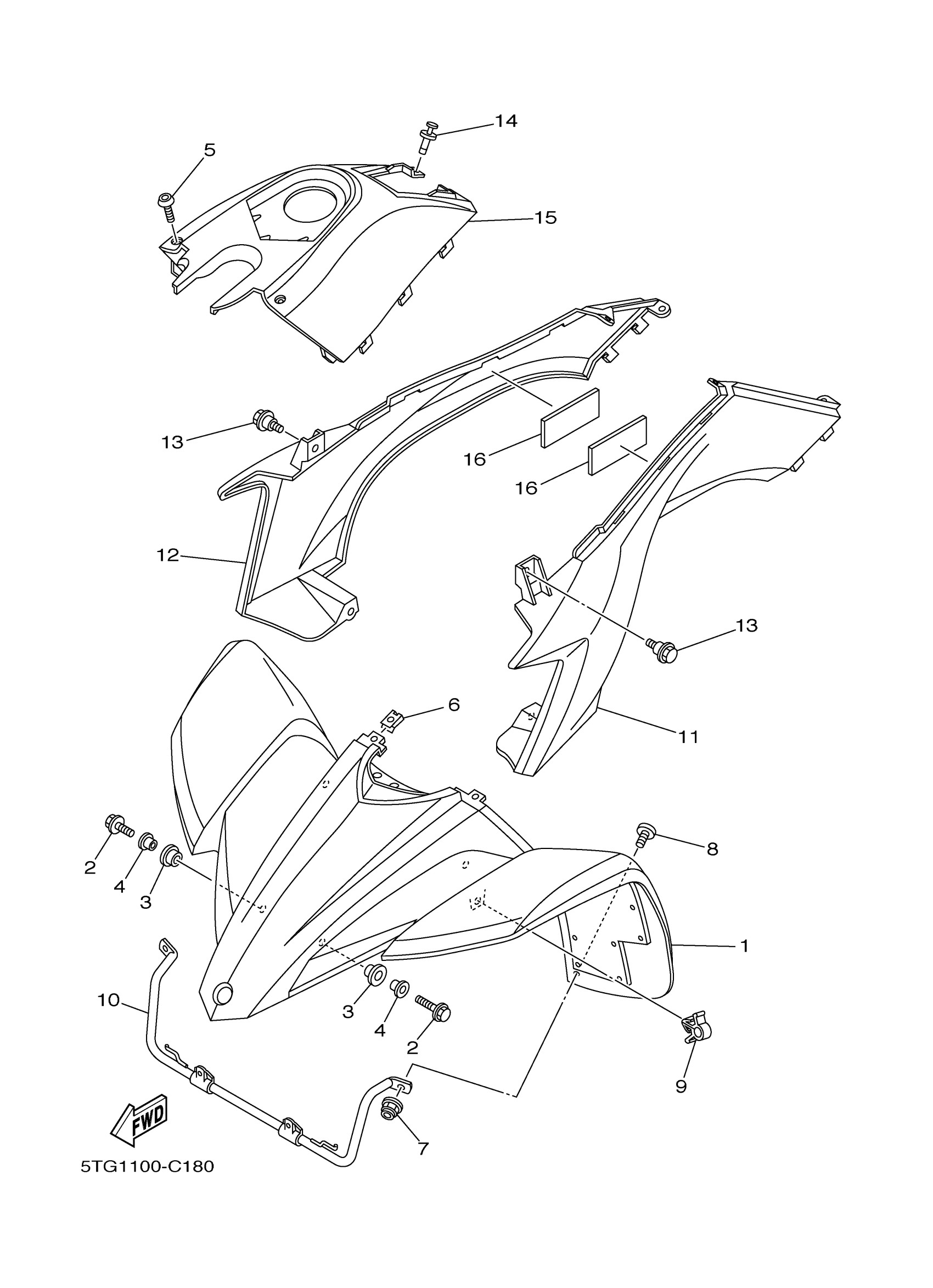

Yamaha YFZ450YW (YFZ450) 5D3M0 2009 FRONT FENDER Diagram

FRONT FENDER COMP. (DEEP PURPLISH BLUE SOLID E)

BOLT, FLANGE

GROMMET

COLLAR (11G)

BOLT,HEX. SOCKET BUTTON

NUT, SPRING

NUT, U FLANGE

BOLT

CLAMP(4BD)

STAY, FENDER 1

COVER, SIDE 1

COVER, SIDE 2

BOLT

RIVET

COVER, TOP (DEEP PURPLISH BLUE SOLID E)

DAMPER 1
