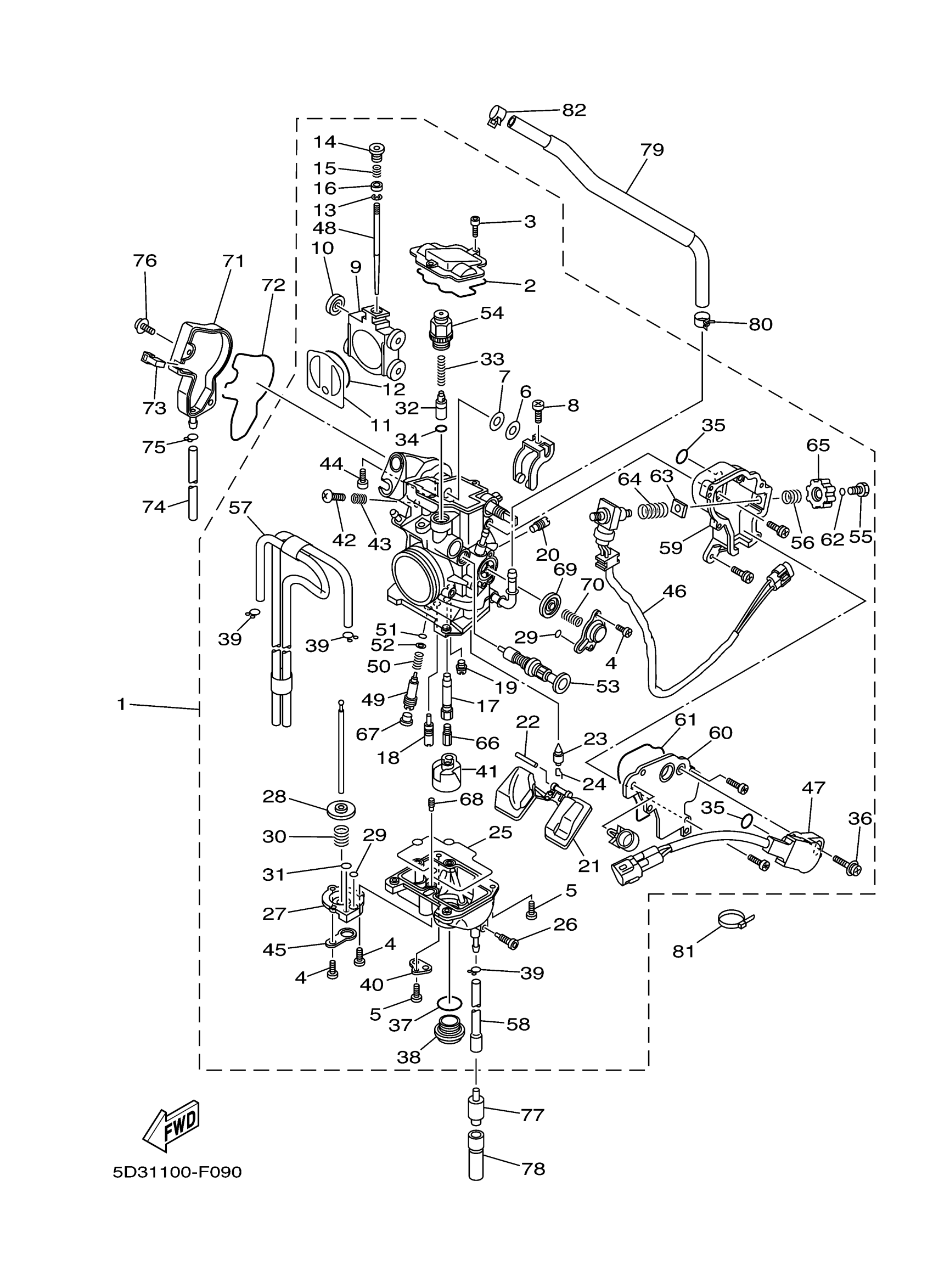

Yamaha YFZ450YL (YFZ450) 5D3M 2009 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY 1

5TG-14101-34-00

Unavailable

2

GASKET

5JG-14959-00-00

$21.37

3

BOLT, SOCKET

91317-04012-00

$6.17

4

SCREW, PAN HEAD (713)

98580-04008-00

$4.54

5

SCREW, PAN HEAD

98511-04012-00

Unavailable

6

WASHER, PLATE

90202-08045-00

$5.63

7

WASHER

5JG-14951-00-00

$4.17

8

SCREW, ADJUST

5JG-14522-09-00

$4.74

9

VALVE, VACUUM CONTROL

5JG-14388-00-00

$541.99

10

ROLLER

3TJ-14267-40-00

$14.28

11

VALVE, NEEDLE

5JG-14546-01-00

$274.20

12

SEAL

4FN-14997-00-00

$22.96

13

CLIP

3TJ-14159-40-00

$7.65

14

SCREW, ADJUST

5JG-14521-00-00

$27.35

15

SPRING

5JG-14275-00-00

$6.46

16

COLLAR

5JG-14264-00-00

Unavailable

17

JET, NEEDLE

5JG-14947-01-00

Unavailable

18

JET, PILOT (#48)

4MX-14948-06-00

$8.32

19

JET (#90)

3TJ-1494F-23-00

$14.25

20

JET, MAIN (#70)

5TA-14943-15-00

$14.75

21

FLOAT

4SR-14985-00-00

$57.57

22

. PIN, FLOAT ARM

663-14548-00-00

$5.34

23

VALVE, NEEDLE

4MX-14392-00-00

$38.01

24

CLIP

633-14159-00-00

$13.88

25

GASKET, FLOAT CHAMBER

5JG-14984-00-00

$23.49

26

PLUG, DRAIN

3TJ-14191-40-00

$17.22

27

COVER 1

3TJ-14293-40-00

$61.77

28

DIAPHRAGM ASSY

5JG-14940-17-00

$48.03

29

GASKET

3TJ-14536-40-00

$5.75

30

SPRING, DIAPHRAGM

3TJ-14933-40-00

$4.74

31

. O-RING

6H4-14561-00-00

$7.51

32

PLUNGER, STARTER

5TA-14371-00-00

$29.06

33

SPRING, PLUNGER

5TA-14335-00-00

$8.66

34

SEAL

5TA-14997-00-00

$13.02

35

O-RING

33D-14562-00-00

$6.88

36

SCREW

1DX-14216-00-00

$5.17

37

O-RING

4MX-14561-00-00

$5.91

38

PLUG, SCREW

4MX-14115-00-00

$28.22

39

CLIP

3TJ-14137-40-00

$6.43

40

PLATE

5BE-14146-00-00

$7.46

41

PLATE

5JG-14346-00-00

$35.43

42

SCREW

5JG-14565-00-00

$6.52

43

SPRING, ADJUST SCREW

5JG-14531-00-00

$6.52

44

SCREW

5JG-14591-09-00

$29.69

45

. PLATE

5PA-14146-00-00

Unavailable

46

SWITCH, CARBURETOR

5TG-8259A-00-00

$63.60

47

NEEDLE (#NDJQ)

5TG-85885-01-00

Unavailable

48

NEEDLE

5TG-14916-GR-00

$23.20

49

SCREW, PILOT

3TJ-14923-40-00

$45.95

50

COIL, SPRING

3TJ-14160-40-00

$11.72

51

O-RING

8ES-14147-00-00

$7.49

52

WASHER

3TJ-14952-40-00

$4.85

53

PLUNGER, STARTER

5TG-14171-00-00

$76.75

54

CAP

5TG-14225-00-00

$13.06

55

SCREW

5TG-14591-00-00

$30.66

56

SPRING

5TG-14935-00-00

$6.98

57

. PIPE

5TG-14197-00-00

Unavailable

58

. HOSE

5TG-14987-00-00

Unavailable

59

. COVER 1

5TG-14417-00-00

Unavailable

60

. COVER 2

5TG-14418-00-00

Unavailable

61

GASKET

5TG-14959-00-00

$29.37

62

O-RING

5TG-14561-00-00

$6.58

63

. PLATE

5TG-14255-00-00

Unavailable

64

SPRING, PLUNGER

5TG-14335-00-00

$9.12

65

HOLDER

5TG-14261-00-00

$13.69

66

JET, MAIN (#155)

4MX-14943-38-00

$10.60

67

CAP

5TJ-14118-00-00

$5.15

68

JET (#40)

4JT-1494F-03-00

$14.04

69

DIAPHRAGM ASSY

5GS-14940-00-00

$45.05

70

SPRING, DIAPHRAGM

5GS-14933-00-00

$7.34

71

COVER 1

5TA-14293-00-00

$37.21

72

GASKET

5TA-14227-00-00

$27.53

73

SEAL

5TA-14239-00-00

$16.57

74

HOSE

5TA-14987-00-00

$12.06

75

CLIP

3TJ-14137-40-00

$6.43

76

BOLT, HEXAGON SOCKET HEAD

90110-05038-00

$6.28

77

PIPE 2,OVERFLOW

24W-14193-00-00

$35.28

78

TUBE, FLEXIBLE VINYL

91A20-07004-00

Unavailable

79

PIPE, FUEL 1

5TG-24311-20-00

$47.45

80

CLIP

90467-120A5-00

$6.25

81

CLAMP(3SK)

90464-13133-00

$6.17

82

CLIP

90467-100A2-00

$6.25
