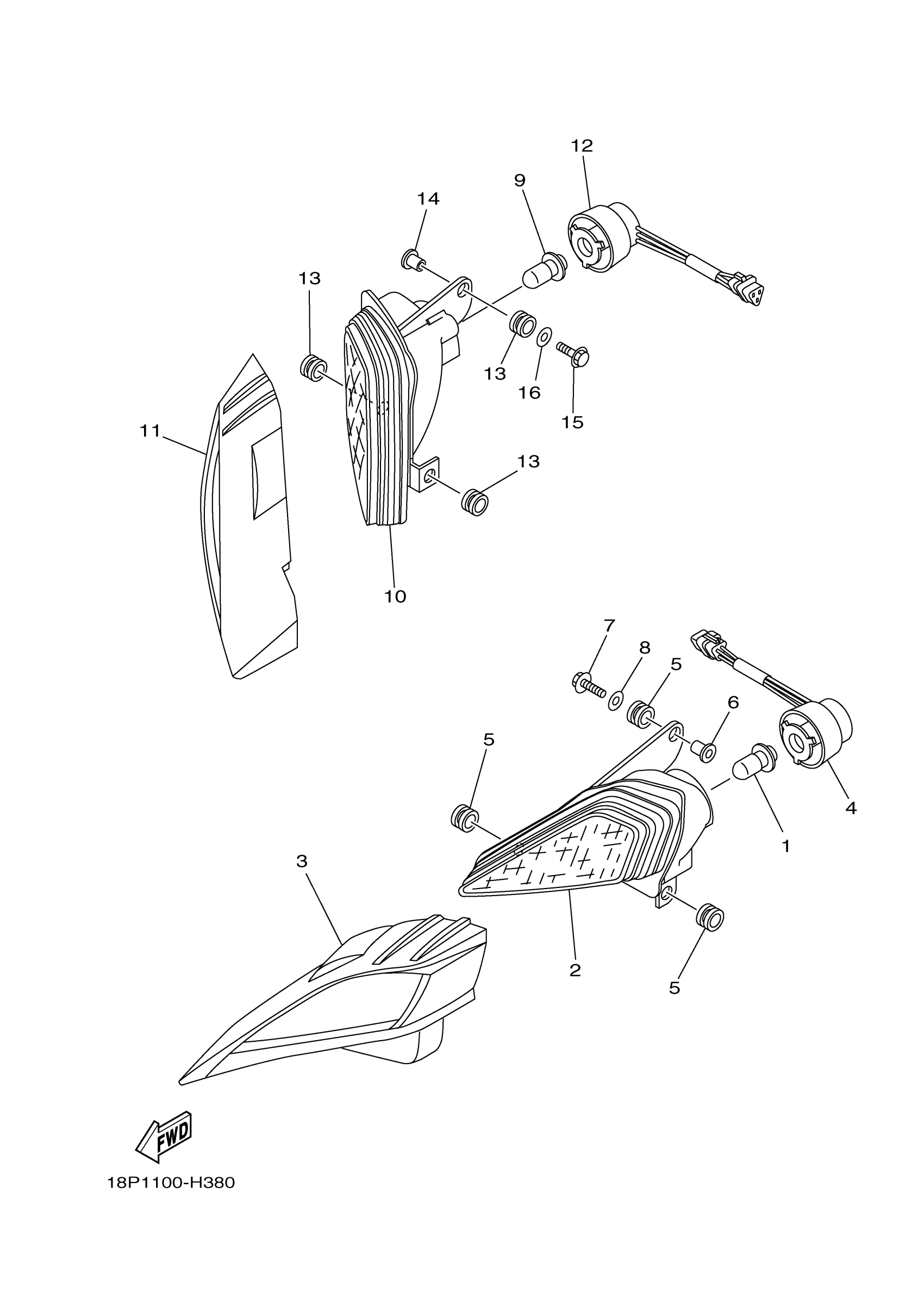

Yamaha YFZ450XZW (YFZ450X) 46D10 2010 HEADLIGHT Diagram

#

Description
Price

1

BULB, HEADLIGHT

4KB-84314-01-00

$38.99

2

HEADLIGHT UNIT ASSY

5TG-84110-03-00

$106.99

3

RIM, HEADLIGHT COVER 1

18P-84165-00-00

Unavailable

4

SOCKET CORD ASSY

5TG-84140-01-00

$41.99

5

GROMMET 839774310000

90480-14023-00

$7.49

6

COLLAR

90387-06136-00

$7.49

7

BOLT, FLANGE

95822-06025-00

$1.75

8

WASHER, PLATE

90201-06078-00

$5.60

9

BULB, HEADLIGHT

4KB-84314-01-00

$38.99

10

HEADLIGHT UNIT ASSY

5TG-84310-03-00

$106.99

11

RIM, HEADLIGHT COVER 2

18P-84166-00-00

$18.49

12

SOCKET CORD ASSY 1

5TG-84340-01-00

$49.99

13

GROMMET 839774310000

90480-14023-00

$7.49

14

COLLAR

90387-06136-00

$7.49

15

BOLT, FLANGE

95822-06025-00

$1.75

16

WASHER, PLATE

90201-06078-00

$5.60
