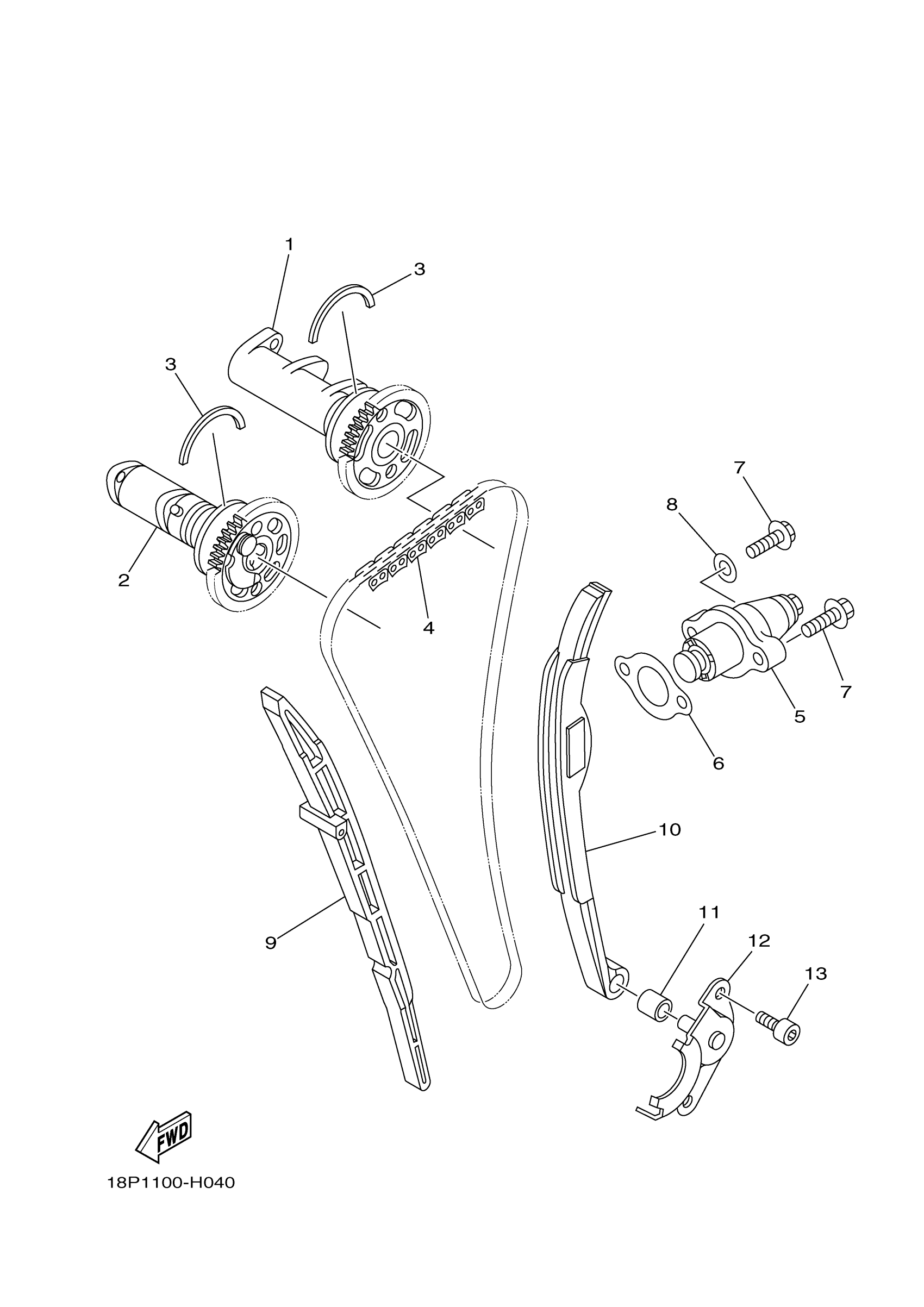

Yamaha YFZ450XZW (YFZ450X) 46D10 2010 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT ASSY 1

18P-12170-00-00

Unavailable

2

CAMSHAFT ASSY 2

18P-12180-00-00

$368.80

3

CIRCLIP

93440-41178-00

$3.18

4

CHAIN (98XRH2010-120M)

94591-57120-00

$29.63

5

TENSIONER ASSY, CAM CHAIN

5TA-12210-10-00

$111.71

6

GASKET, TENSIONER CASE

4FM-12213-00-00

$7.05

7

BOLT, FLANGE

95022-06025-00

$1.37

8

GASKET 256113960000

90430-06014-00

Unavailable

9

DAMPER, CHAIN 1

2S2-12251-00-00

$28.73

10

DAMPER, CHAIN 2

18P-12252-01-00

$57.70

11

COLLAR

90387-07030-00

$5.36

12

PLATE, GUIDE STOPPER 1

18P-12233-00-00

$31.42

13

BOLT (33M)

91312-06014-00

$4.43
