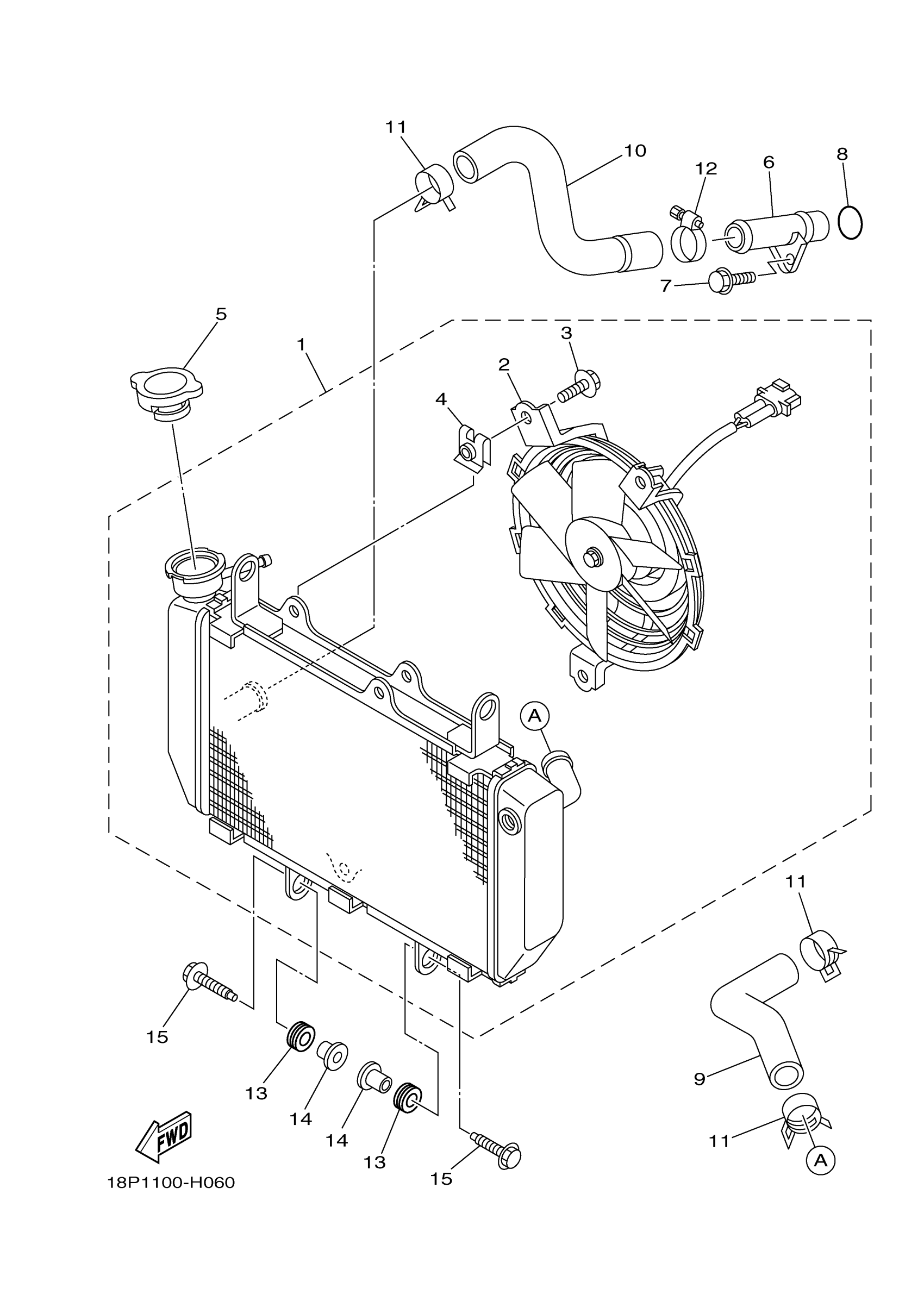

Yamaha YFZ450XSEA (YFZ450X SPECIAL EDITION) 46D6 2011 RADIATOR HOSE Diagram

#

Description
Price

1

RADIATOR ASSY

18P-1240A-00-00

Unavailable

2

BLOWER ASSY

18P-12405-00-00

Unavailable

3

BOLT, BLOWER HOLDING

2S3-12675-00-00

$6.29

4

NUT 1

18P-12671-00-00

$6.45

5

CAP, RADIATOR

5SL-12462-01-00

Unavailable

6

PIPE 1

5TG-12481-00-00

$22.12

7

BOLT, FLANGE

95022-06012-00

$2.80

8

O-RING (5U8)

93210-16500-00

$4.58

9

HOSE 1

18P-12576-00-00

$20.20

10

HOSE 2

18P-12577-00-00

$21.59

11

CLIP (10V)

90467-23067-00

$3.71

12

HOSE CLAMP ASSY

90450-32015-00

$14.22

13

GROMMET (1E6)

90480-15058-00

$5.75

14

COLLAR 437216330000

90387-07391-00

Unavailable

15

BOLT, WITH WASHER

90119-06181-00

$5.75
