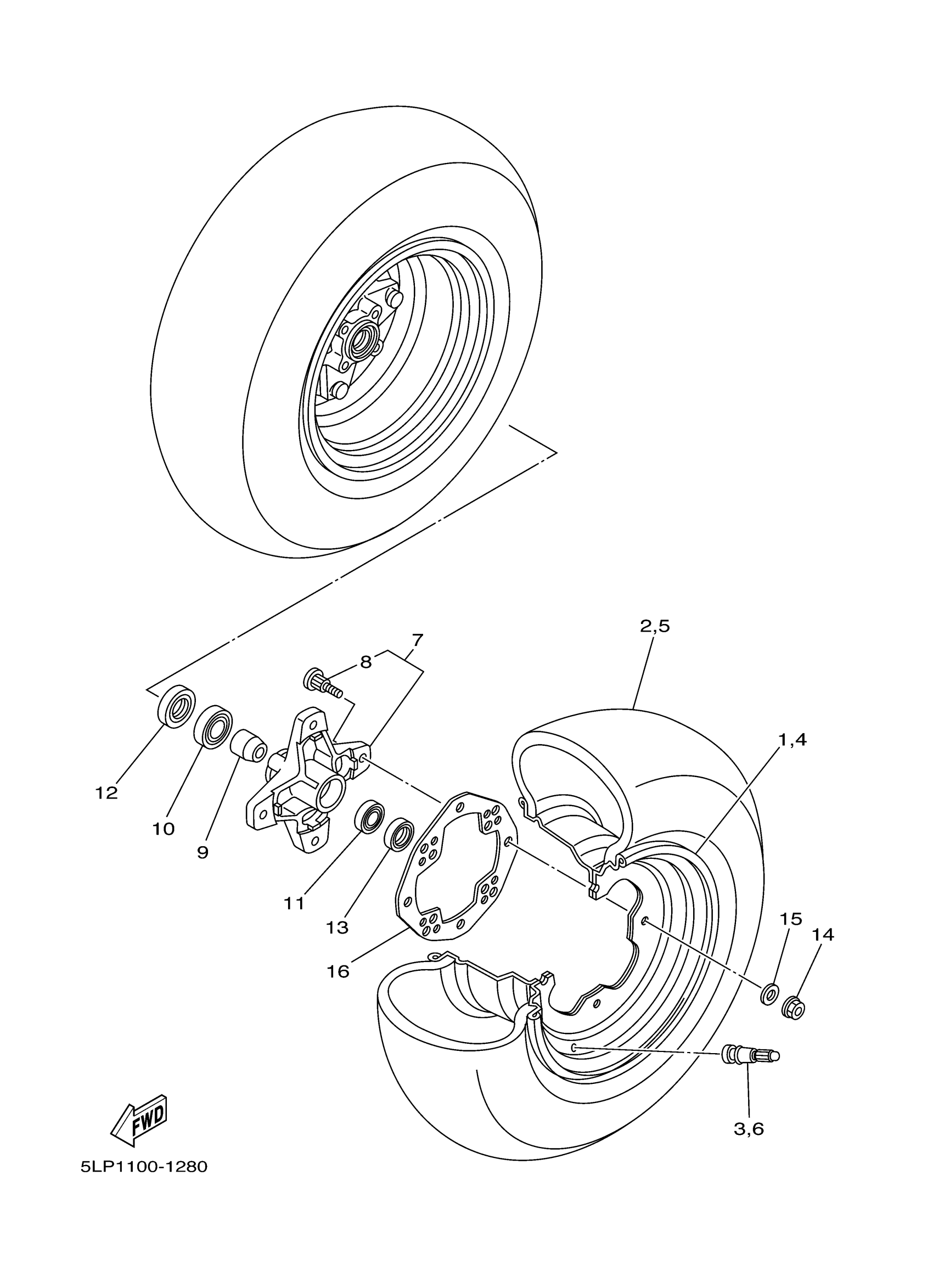

Yamaha YFZ450XL (YFZ450) 5D3B0 2008 FRONT WHEEL Diagram

#

Description
Price

1

WHEEL,FRONT

5LP-F5180-29-00

$238.79

2

TIRE (AT21X7R10 KT341 T/L N)

94107-10015-00

Unavailable

3

VALVE, RIM(2GH)

93900-00030-00

$13.50

4

WHEEL,FRONT

5LP-F5180-29-00

$238.79

5

TIRE (AT21X7R10 KT341 T/L N)

94107-10015-00

Unavailable

6

VALVE, RIM(2GH)

93900-00030-00

$13.50

7

HUB, FRONT

1PE-F5111-00-00

$124.89

8

BOLT, SERRATION

90114-10006-00

$4.81

9

SPACER, BEARING

5LP-25117-00-00

$14.07

10

BEARING

93306-00446-00

$34.51

11

. BEARING

93306-20231-00

$18.41

12

OIL SEAL(1UY)

93105-26026-00

$9.99

13

OIL SEAL (7H5)

93102-22216-00

$9.25

14

NUT, FLANGE(3BM)

95704-10500-00

$1.68

15

958-69527-00 WASHER, PLAIN

92990-10200-00

$2.67

16

COVER, PLATE

1S3-25127-01-00

$6.68
