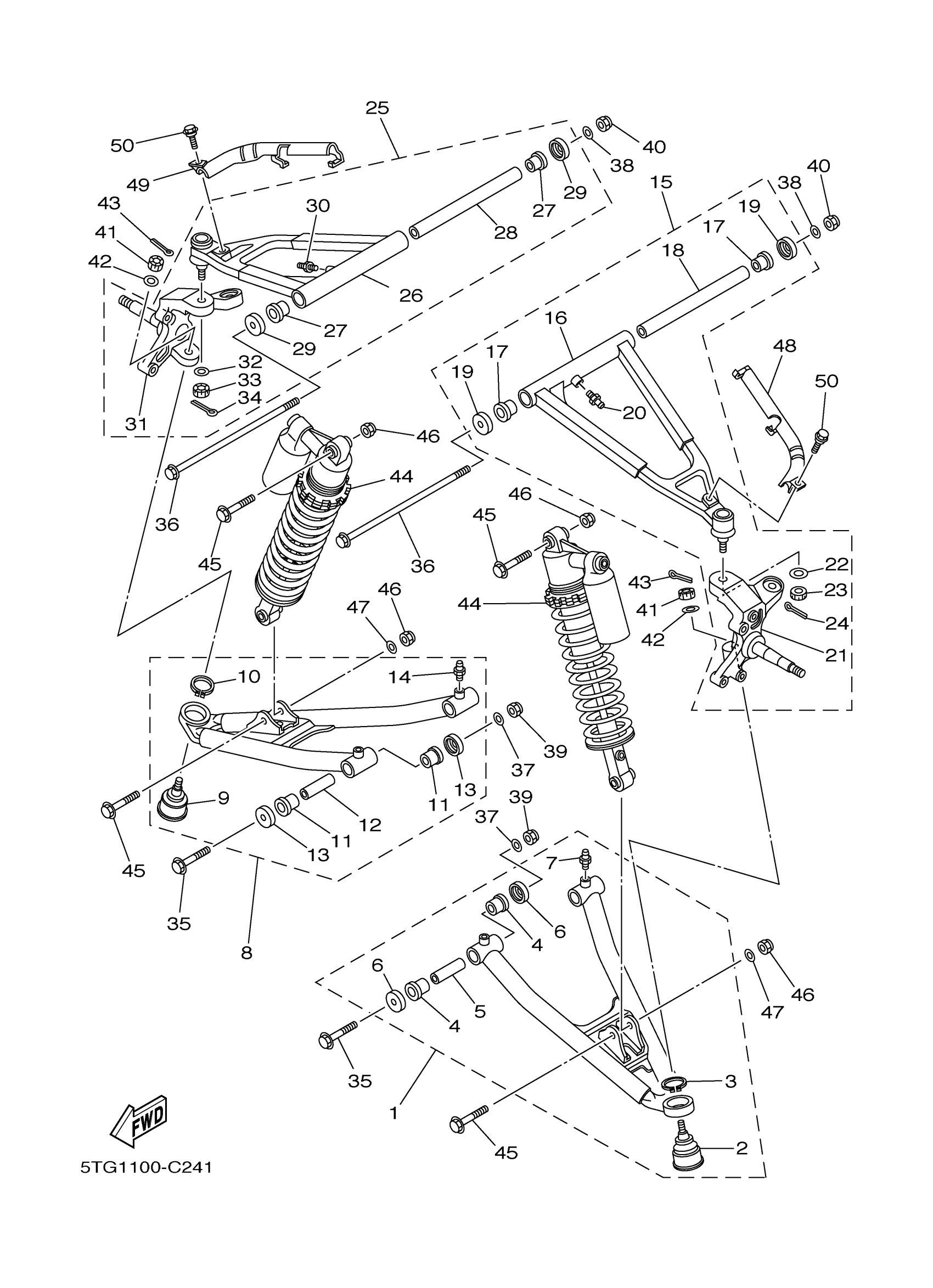

Yamaha YFZ450XL (YFZ450) 5D3B0 2008 FRONT SUSPENSION WHEEL Diagram

#

Description
Price

1

FRONT LOWER ARM SUB-ASSY (L.H)

5TG-23507-01-00

Unavailable

1

FRONT LOWER ARM SUB-ASSY (L.H)

5TG-23507-21-00

Unavailable

2

BALL JOINT

5LP-23579-00-00

$65.99

3

CIRCLIP(4A6)

99009-30400-00

$8.49

4

BUSH, SOLID(3GG)

90381-15088-00

$21.99

5

COLLAR(1UY)

90387-101R3-00

$19.99

6

COVER, THRUST 1

1UY-23517-01-00

$6.99

7

NIPPLE, GREASE

93700-06M03-00

Unavailable

8

FRONT LOWER ARM SUB-ASSY (R.H)

5TG-23508-01-00

$360.99

8

FRONT LOWER ARM SUB-ASSY (R.H)

5TG-23508-21-00

Unavailable

9

BALL JOINT

5LP-23579-00-00

$65.99

10

CIRCLIP(4A6)

99009-30400-00

$8.49

11

BUSH, SOLID(3GG)

90381-15088-00

$21.99

12

COLLAR(1UY)

90387-101R3-00

$19.99

13

COVER, THRUST 1

1UY-23517-01-00

$6.99

14

NIPPLE, GREASE

93700-06M03-00

Unavailable

15

FRONT UPPER ARM SUB ASSY LH

5TG-23505-21-00

Unavailable

15

FRONT UPPER ARM SUB ASSY LH

5TG-23505-32-00

Unavailable

16

FRONT UPPER ARM COMP. (LEFT)

5TG-23540-02-00

Unavailable

16

FRONT UPPER ARM COMP. (LEFT)

5TG-23540-22-00

Unavailable

17

BUSH, SOLID(3GG)

90381-15088-00

$21.99

18

COLLAR(3GG)

90387-100Y6-00

Unavailable

19

COVER, THRUST 1

1UY-23517-01-00

$6.99

20

NIPPLE, GREASE

93700-06M03-00

Unavailable

21

STEERING KNUCKLE ASSY (LEFT)

1S3-23501-01-00

Unavailable

22

WASHER (25G)

90209-10229-00

Unavailable

23

NUT, CASTLE

90171-10001-00

Unavailable

24

PIN, COTTER

91490-20025-00

Unavailable

25

FRONT UPPER ARM SUB ASSY RH

5TG-23506-20-00

Unavailable

25

FRONT UPPER ARM SUB ASSY RH

5TG-23506-32-00

Unavailable

26

FRONT UPPER ARM COMP. (RIGHT)

5TG-23550-02-00

Unavailable

26

FRONT UPPER ARM COMP. (RIGHT)

5TG-23550-22-00

Unavailable

27

BUSH, SOLID(3GG)

90381-15088-00

$21.99

28

COLLAR(3GG)

90387-100Y6-00

Unavailable

29

COVER, THRUST 1

1UY-23517-01-00

$6.99

30

NIPPLE, GREASE

93700-06M03-00

Unavailable

31

STEERING KNUCKLE ASSY (RIGHT)

1S3-23502-01-00

Unavailable

32

WASHER (25G)

90209-10229-00

Unavailable

33

NUT, CASTLE

90171-10001-00

Unavailable

34

PIN, COTTER

91490-20025-00

Unavailable

35

BOLT, FLANGE

90105-10135-00

Unavailable

36

BOLT, WASHER BASED(3GG)

90105-10651-00

Unavailable

37

WASHER, PLATE

90201-10037-00

Unavailable

38

WASHER, PLATE

90201-10037-00

Unavailable

39

NUT, SELF-LOCKING

90185-10012-00

Unavailable

40

NUT, SELF-LOCKING

90185-10012-00

Unavailable

41

NUT, CASTLE

90171-10001-00

Unavailable

42

WASHER (25G)

90209-10229-00

Unavailable

43

PIN, COTTER

91490-20025-00

Unavailable

44

SHOCK ABSORBER ASSY

5D3-23350-30-00

Unavailable

44

SHOCK ABSORBER ASSY

5D3-23350-70-00

Unavailable

45

BOLT, FLANGE

90105-10131-00

Unavailable

46

NUT, SELF-LOCKING

90185-10012-00

Unavailable

47

WASHER, PLATE

90201-10035-00

Unavailable

48

HOLDER, BRAKE HOSE 1

5TG-25875-00-00

Unavailable

49

HOLDER, BRAKE HOSE 2

5TG-25876-00-00

Unavailable

50

BOLT(4EW)

90109-067F4-00

Unavailable
