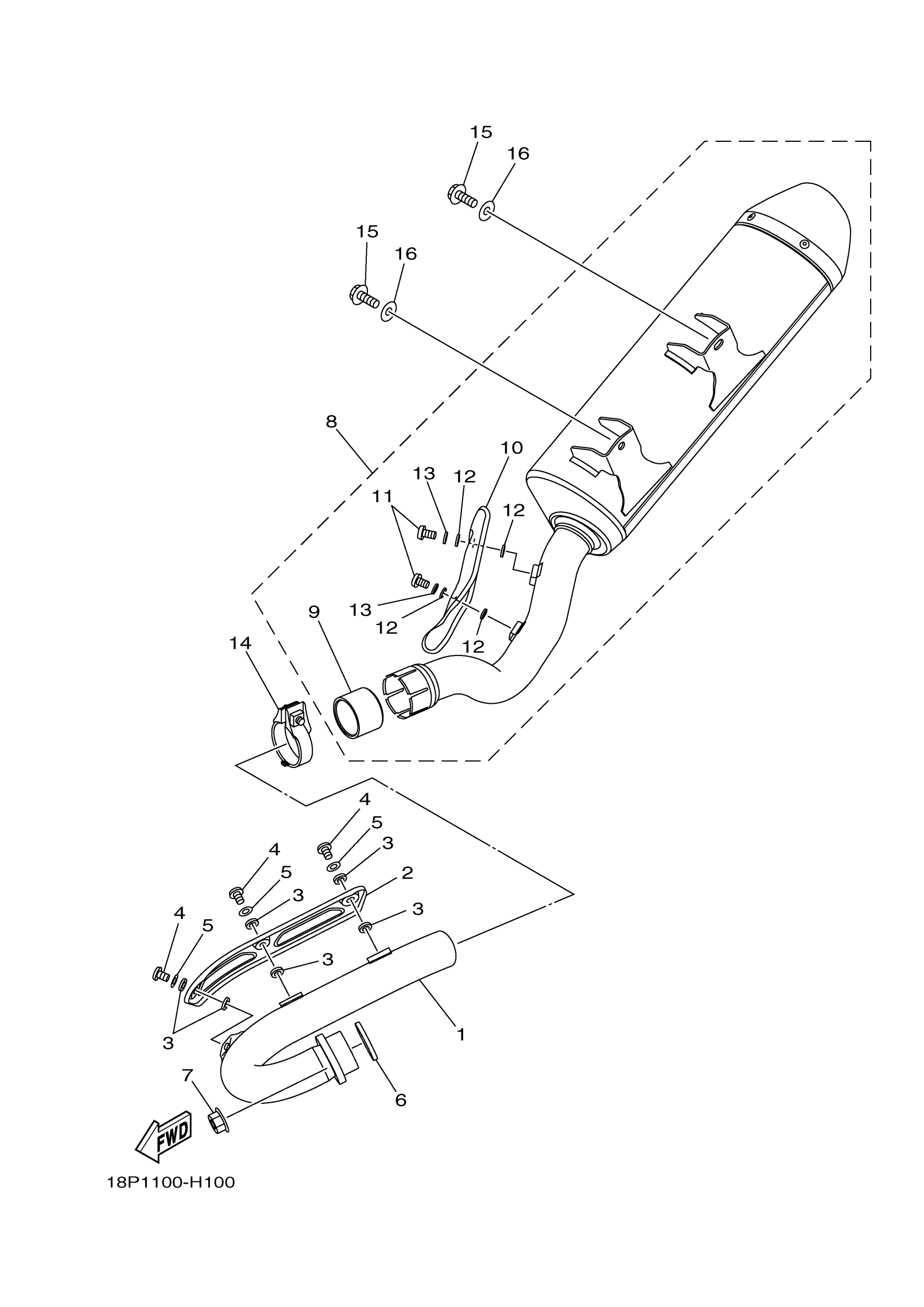

Yamaha YFZ450XAL (YFZ450X) 46D4 2011 EXHAUST Diagram

PIPE, EXHAUST 1

18P-14611-01-00

Unavailable

PROTECTOR, EXHAUST PIPE

18P-14628-00-00

$41.99

WASHER, PLATE

90201-05015-00

$8.49

SCREW, BIND(1JK)

98980-06010-00

$9.49

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

GASKET, EXHAUST PIPE

3VD-14613-01-00

$11.99

NUT,FLANGE(J10)

95702-08500-00

$1.43

MUFFLER ASSY 1

18P-14710-01-00

$536.99

GASKET, MUFFLER

8FA-14714-10-00

$41.99

PROTECTOR, MUFFLER 1

18P-14718-00-00

$38.99

SCREW, BIND(1JK)

98980-06010-00

$9.49

WASHER, PLATE

90201-05015-00

$8.49

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

BAND, SILENCER

5BE-14788-00-00

$35.99

BOLT, FLANGE

90105-08129-00

$4.88

WASHER, PLATE

90201-08048-00

Unavailable
