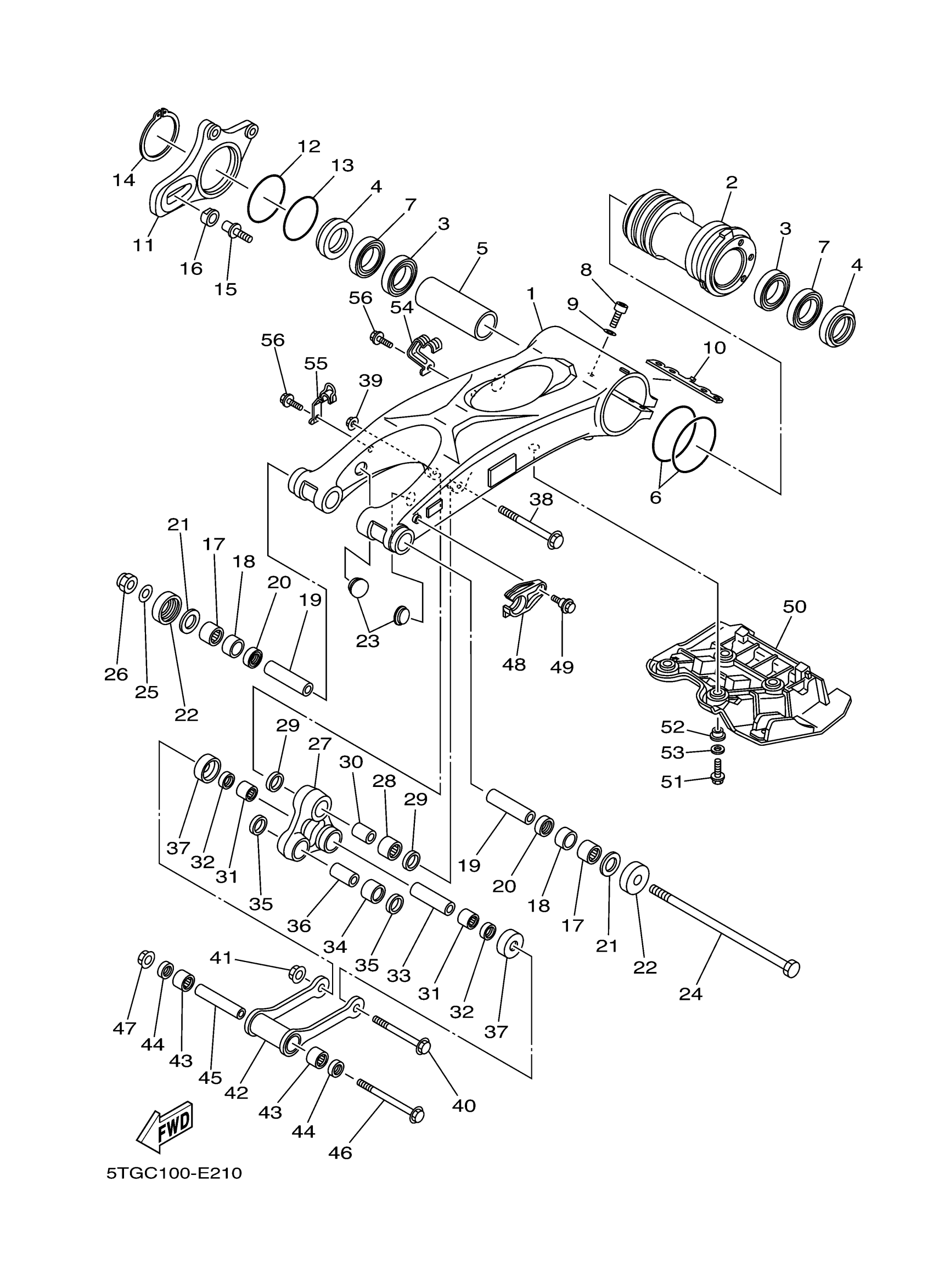

Yamaha YFZ450W (YFZ450) 5D31 2007 REAR ARM Diagram
#
9
.. WASHER, PLATE
92990-08600-00
Unavailable
16
COLLAR
90387-16014-00
Unavailable
17
BEARING, CYLINDRICAL (23X)
93317-32231-00
Unavailable
18
BUSH, SOLID (23X)
90380-22111-00
Unavailable
19
COLLAR(3LD)
90387-160W0-00
Unavailable
20
OIL SEAL (23X)
93106-22019-00
Unavailable
21
WASHER
3YF-22149-00-00
Unavailable
22
COVER, THRUST 2
4X7-22129-00-00
Unavailable
23
PLUG
90338-23004-00
Unavailable
24
SHAFT, PIVOT
5LP-22141-00-00
Unavailable
25
WASHER, PLATE
90201-16018-00
Unavailable
26
NUT, SELF-LOCKING
90185-16002-00
Unavailable
27
ARM, RELAY
5TG-2217A-10-00
Unavailable
28
BEARING, CYLINDRICAL(3MH)
93315-32057-00
Unavailable
29
OIL SEAL
93109-20001-00
Unavailable
30
COLLAR(1FN)
90387-123M3-00
Unavailable
31
BEARING
93315-31758-00
Unavailable
32
OIL SEAL
93109-17071-00
Unavailable
33
COLLAR
90387-12030-00
Unavailable
34
BEARING, CYLINDRICAL(4RR)
93315-32052-00
Unavailable
35
OIL SEAL
93109-20001-00
Unavailable
36
COLLAR
90387-12020-00
Unavailable
37
COVER, THRUST 1
5TG-22128-00-00
Unavailable
38
BOLT, FLANGE
90105-12038-00
Unavailable
39
NUT, SELF-LOCKING
90185-12002-00
Unavailable
40
BOLT, FLANGE
90105-12040-00
Unavailable
41
NUT, SELF-LOCKING
90185-12002-00
Unavailable
42
ROD, CONNECTING 1
5D3-2217F-00-00
Unavailable
43
BEARING
93315-31758-00
Unavailable
44
OIL SEAL
93109-17071-00
Unavailable
45
COLLAR
90387-12019-00
Unavailable
46
BOLT, FLANGE
90105-12039-00
Unavailable
47
NUT, SELF-LOCKING
90185-12002-00
Unavailable
48
SEAL, GUARD
5TG-22151-00-00
Unavailable
49
BOLT
90109-06172-00
Unavailable
50
GUARD SUB ASSY
5TG-22360-11-00
Unavailable
51
BOLT, FLANGE
95822-06025-00
Unavailable
52
COLLAR
90387-06151-00
Unavailable
53
WASHER, PLATE
90201-06088-00
Unavailable
54
HOLDER, BRAKE HOSE
5TG-25887-10-00
Unavailable
55
HOLDER, BRAKE HOSE
5TG-25886-10-00
Unavailable
56
BOLT, FLANGE
95022-06012-00
Unavailable
