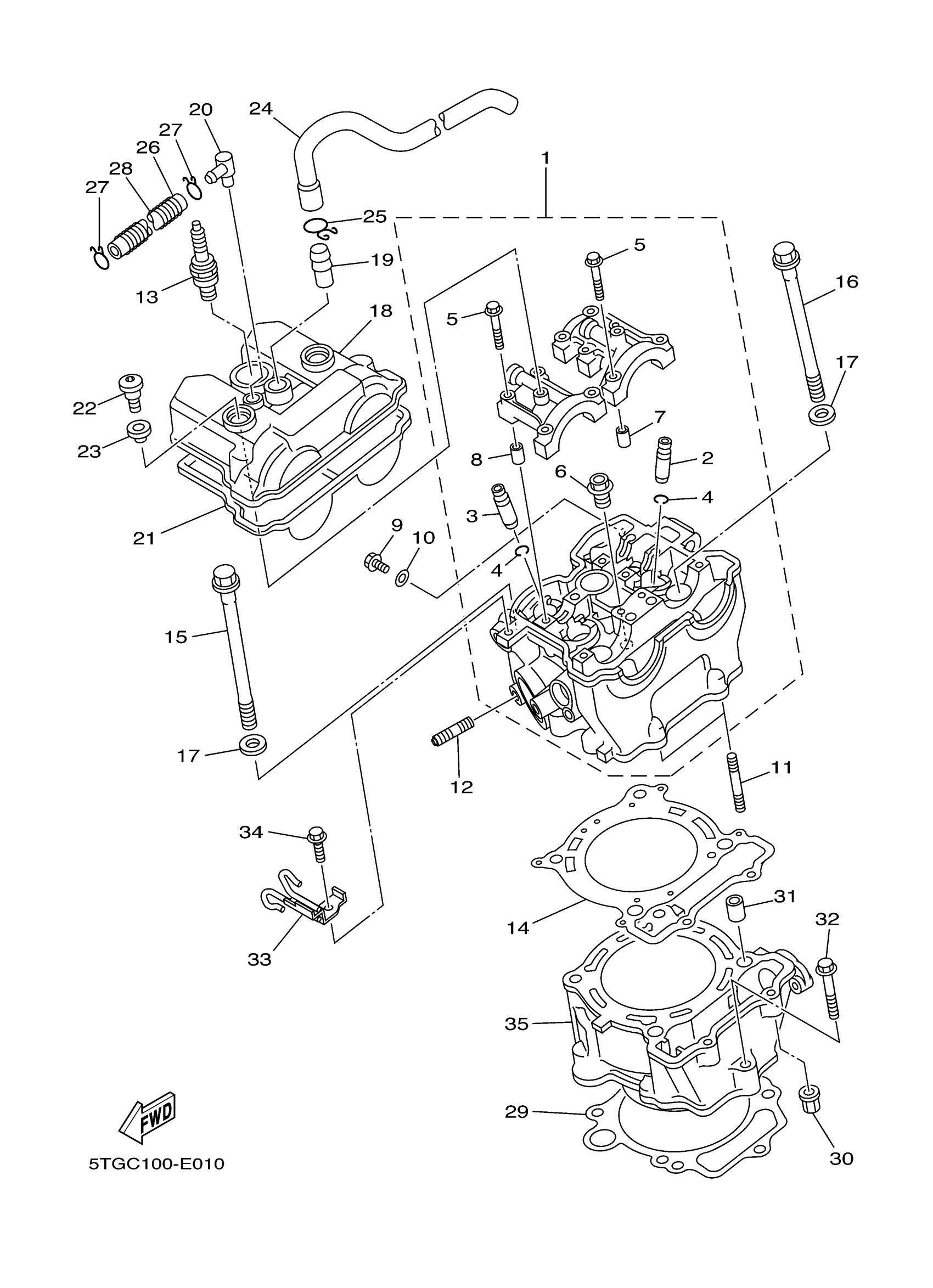

Yamaha YFZ450W (YFZ450) 5D31 2007 CYLINDER Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

5D3-11102-00-00

$1,472.99

2

GUIDE, INTAKE VALVE

5TA-11133-10-00

$53.99

3

GUIDE, EXHAUST VALVE

5TA-11134-10-00

$43.99

4

CIRCLIP(1WG)

93440-10153-00

$2.39

5

BOLT, WASHER BASED

90105-06027-00

$7.49

6

PLUG, STRAIGHT SCREW

90340-12007-00

$8.49

7

PIN, DOWEL(3XW)

91808-16023-00

$8.49

8

PIN, DOWEL(3XW)

91808-16023-00

$8.49

9

BOLT, FLANGE

95022-06010-00

$5.60

10

GASKET 256113960000

90430-06014-00

Unavailable

11

BOLT, STUD

95612-06635-00

$3.23

12

BOLT, STUD

90116-08022-00

$7.49

13

CR8E NGK SPLUG 4PK

CR8-E0000-00-00

Unavailable

14

GASKET, CYLINDER HEAD 1

5TA-11181-00-00

$74.99

15

BOLT, WASHER BASED

90105-104A7-00

$11.49

16

BOLT, WASHER BASED

90105-106A3-00

Unavailable

17

WASHER, PLATE

90201-10025-00

Unavailable

18

COVER, CYLINDER HEAD 1

5TG-11191-01-00

Unavailable

19

PIPE, BREATHER 2

371-11167-01-00

Unavailable

20

PIPE, BREATHER 2

5D3-11167-00-00

Unavailable

21

GASKET, HEAD COVER 1

5TA-11193-00-00

Unavailable

22

BOLT

90109-06203-00

Unavailable

23

RUBBER, MOUNT 1

5EA-1111G-00-00

Unavailable

24

PIPE, BREATHER 1

5TG-11166-00-00

Unavailable

25

CLIP

90467-140A4-00

Unavailable

26

HOSE (L370)

90445-112E1-00

Unavailable

27

CLIP

90467-110A3-00

Unavailable

28

SPRING, COMPRESSION

90501-080A5-00

Unavailable

29

GASKET, CYLINDER

5TA-11351-00-00

Unavailable

30

NUT

90179-06033-00

Unavailable

31

PIN, DOWEL(4XL)

93612-16254-00

Unavailable

32

BOLT, FLANGE

95022-06035-00

Unavailable

33

HOLDER

5D3-11395-00-00

Unavailable

34

BOLT, FLANGE

95812-06014-00

Unavailable

35

CYLINDER 1

5TA-11311-12-00

Unavailable
