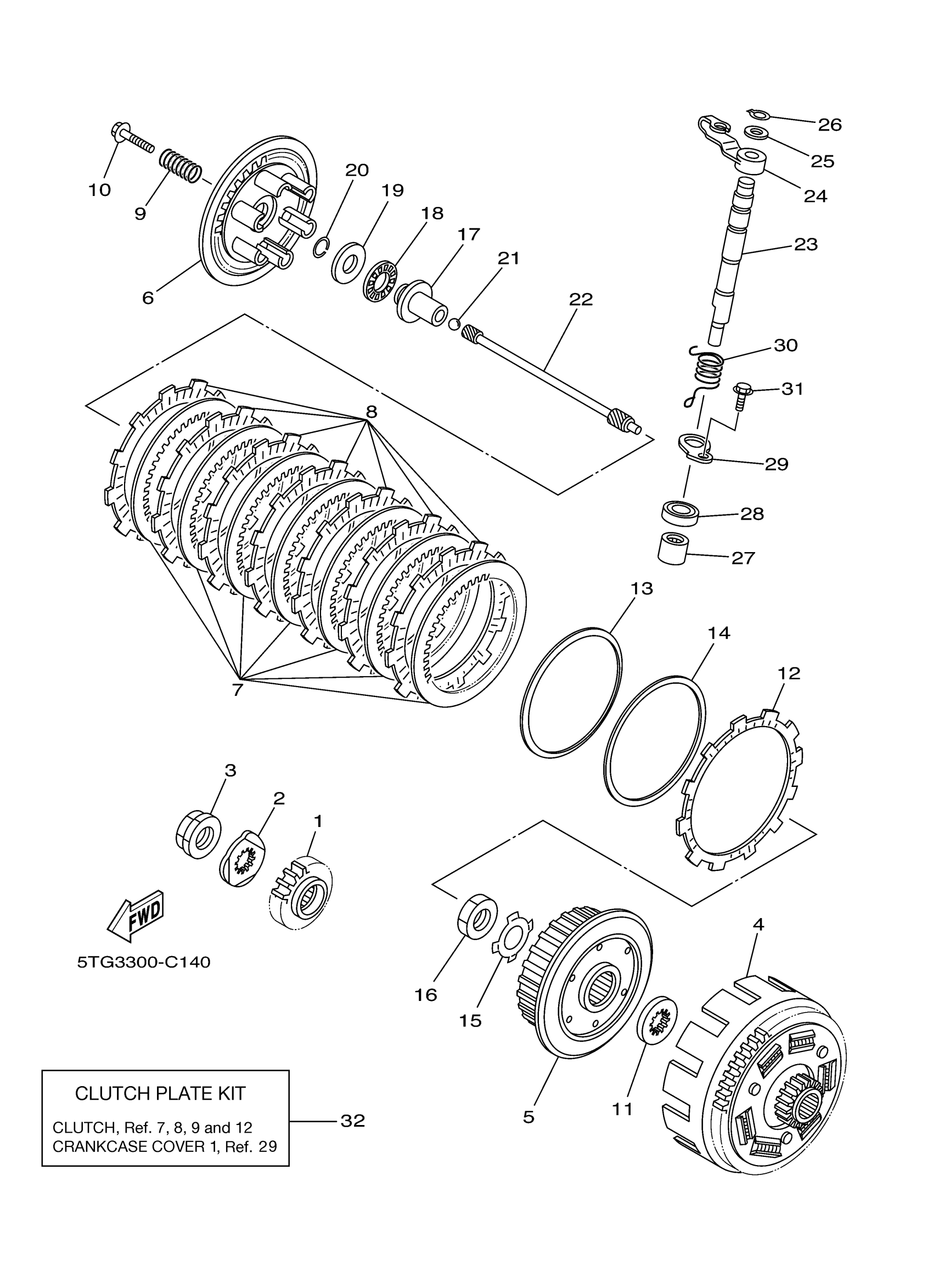

Yamaha YFZ450W (YFZ450) 5D31 2007 CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVE

5TG-16111-00-00

Unavailable

2

WASHER, LOCK

90215-21003-00

$8.49

3

NUT

90179-20001-00

$17.99

4

PRIMARY DRIVEN GEAR COMP.

5D3-16150-00-00

Unavailable

5

BOSS, CLUTCH

5TA-16371-20-00

$139.99

6

PLATE, PRESSURE 1

5TG-16351-00-00

$86.99

7

PLATE, CLUTCH 2

4X7-16325-10-00

$16.49

8

PLATE, FRICTION

5TA-16321-00-00

$25.99

9

SPRING, COMPRESSION(1UY)

90501-231E9-00

$11.49

10

SCREW, WITH WASHER (583)

90159-06010-00

$8.49

11

PLATE, THRUST 1

2JN-16154-00-00

$20.99

12

PLATE, FRICTION

5JG-16321-00-00

$33.99

13

SPRING, CLUTCH BOSS

5JG-16383-00-00

$43.99

14

PLATE, SEAT

5JG-16384-00-00

$42.99

15

WASHER, LOCK

90215-20005-00

$8.49

16

NUT (34L)

90170-20327-00

Unavailable

17

ROD, PUSH 1

5TG-16356-00-00

Unavailable

18

BEARING, THRUST (713)

93340-21505-00

Unavailable

19

WASHER, PLATE(1RE)

90201-125L6-00

Unavailable

20

CIRCLIP (4G0)

93440-10085-00

Unavailable

21

BALL (1M1)

93515-32029-00

Unavailable

22

ROD, PUSH 2

5TG-16357-00-00

Unavailable

23

AXLE, PUSH LEVER

5TG-16382-10-00

Unavailable

24

LEVER, PUSH

5TG-16342-00-00

Unavailable

25

WASHER, PLATE

90201-10032-00

Unavailable

26

CIRCLIP(10W)

99009-10400-00

Unavailable

27

BEARING

93317-11287-00

Unavailable

28

OIL SEAL (4G0)

93102-12224-00

Unavailable

29

PLATE, SEAT

5D3-16384-00-00

Unavailable

30

SPRING, TORSION

90508-16054-00

Unavailable

31

BOLT, FLANGE

95022-06012-00

Unavailable

32

CLUTCH PLATE KIT

5D3-W001G-00-00

Unavailable
