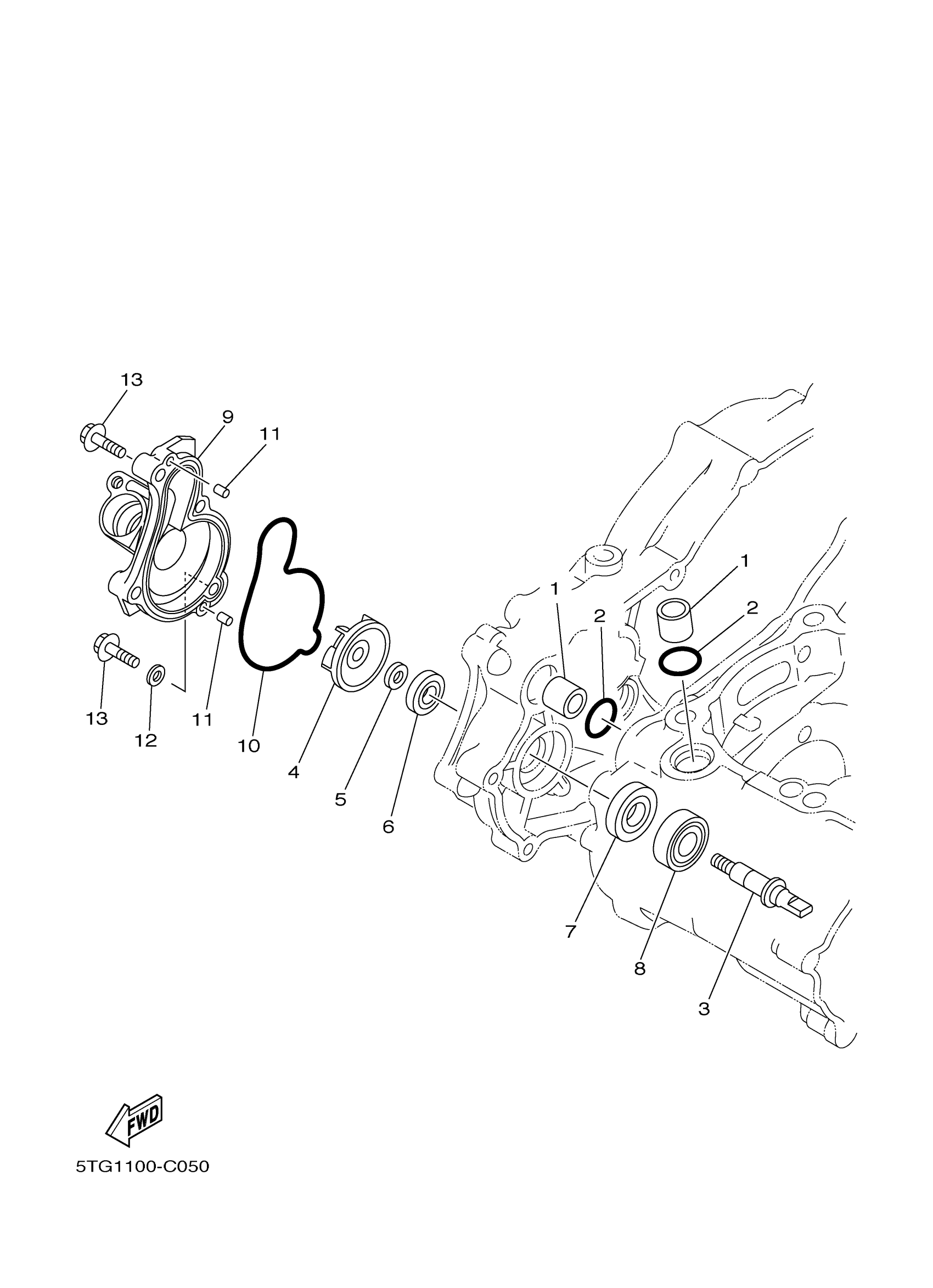

Yamaha YFZ450V (YFZ450V_BILL BALLANCE EDITION) 5TGC 2006 WATER PUMP Diagram

#

Description
Price

1

PIPE, WATER

5BE-12564-00-00

$8.13

2

O-RING(M01)

93210-19758-00

$5.31

3

SHAFT, IMPELLER

5GR-12458-00-00

$71.55

4

IMPELLER, WATER PUMP

5DJ-12451-00-00

$72.61

5

WASHER, PLATE (5F7)

90201-08512-00

$5.75

6

OIL SEAL

93102-11008-00

$8.98

7

OIL SEAL (12X22X5-371)

93102-12106-00

$9.45

8

BRG,R-B 6001 28MM 28G KY

93306-00105-00

$23.71

9

COVER, HOUSING

5TG-12422-00-00

$54.08

10

O-RING

5BE-12439-00-00

$16.18

11

PIN,DOWEL (603)

93604-10011-00

$4.89

12

GASKET 256113960000

90430-06014-00

Unavailable

13

BOLT, FLANGE(4AS)

95024-06030-00

$5.75
