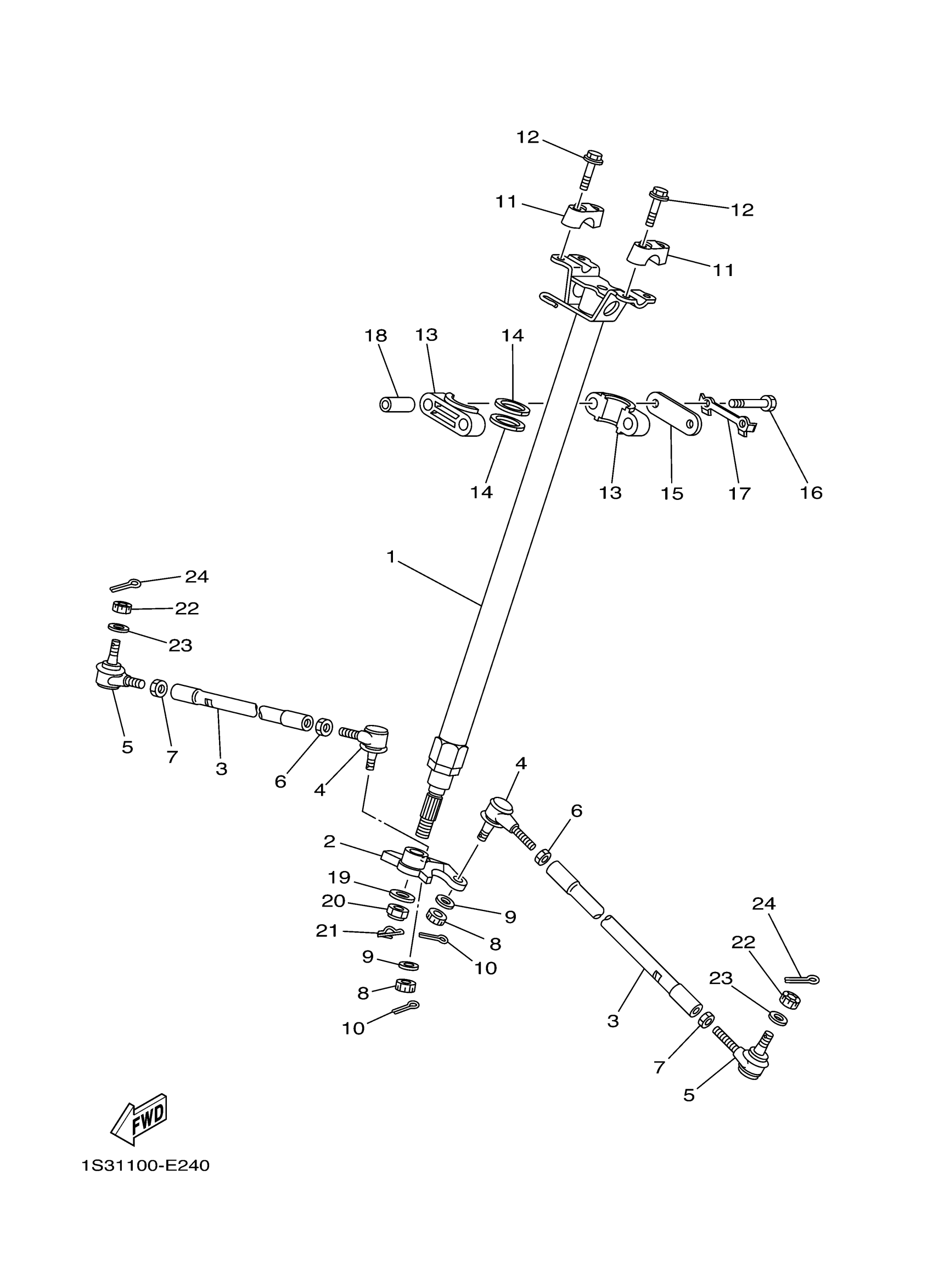

Yamaha YFZ450V (YFZ450V_BILL BALLANCE EDITION) 5TGC 2006 STEERING Diagram

#

Description
Price

1

COLUMN, STEERING 2

5TG-23813-10-00

$252.99

2

ARM, PITMAN

5TG-23816-10-00

$73.99

3

ROD, TIE

1S3-23831-00-00

$83.99

4

JOINT, UNIVERSAL 1

1S3-23841-00-00

$66.99

5

JOINT, UNIVERSAL 2

1S3-23845-00-00

Unavailable

6

NUT, HEXAGON SMALL

95317-12700-00

$8.49

7

NUT (821-23834-00)

90170-12054-00

$8.49

8

NUT, CASTLE

90171-10001-00

$7.49

9

WASHER (25G)

90209-10229-00

$7.49

10

PIN, COTTER

91490-20025-00

$1.99

11

HOLDER, HANDLE UPPER

1E6-23441-00-00

$27.99

12

BOLT, FLANGE(6TA)

95817-08030-00

$8.49

13

PLANE BEARING, STEERING

1UY-23812-00-00

$24.99

14

OIL SEAL(1UY)

93112-31011-00

$9.49

15

BRACKET, STEERING LOWER

3GD-23868-01-00

Unavailable

16

BOLT, HEXAGON

97017-08060-00

Unavailable

17

WASHER, LOCK 1

1UY-23894-01-00

Unavailable

18

COLLAR(85G)

90387-106T4-00

Unavailable

19

WASHER, PLATE

90201-14226-00

Unavailable

20

NUT, SELF-LOCKING (1J7)

90185-14070-00

Unavailable

21

CLIP(3YF)

90468-16191-00

Unavailable

22

NUT, CASTLE

90171-10001-00

$7.49

23

WASHER (25G)

90209-10229-00

$7.49

24

PIN, COTTER

91490-20025-00

$1.99
