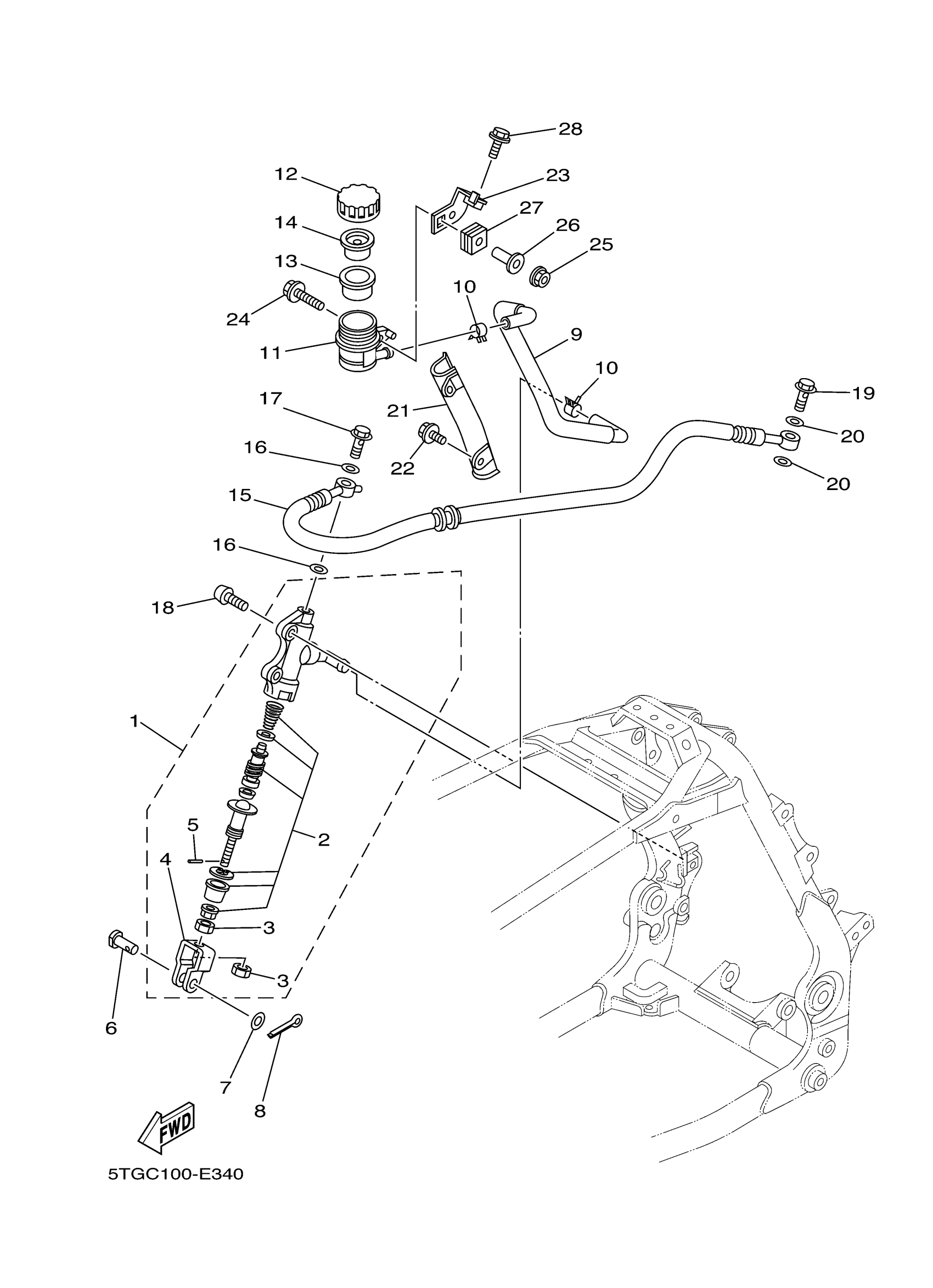

Yamaha YFZ450V (YFZ450V_BILL BALLANCE EDITION) 5TGC 2006 REAR MASTER CYLINDER Diagram

#

Description
Price

1

REAR MASTER CYLINDER ASSY

5TG-2580E-20-00

$128.18

2

CYLINDER KIT, MASTER

5TG-W0042-50-00

$66.97

3

NUT, HEXAGON SMALL

95317-08700-00

$6.57

4

JOINT

2YK-27222-00-00

$18.91

5

PIN, BRAKE ROD

3KW-27234-00-00

$6.33

6

PIN, CLEVIS(2YK)

90240-08124-00

$5.30

7

WASHER, PLATE 1562722600

90201-08083-00

$5.86

8

PIN, COTTER

91490-16020-00

$5.74

9

HOSE, RESERVOIR

5TG-25895-10-00

Unavailable

10

CLIP (7K7)

90467-11044-00

$4.89

11

TANK, RESERVOIR

5TG-25894-00-00

Unavailable

12

CAP, RESERVOIR

3XP-25852-50-00

$17.15

13

DIAPHRAGM, RESERVOIR

2VN-25854-00-00

$18.32

14

BUSH,DIAPHRAGM

2VN-25855-00-00

$8.88

15

HOSE, BRAKE

5TG-25874-30-00

Unavailable

16

WASHER, PLATE(481)

90201-10118-00

Unavailable

17

BOLT, UNION(3GM)

90401-10159-00

Unavailable

18

BOLT, BUTTON HEAD

92012-08025-00

Unavailable

19

BOLT, UNION(3GM)

90401-10159-00

Unavailable

20

WASHER, PLATE(481)

90201-10118-00

Unavailable

21

HOLDER, BRAKE HOSE

5TG-2587A-00-00

Unavailable

22

BOLT, FLANGE

95022-06010-00

Unavailable

23

BRACKET, RESERVE TANK

5TG-21228-10-00

Unavailable

24

BOLT, WASHER BASED(7H6)

90105-05331-00

Unavailable

25

NUT, S/L FLANGE

95607-05200-00

Unavailable

26

COLLAR

90387-05016-00

Unavailable

27

GROMMET

90480-10011-00

Unavailable

28

BOLT, FLANGE

95817-06012-00

Unavailable
