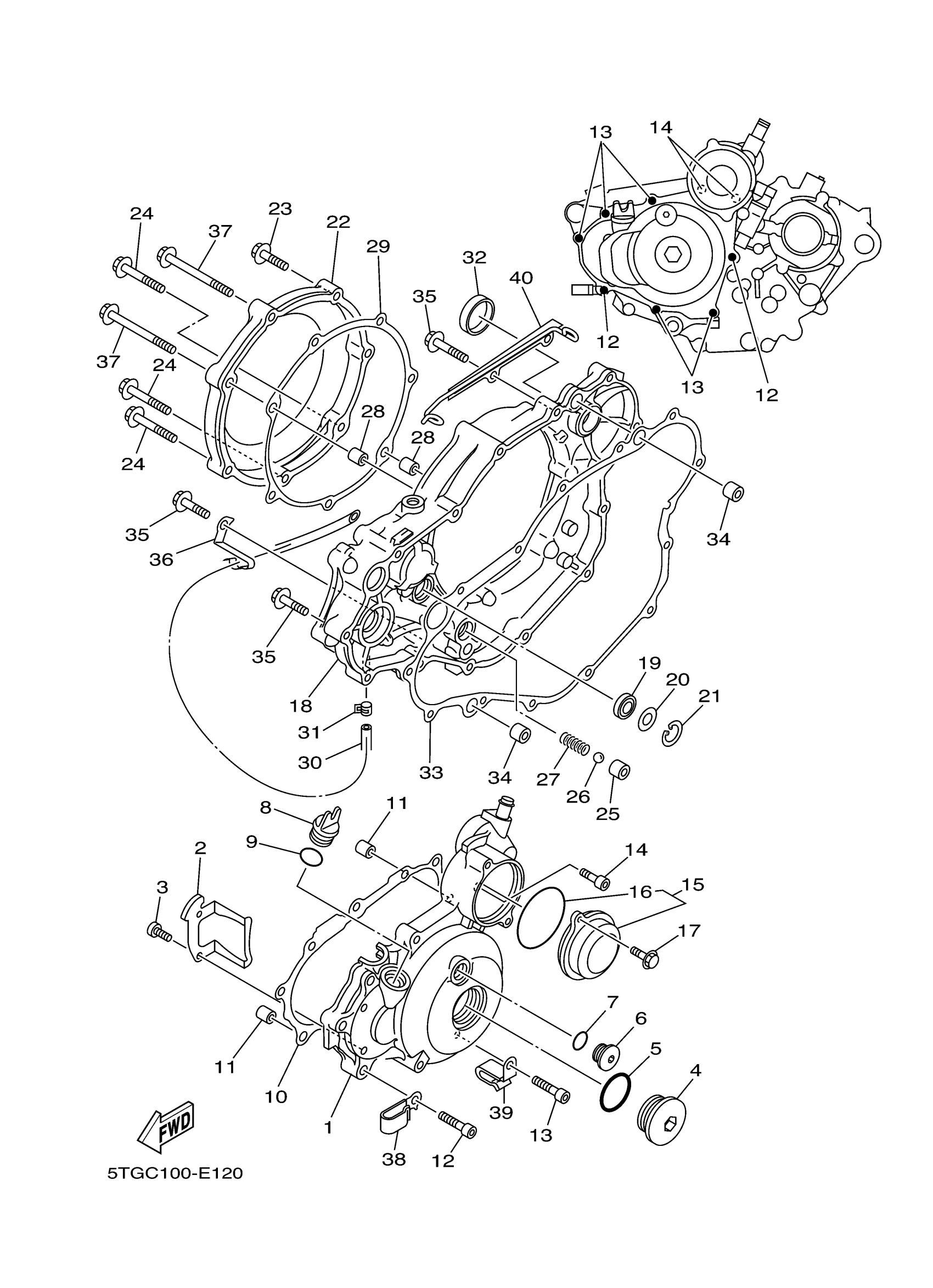

Yamaha YFZ450V (YFZ450V_BILL BALLANCE EDITION) 5TGC 2006 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

5TG-15411-10-00

Unavailable

2

CLAMP

90465-10017-00

Unavailable

3

BOLT, SOCKET

91317-05012-00

$2.55

4

PLUG, STRAIGHT SCREW

90340-27003-00

$33.99

5

O-RING(1KT)

93210-27778-00

$8.49

6

PLUG, STRAIGHT SCREW

90340-14003-00

$32.99

7

O-RING (2H9)

93210-14369-00

$7.49

8

PLUG, OIL

3Y1-15363-10-00

$18.49

9

O-RING (646)

93210-19123-00

Unavailable

10

GASKET, CRANKCASE COVER 1

5TG-15451-00-00

$14.49

11

PIN, DOWEL(3XW)

91808-16023-00

$8.49

12

BOLT, SOCKET

91314-06040-00

$8.49

13

BOLT, SOCKET

91314-06030-00

$8.49

14

BOLT,SOCKET HEAD

91314-06020-00

$1.49

15

COVER ASSY 2

5TG-1549B-10-00

Unavailable

16

O-RING (4H7)

93210-60426-00

Unavailable

17

BOLT, FLANGE(2UJ)

95024-06016-00

Unavailable

18

COVER, CRANKCASE 3

5TG-15431-10-00

Unavailable

19

OIL SEAL(4GY)

93101-14164-00

Unavailable

20

WASHER (566)

90201-15701-00

Unavailable

21

CIRCLIP

99009-22500-00

Unavailable

22

COVER, GENERATOR

5TG-15415-00-00

Unavailable

23

BOLT, FLANGE(4AS)

95024-06030-00

Unavailable

24

BOLT, FLANGE(4KM)

95024-06040-00

Unavailable

25

SEAT, CHECK BALL

583-13113-00-00

Unavailable

26

BALL

93503-08007-00

Unavailable

27

SPRING, COMPRESSION(1VJ)

90501-043E0-00

Unavailable

28

PIN, DOWEL(3XW)

91808-16023-00

$8.49

29

GASKET

5TA-15453-00-00

Unavailable

30

HOSE (L1050)

90445-072G8-00

Unavailable

31

CLIP(42X)

90467-07093-00

Unavailable

32

PLUG (3L3)

90338-30096-00

Unavailable

33

GASKET, CRANKCASE COVER 3

5TG-15462-02-00

Unavailable

34

PIN, DOWEL(J38)

91812-16001-00

Unavailable

35

BOLT, FLANGE(4AS)

95024-06030-00

Unavailable

36

CLAMP

90462-08049-00

Unavailable

37

BOLT, FLANGE

95024-06080-00

Unavailable

38

CLAMP

90462-08044-00

Unavailable

39

CLAMP

90462-10025-00

Unavailable

40

CLAMP 2

5TG-15484-10-00

Unavailable
