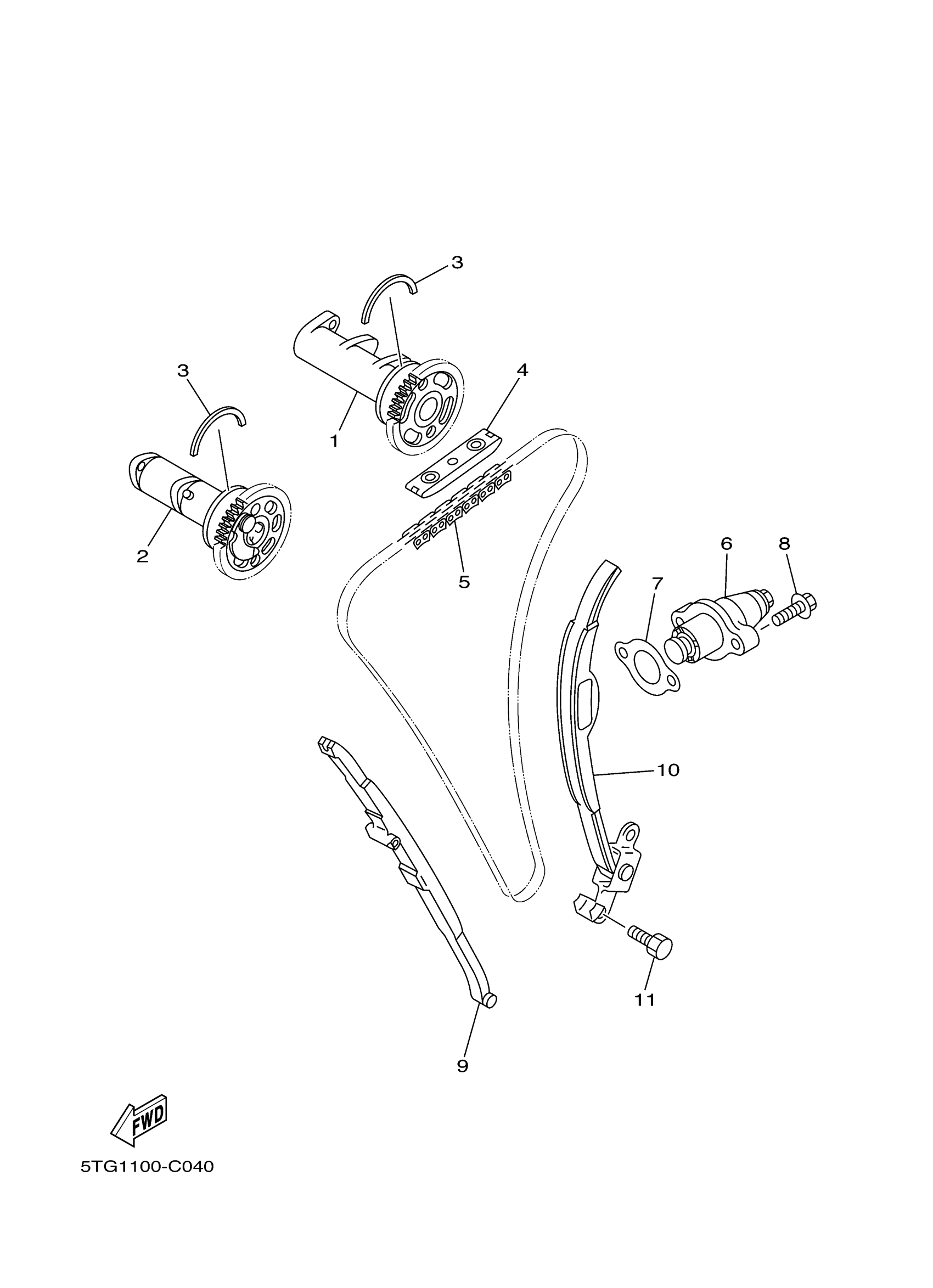

Yamaha YFZ450V (YFZ450V_BILL BALLANCE EDITION) 5TGC 2006 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT ASSY 1

5TA-12170-10-00

$247.66

2

CAMSHAFT ASSY 2

5TG-12180-20-00

$359.06

3

CIRCLIP

93440-41178-00

$3.18

4

GUIDE, STOPPER 2

5BE-12241-01-00

$23.85

5

CHAIN

94591-57118-00

$29.63

6

TENSIONER ASSY, CAM CHAIN

5TA-12210-10-00

$111.71

7

GASKET, TENSIONER CASE

4FM-12213-00-00

$7.05

8

BOLT, FLANGE(4KG)

95024-06025-00

$2.45

9

DAMPER, CHAIN 1

5TA-12251-02-00

Unavailable

10

DAMPER, CHAIN 2

5TA-12252-01-00

Unavailable

11

BOLT, STOPPER

5TG-12299-00-00

Unavailable
